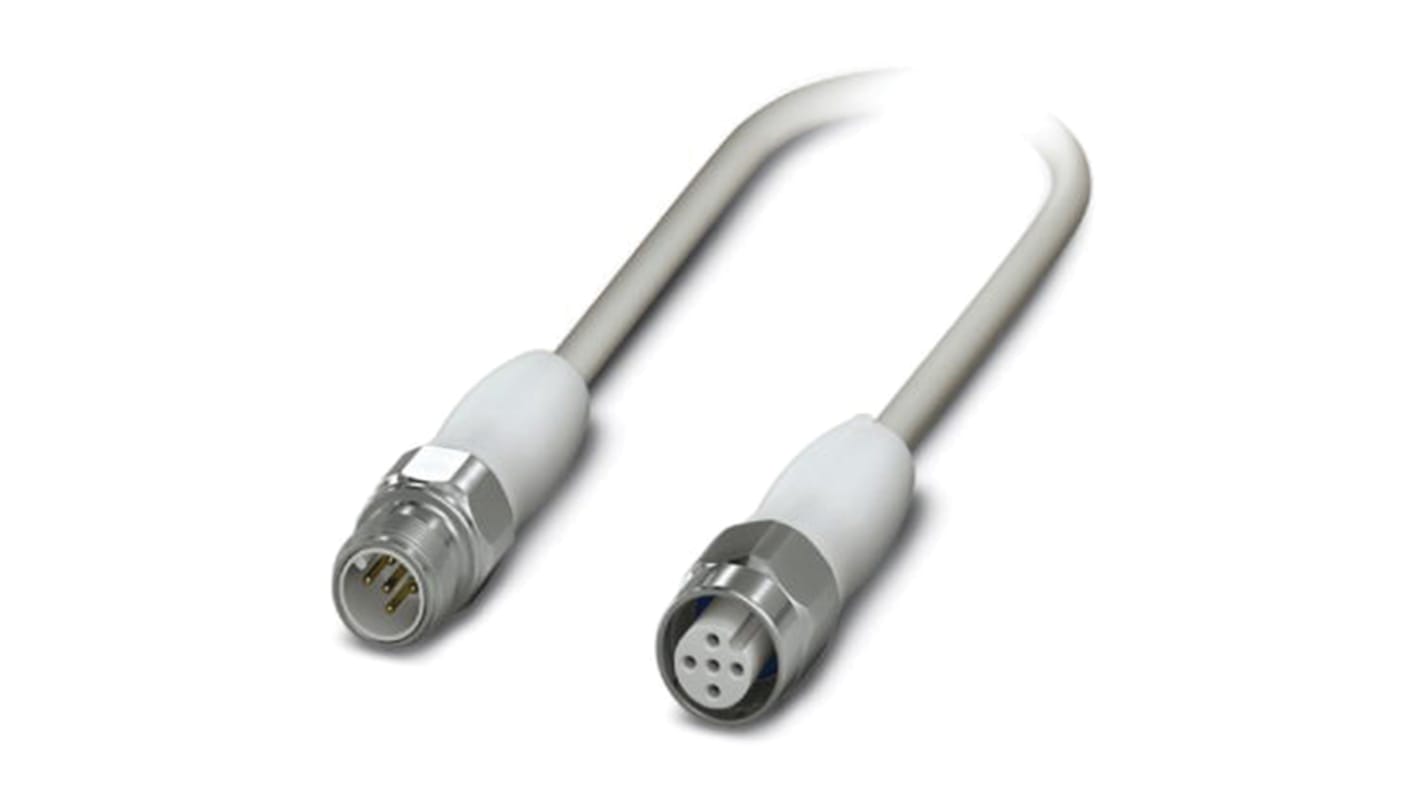

Phoenix Contact Male 5 way M12 to Female 5 way M12 Sensor Actuator Cable, 600mm
- RS Stock No.:
- 861-3291
- Mfr. Part No.:
- 1404064
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£21.38
(exc. VAT)
£25.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.38 |
*price indicative
- RS Stock No.:
- 861-3291
- Mfr. Part No.:
- 1404064
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 5 | |
| Cross Sectional Area | (Signal Line) 5x 0.34 mm² | |
| Length | 600mm | |
| Sheath Material | PP | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 5 | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 | |
| Connector 2 Housing Gender | Male | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 60 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 22 AWG | |
| Conductor Material | Bare Cu litz wires | |
| Minimum Bend Radius | 10 x D (Flexible) 5 x D (Fixed) | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 5 | ||
Cross Sectional Area (Signal Line) 5x 0.34 mm² | ||
Length 600mm | ||
Sheath Material PP | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 5 | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Gender Female | ||
Connector 2 M12 | ||
Connector 2 Housing Gender Male | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 60 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 22 AWG | ||
Conductor Material Bare Cu litz wires | ||
Minimum Bend Radius 10 x D (Flexible) 5 x D (Fixed) | ||
- COO (Country of Origin):
- PL
Sensor/actuator cable, 5-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 0.6 m, Hygienic design, with high-grade steel knurl
Easy and safe: 100% electrically tested plug-in components
Contamination can be detected quickly – thanks to the light color
Corrosion protection for all exposed metal parts, thanks to the use of stainless steel type 1.4404
Easy to clean, thanks to the special hygienic design
