Phoenix Contact Female 4 way M8 to Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 861-3272
- Mfr. Part No.:
- 1406850
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£11.25
(exc. VAT)
£13.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.25 |
*price indicative
- RS Stock No.:
- 861-3272
- Mfr. Part No.:
- 1406850
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 4 | |
| Cross Sectional Area | (Signal Line) 4x 0.25 mm² | |
| Length | 1.5m | |
| Connector 1 | M8 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Voltage Rating | 24 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Conductor Material | Bare Cu litz wires | |
| Minimum Bend Radius | 10 x D (Flexible) 5 x D (Fixed) | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 24 AWG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 4 | ||
Cross Sectional Area (Signal Line) 4x 0.25 mm² | ||
Length 1.5m | ||
Connector 1 M8 | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Voltage Rating 24 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Conductor Material Bare Cu litz wires | ||
Minimum Bend Radius 10 x D (Flexible) 5 x D (Fixed) | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 24 AWG | ||
- COO (Country of Origin):
- PL

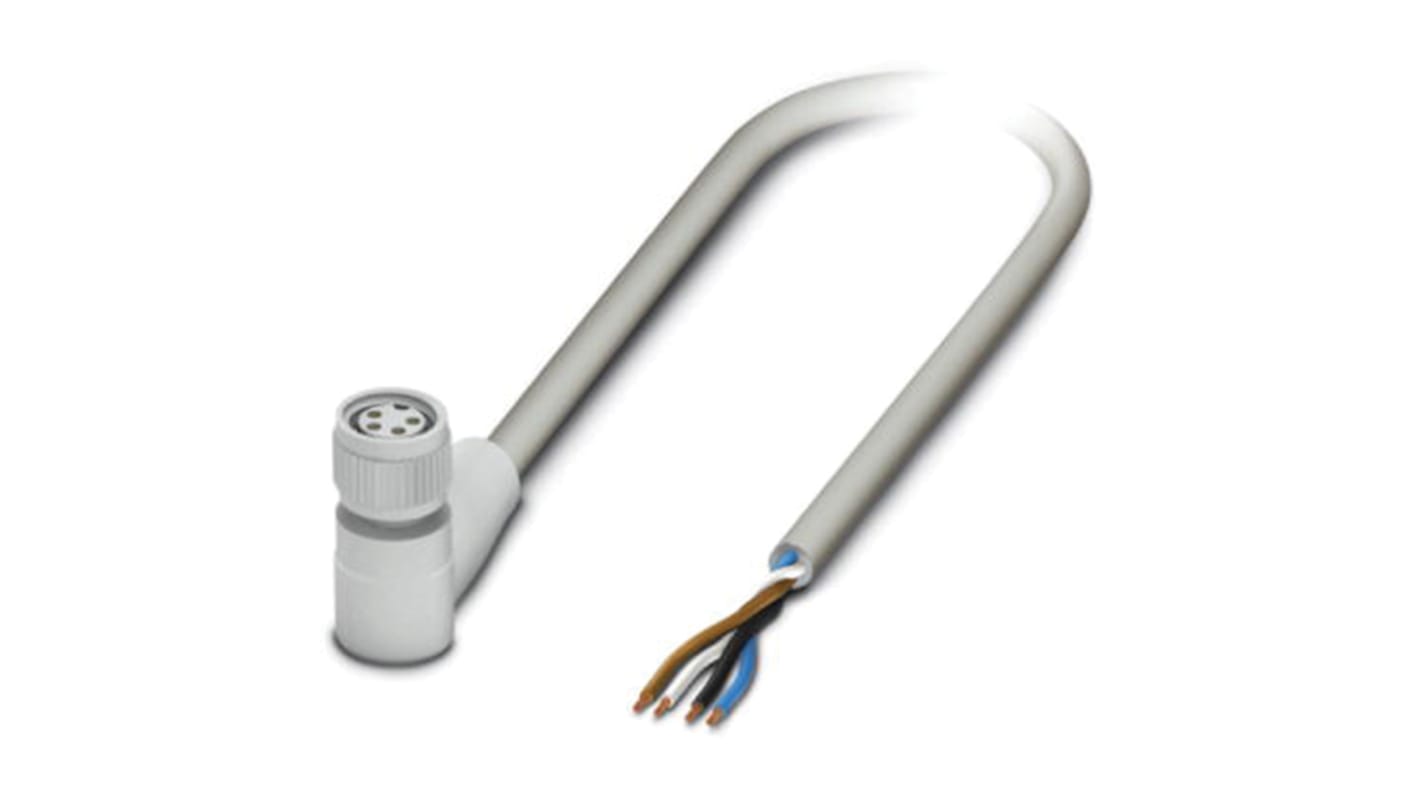

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, free cable end, on Socket angled M8, cable length: 1.5 m, Hygienic design, with plastic knurl
Easy and safe: 100% electrically tested plug-in components
Contamination can be detected quickly – thanks to the light color
Easy to clean, thanks to the special hygienic design
