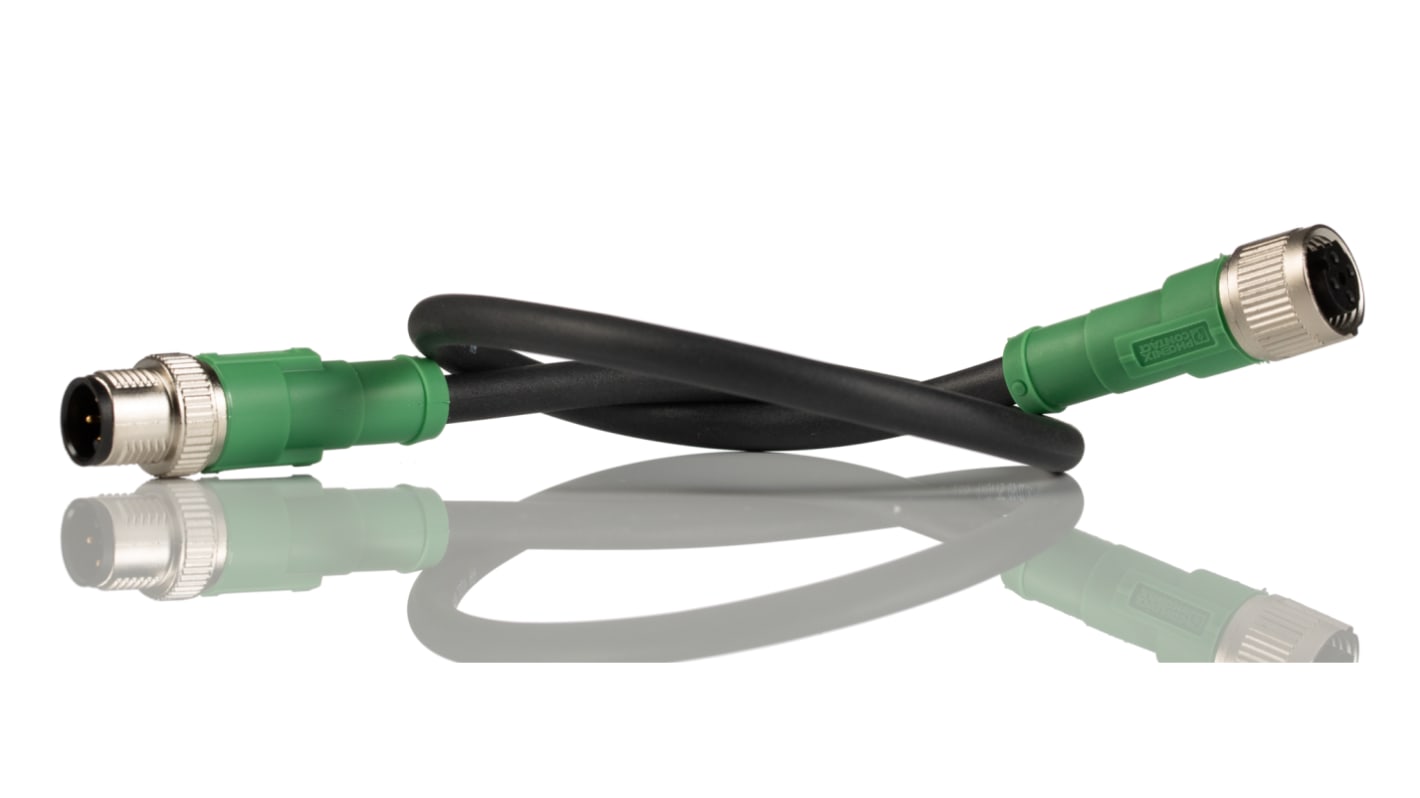

Phoenix Contact Male 4 way M12 to Female 4 way M12 Sensor Actuator Cable, 300mm
- RS Stock No.:
- 861-3020
- Mfr. Part No.:
- 1555680
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£18.81
(exc. VAT)
£22.57
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 629 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £18.81 |
*price indicative
- RS Stock No.:
- 861-3020
- Mfr. Part No.:
- 1555680
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Cross Sectional Area | (Power Line) 4x 0.75 mm² | |
| Number of Cores | 4 | |
| Length | 300mm | |
| Sheath Material | PUR | |
| Sheath Colour | Black/Grey | |
| Connector 1 | M12 | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 | M12 | |
| Connector 2 Number of Contacts | 4 | |
| Connector 2 Gender | Female | |
| Connector 2 Housing Gender | Female | |
| Coding | A | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67 | |
| Minimum Bend Radius | 59 mm | |
| Conductor Material | Bare Cu litz wires | |
| Connector 1 Housing Gender | Male | |
| American Wire Gauge | 18 AWG | |
| Outer Diameter | 5.9 mm ±0.15mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area (Power Line) 4x 0.75 mm² | ||
Number of Cores 4 | ||
Length 300mm | ||
Sheath Material PUR | ||
Sheath Colour Black/Grey | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 M12 | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 Gender Female | ||
Connector 2 Housing Gender Female | ||
Coding A | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
Minimum Bend Radius 59 mm | ||
Conductor Material Bare Cu litz wires | ||
Connector 1 Housing Gender Male | ||
American Wire Gauge 18 AWG | ||
Outer Diameter 5.9 mm ±0.15mm | ||
- COO (Country of Origin):
- PL
Phoenix Contact Sensor Actuator Cable, 300mm Length, 250V Voltage Rating - SAC-4P-MS/ 0,3-186/FS SCO - 1555680
Reliably transfer signals to your automation equipment with this sensor actuator cable from Phoenix Contact. It features one male M12 connector and one female M12 connector to make an easy link to compatible devices. The bare copper Litz conductors ensure high conductivity, giving you a stable connection. Inside, the four cores are twisted to help reduce EMI and support clear signal transmission.
Thanks to its PUR outer sheath, the cable is resistant to abrasion and wear for durability in harsh environments. A minimum bending radius of 59mm means it's flexible, making it easy to install around corners and in tight spaces. Its short length of 0.3m helps to reduce clutter in your setup. You'll find components like this one frequently used with industrial production machinery.
Thanks to its PUR outer sheath, the cable is resistant to abrasion and wear for durability in harsh environments. A minimum bending radius of 59mm means it's flexible, making it easy to install around corners and in tight spaces. Its short length of 0.3m helps to reduce clutter in your setup. You'll find components like this one frequently used with industrial production machinery.
Features & Benefits
• PVC insulation for protection against electric shocks
• Light weight of 34.9g to put minimal strain on your equipment
• Flammability rating of UL94 HB means it's self-extinguishing for safety in the event of a fire
• Voltage rating of 250V for use in low-voltage applications
• Light weight of 34.9g to put minimal strain on your equipment
• Flammability rating of UL94 HB means it's self-extinguishing for safety in the event of a fire
• Voltage rating of 250V for use in low-voltage applications
