Phoenix Contact Right Angle Female 4 way M8 to Sensor Actuator Cable, 10m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£33.85

(exc. VAT)

£40.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£33.85

*price indicative

Sensor & Actuator cables to Sensor Accessories
Complete Your Connection with the Right Accessories
Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.
Shop Now
RS Stock No.:
859-5250
Mfr. Part No.:
1521999
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SAC-4P

Number of Cores

4

Cross Sectional Area

0.25 mm²

Sheath Colour

Black/Grey

Length

10m

Sheath Material

PUR

Connector 1

M8

Connector 1 Number of Contacts

4

Connector 1 Orientation

Right Angle

Connector 1 Gender

Female

Coding

A

Shielding

Copper Braid

Shielded/Unshielded

Shielded

Voltage Rating

30 V

Current Rating

4 A

IP Rating

IP65, IP67

Conductor Material

Bare Cu litz wires

Maximum Operating Temperature

+80°C

Oil Resistant

Yes

Minimum Operating Temperature

-5 (Flexible) °C, -25 (Fixed) °C

Connector 1 Housing Gender

Female

American Wire Gauge

24 AWG

Conductor Resistance

78 O/km

Outer Diameter

5mm

Insulation Material

PP

Fire Behaviour

Halogen Free

Cable Shape

Twisted Pair

Standards Met

cUL, cULus, EAC, IEC 61076-2-104, UL

Minimum Bend Radius

25 mm (Fixed), 50 mm (Movable)

COO (Country of Origin):
PL

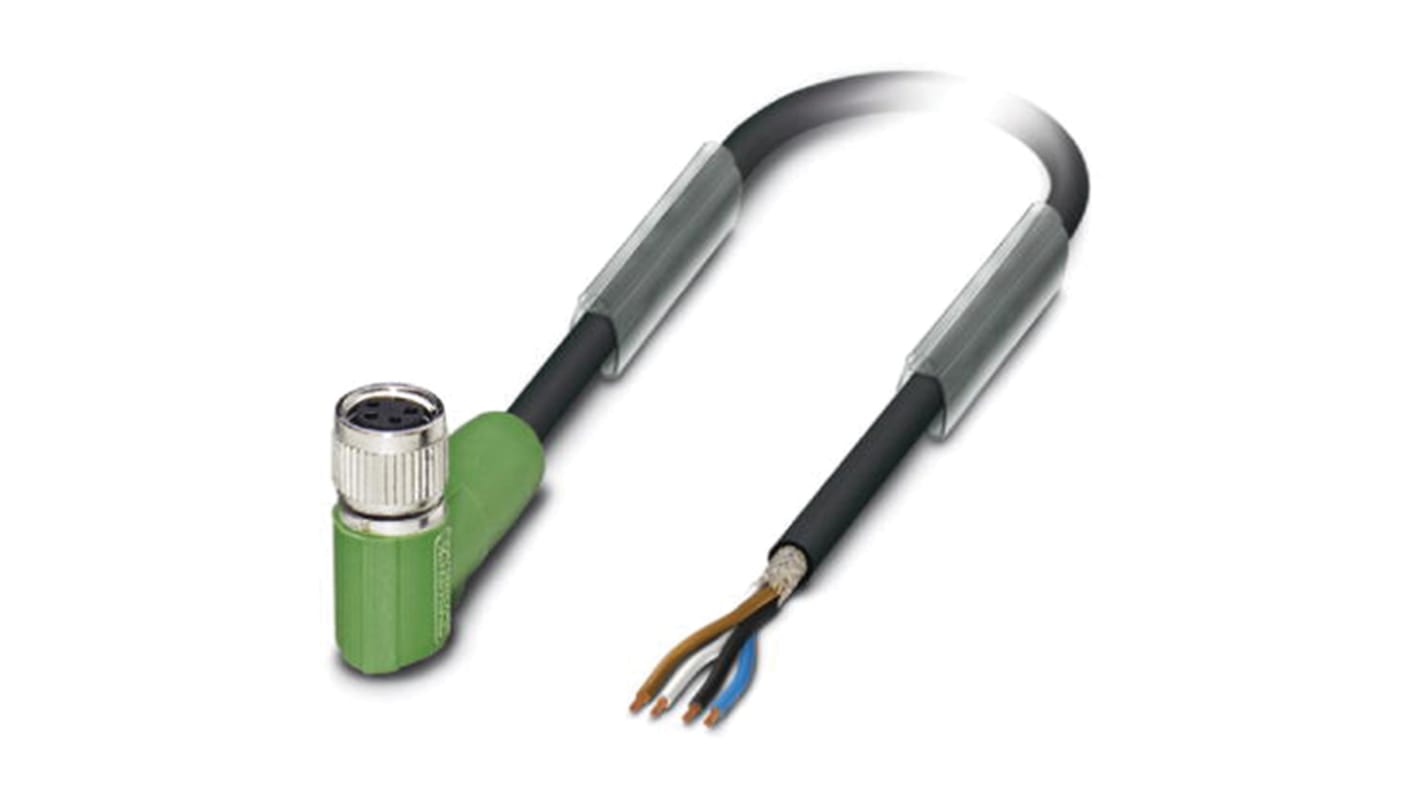

Phoenix Contact 4-Pin Cable Assembly, M8 to Unterminated, 10m - SAC-4P-10,0-PUR/M 8FR SH - 1521999


Use this Phoenix Contact cable assembly to ensure high-quality communication between your sensor or actuator and your control system. It has a long reach of 10m, so you can establish connections across a distance in large workspaces.
The copper-tin alloy contacts provide a high level of conductivity while resisting corrosion for long-lasting, reliable performance. A right-angled M8 connector on one end lets you make connections in tight spaces, while an unterminated end lets you select the correct connector for your application.
Its IP67 (ingress protection) rating means that the unit is dust-proof and can withstand submersion in 1m of water for half an hour, making it suitable for use in demanding environments. The polyurethane (PUR) sheath material is resistant to abrasion, so it can stand up to heavy-duty use.

Features & Benefits


• Nickel-plated zinc die-cast ring to tighten the M12 connector securely in place
• 360° shielding for protection against electromagnetic interference (EMI)
• Wide operating temperature range of -25°C to +90°C for use in demanding environments
• UL94 HB (Underwriters' Laboratories) rating means it's self-extinguishing for safety in the event of a fire

Reliable signal transmission – 360° shielding in environments with electromagnetic interference
