Phoenix Contact Male 4 way M12 to Sensor Actuator Cable, 2m
- RS Stock No.:
- 859-2550
- Mfr. Part No.:
- 1509445
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£12.52
(exc. VAT)
£15.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12.52 |
*price indicative
- RS Stock No.:
- 859-2550
- Mfr. Part No.:
- 1509445
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 4 | |
| Length | 2m | |
| Sheath Colour | Black/Grey | |
| Sheath Material | PUR | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V | |
| IP Rating | IP65, IP67, IP68 | |
| American Wire Gauge | 18 AWG | |
| Connector 1 Housing Gender | Male | |
| Conductor Material | Bare Cu litz wires | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 4 | ||
Length 2m | ||
Sheath Colour Black/Grey | ||
Sheath Material PUR | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 250 V | ||
IP Rating IP65, IP67, IP68 | ||
American Wire Gauge 18 AWG | ||
Connector 1 Housing Gender Male | ||
Conductor Material Bare Cu litz wires | ||
- COO (Country of Origin):
- PL

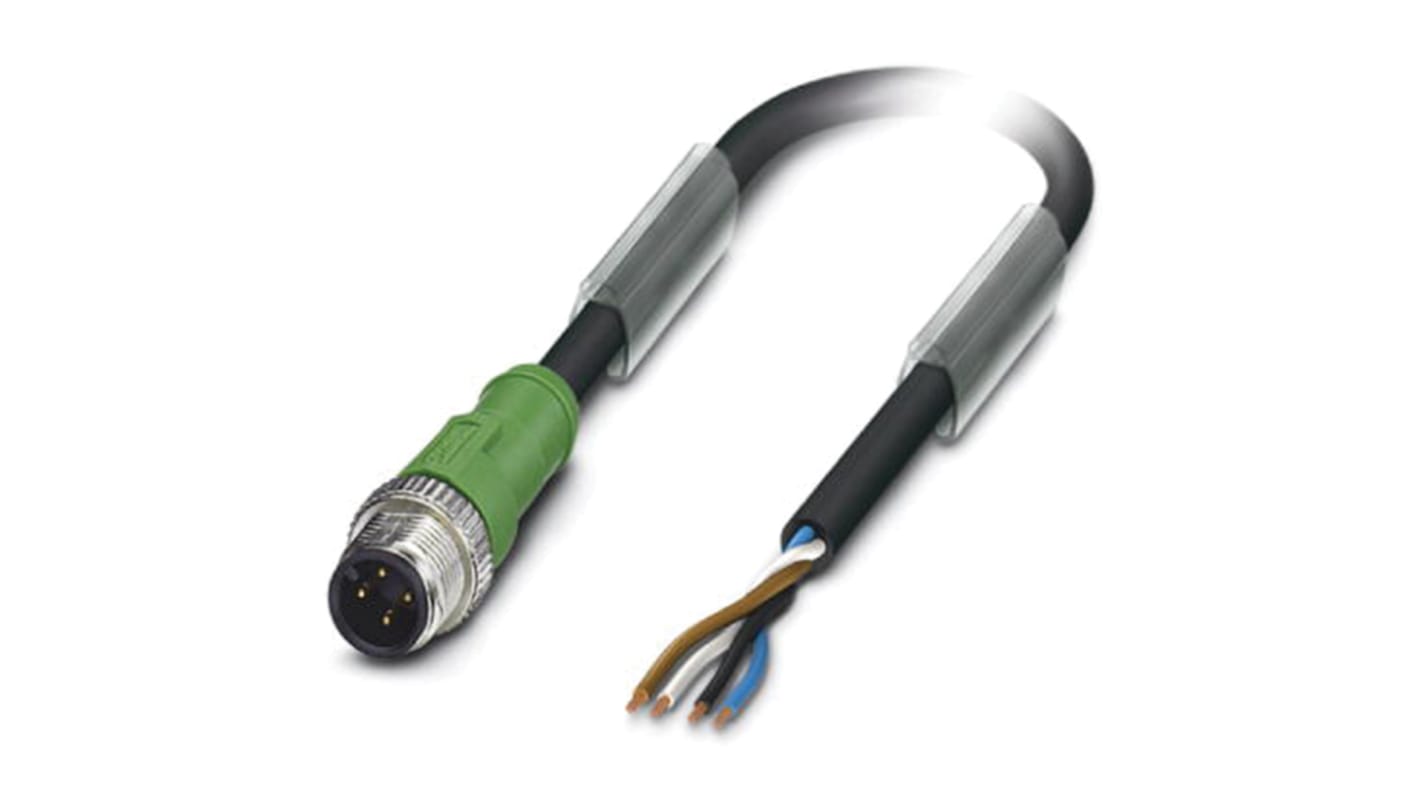

Sensor/actuator cable, 4-position, PUR, black-gray RAL 7021, Plug straight M12, coding: A, on free cable end, cable length: 2 m
Easy and safe: 100% electrically tested plug-in components
High-performance: connectors and cables with a large conductor cross section for power supply
