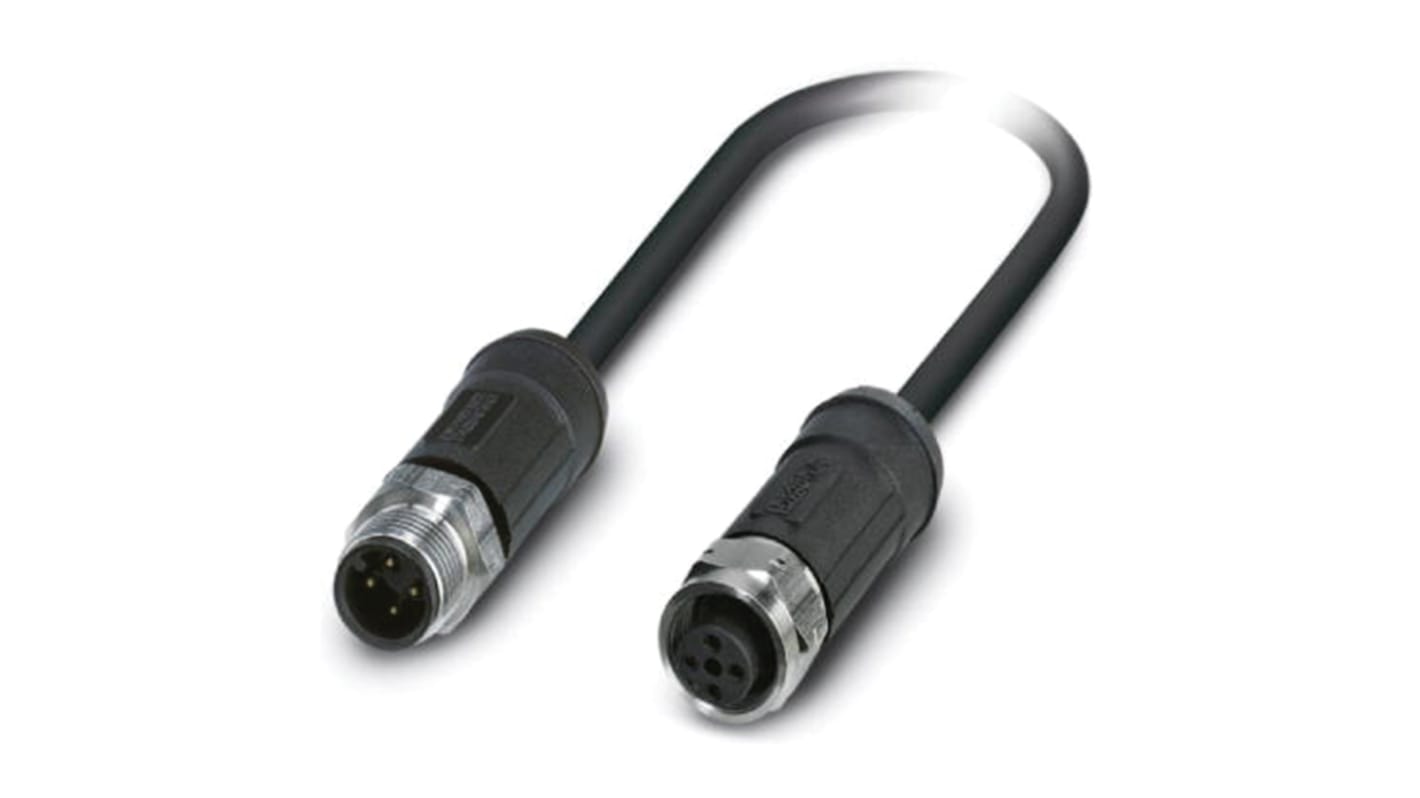

Phoenix Contact Male 4 way M12 to Female 4 way M12 Sensor Actuator Cable, 2m
- RS Stock No.:
- 859-2462
- Mfr. Part No.:
- 1454105
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£29.71
(exc. VAT)
£35.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 08 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.71 |
*price indicative
- RS Stock No.:
- 859-2462
- Mfr. Part No.:
- 1454105
- Brand:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 4 | |
| Sheath Material | PE | |
| Sheath Colour | Black/Grey | |
| Length | 2m | |
| Connector 1 | M12 | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 Number of Contacts | 4 | |
| Connector 2 Housing Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 | |
| Coding | A | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Minimum Bend Radius | 52 mm (Flexible) 26 mm (Fixed) | |
| American Wire Gauge | 20 AWG | |
| Conductor Material | Bare Cu litz wires | |
| Connector 1 Housing Gender | Male | |
| Oil Resistant | Yes | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 4 | ||
Sheath Material PE | ||
Sheath Colour Black/Grey | ||
Length 2m | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 Housing Gender Female | ||
Connector 2 Gender Female | ||
Connector 2 M12 | ||
Coding A | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Minimum Bend Radius 52 mm (Flexible) 26 mm (Fixed) | ||
American Wire Gauge 20 AWG | ||
Conductor Material Bare Cu litz wires | ||
Connector 1 Housing Gender Male | ||
Oil Resistant Yes | ||
