Phoenix Contact Male 4 way M12 to Female 4 way M12 Sensor Actuator Cable, 3m
- RS Stock No.:
- 859-2131
- Mfr. Part No.:
- 1403975
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£25.02
(exc. VAT)
£30.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.02 |
*price indicative
- RS Stock No.:
- 859-2131
- Mfr. Part No.:
- 1403975
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 4 | |
| Length | 3m | |
| Sheath Material | PP | |
| Sheath Colour | Grey | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M12 | |
| Connector 2 Number of Contacts | 4 | |
| Connector 2 Housing Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 2 | M12 | |
| Coding | A | |
| Voltage Rating | 250 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| American Wire Gauge | 22 AWG | |
| Minimum Bend Radius | 10 x D (Flexible) 5 x D (Fixed) | |
| Connector 1 Housing Gender | Male | |
| Conductor Material | Bare Cu litz wires | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 4 | ||
Length 3m | ||
Sheath Material PP | ||
Sheath Colour Grey | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M12 | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 Housing Gender Female | ||
Connector 2 Gender Female | ||
Connector 2 M12 | ||
Coding A | ||
Voltage Rating 250 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
American Wire Gauge 22 AWG | ||
Minimum Bend Radius 10 x D (Flexible) 5 x D (Fixed) | ||
Connector 1 Housing Gender Male | ||
Conductor Material Bare Cu litz wires | ||
- COO (Country of Origin):
- PL

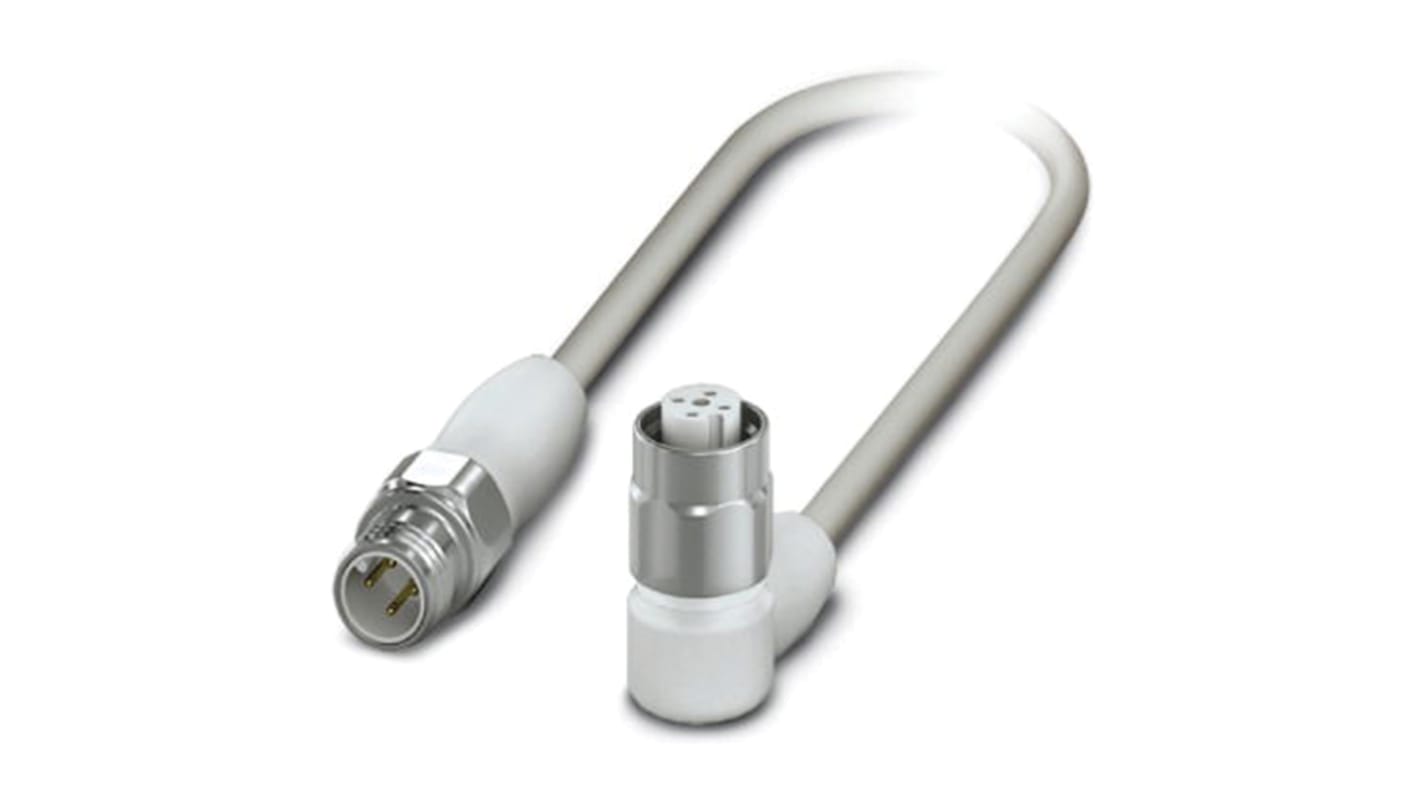

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M12, coding: A, on Socket angled M12, coding: A, cable length: 3 m, Hygienic design, with high-grade steel knurl
Easy to clean, thanks to the special hygienic design
Corrosion protection for all exposed metal parts, thanks to the use of stainless steel type 1.4404
Contamination can be detected quickly – thanks to the light color
Easy and safe: 100% electrically tested plug-in components
