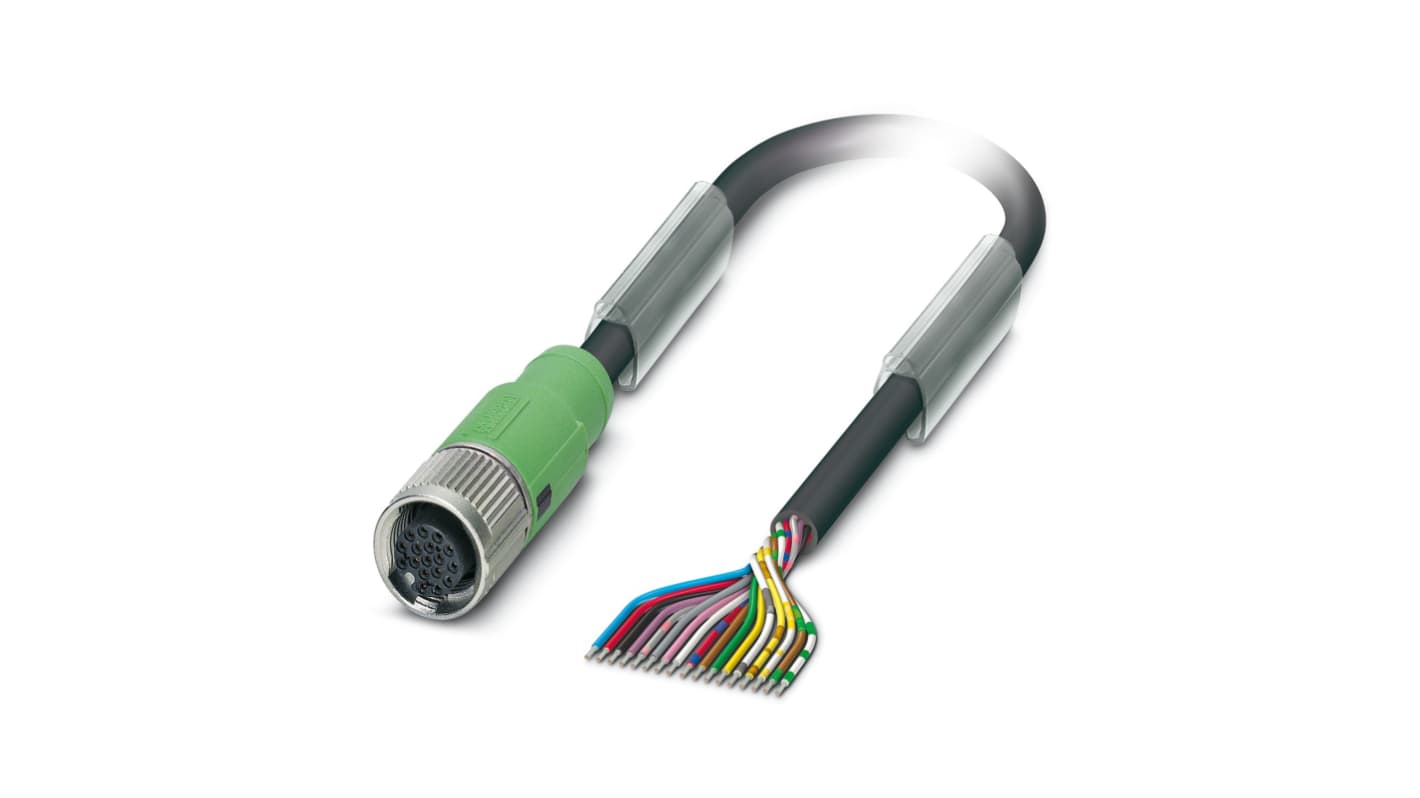

Phoenix Contact Female 17 way M12 to Sensor Actuator Cable, 3m
- RS Stock No.:
- 856-7009
- Mfr. Part No.:
- 1555350
- Brand:
- Phoenix Contact
Available to back order for despatch 12/08/2024
Price Each
£42.43
(exc. VAT)
£50.92
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £42.43 |
| 5 - 9 | £41.13 |
| 10 + | £39.37 |
- RS Stock No.:
- 856-7009
- Mfr. Part No.:
- 1555350
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Sensor/actuator cable, 17-position, PVC, black RAL 9005, free cable end, on Socket straight M12 SPEEDCON, coding: A, cable length: 3 m
Save space – with high-pos. connectors
Easy and safe: 100% electrically tested plug-in components
Specifications
Attribute | Value |
|---|---|
| Series | SAC-17P |
| Number of Cores | 17 |
| Cross Sectional Area | 0.14 mm² |
| Sheath Colour | Black |
| Length | 3m |
| Sheath Material | PVC |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 17 |
| Coding | A |
| Current Rating | 1.5 A |
| Voltage Rating | 30 V |
| IP Rating | IP65, IP67, IP68 |
| American Wire Gauge | 26 AWG |
| Conductor Material | Bare Cu litz wires |
| Outer Diameter | 6.40mm |
| Connector 1 Housing Gender | Female |
| Insulation Material | PVC |
| Cable Shape | Twisted Pair |
| Minimum Bend Radius | 96 mm |
