Phoenix Contact Right Angle Female 4 way M12 to Sensor Actuator Cable, 10m
- RS Stock No.:
- 856-6656
- Mfr. Part No.:
- 1404022
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£26.58
(exc. VAT)
£31.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £26.58 |
*price indicative
- RS Stock No.:
- 856-6656
- Mfr. Part No.:
- 1404022
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Grey | |
| Sheath Material | PP | |
| Length | 10m | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 24 V | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Insulation Material | PP | |
| Fire Behaviour | Halogen Free | |
| Cable Shape | Twisted Pair | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 4.7mm | |
| Conductor Material | Bare Cu litz wires | |
| Minimum Bend Radius | 5 x D (Fixed), 10 x D (Flexible) | |
| Connector 1 Housing Gender | Female | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Sheath Colour Grey | ||
Sheath Material PP | ||
Length 10m | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 24 V | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Insulation Material PP | ||
Fire Behaviour Halogen Free | ||
Cable Shape Twisted Pair | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.7mm | ||
Conductor Material Bare Cu litz wires | ||
Minimum Bend Radius 5 x D (Fixed), 10 x D (Flexible) | ||
Connector 1 Housing Gender Female | ||
- COO (Country of Origin):
- PL

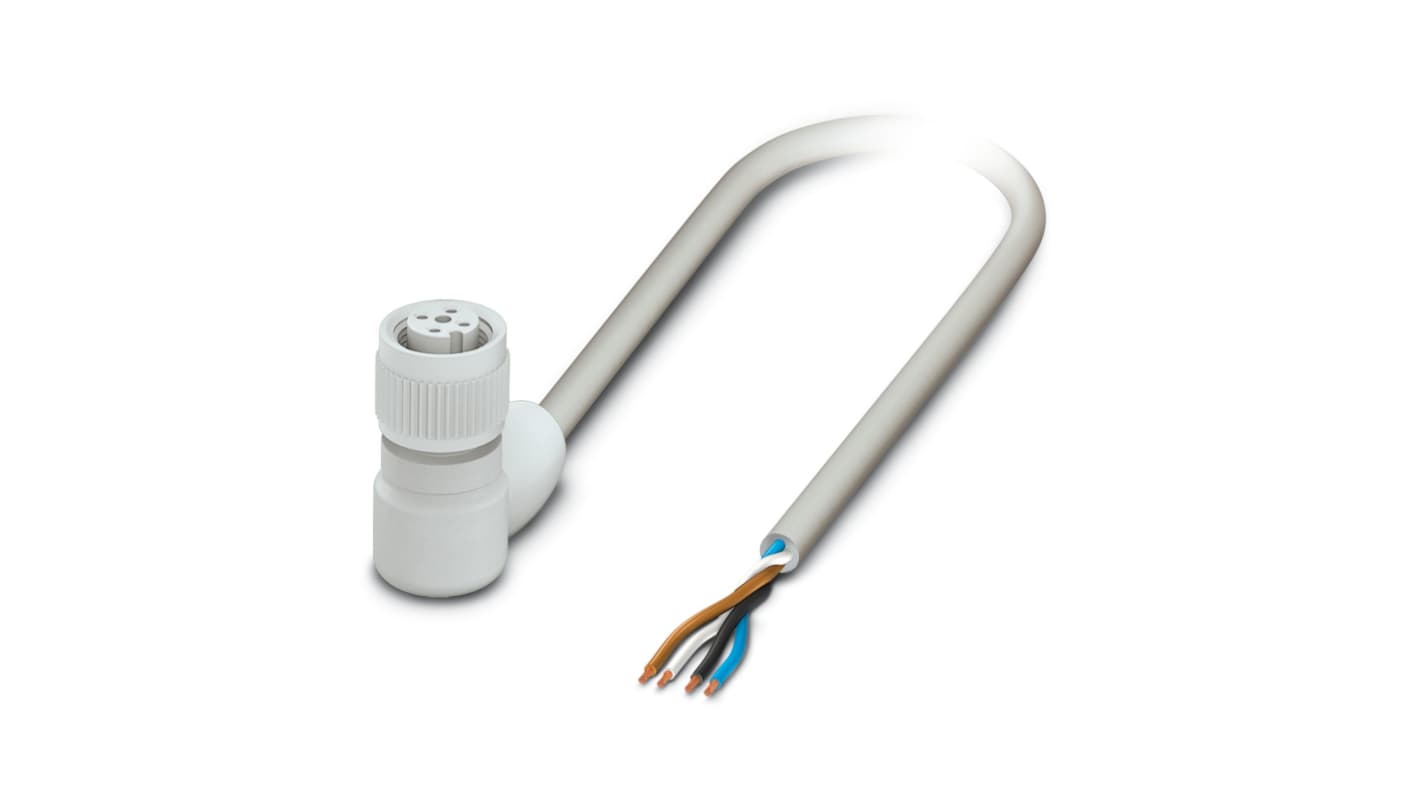

Sensor/actuator cable, 4-position, PP-EPDM halogen-free, gray RAL 7035, free cable end, on Socket angled M12, coding: A, with 3 LEDs, cable length: 10 m, Hygienic design, with plastic knurl
Easy and safe: 100% electrically tested plug-in components
Contamination can be detected quickly – thanks to the light color
Easy to clean, thanks to the special hygienic design
Convenient: increased machine availability thanks to quick and easy diagnostics
