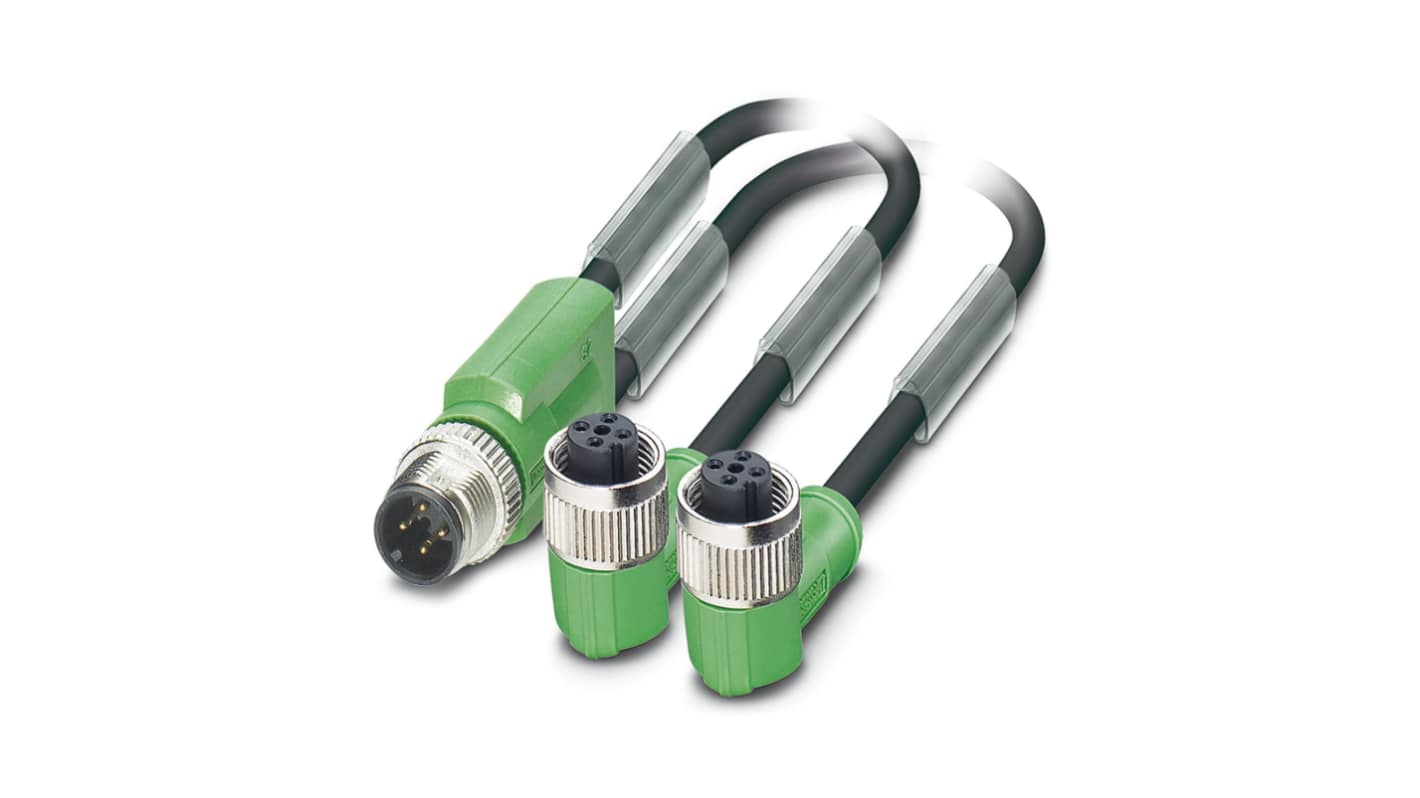

Phoenix Contact Male 3 way M12 to Right Angle Female 3 way M12 x 2 Sensor Actuator Cable, 3m
- RS Stock No.:
- 856-6514
- Mfr. Part No.:
- 1669026
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£32.48
(exc. VAT)
£38.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.48 |
*price indicative
- RS Stock No.:
- 856-6514
- Mfr. Part No.:
- 1669026
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-3P | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 3 | |
| Length | 3m | |
| Sheath Colour | Black/Grey | |
| Sheath Material | PUR | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 | M12 | |
| Connector 2 | M12 x 2 | |
| Connector 2 Housing Gender | Female | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Gender | Female | |
| Connector 2 Number of Contacts | 3 | |
| Coding | A | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68 | |
| American Wire Gauge | 22 AWG | |
| Connector 1 Housing Gender | Male | |
| Conductor Material | Bare Cu litz wires | |
| Oil Resistant | Yes | |
| Insulation Material | PP | |
| Cable Shape | Twisted Pair | |
| Minimum Bend Radius | 22 mm (Fixed), 44 mm (Movable) | |
| Outer Diameter | 4.4mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-3P | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
Length 3m | ||
Sheath Colour Black/Grey | ||
Sheath Material PUR | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M12 | ||
Connector 2 M12 x 2 | ||
Connector 2 Housing Gender Female | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Gender Female | ||
Connector 2 Number of Contacts 3 | ||
Coding A | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68 | ||
American Wire Gauge 22 AWG | ||
Connector 1 Housing Gender Male | ||
Conductor Material Bare Cu litz wires | ||
Oil Resistant Yes | ||
Insulation Material PP | ||
Cable Shape Twisted Pair | ||
Minimum Bend Radius 22 mm (Fixed), 44 mm (Movable) | ||
Outer Diameter 4.4mm | ||
- COO (Country of Origin):
- PL
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on Socket angled M12, coding: A, PIN 2+4 bridged and Socket angled M12, coding: A, PIN 2+4 bridged, cable length: 3 m
