Phoenix Contact Female 3 way M12 to Sensor Actuator Cable, 5m
- RS Stock No.:
- 856-5974
- Mfr. Part No.:
- 1454273
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£21.40
(exc. VAT)
£25.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.40 |
*price indicative
- RS Stock No.:
- 856-5974
- Mfr. Part No.:
- 1454273
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-3P | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.34 mm² | |
| Length | 5m | |
| Sheath Colour | Grey | |
| Sheath Material | PUR | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V | |
| IP Rating | IP65, IP67, IP68 | |
| Conductor Material | Bare Cu litz wires | |
| Insulation Material | PES | |
| Cable Shape | Twisted Pair | |
| Oil Resistant | Yes | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 4.5mm | |
| Minimum Bend Radius | 5xD (Fixed), 5xD (Flexible) | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-3P | ||
Number of Cores 3 | ||
Cross Sectional Area 0.34 mm² | ||
Length 5m | ||
Sheath Colour Grey | ||
Sheath Material PUR | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 250 V | ||
IP Rating IP65, IP67, IP68 | ||
Conductor Material Bare Cu litz wires | ||
Insulation Material PES | ||
Cable Shape Twisted Pair | ||
Oil Resistant Yes | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.5mm | ||
Minimum Bend Radius 5xD (Fixed), 5xD (Flexible) | ||
- COO (Country of Origin):
- PL

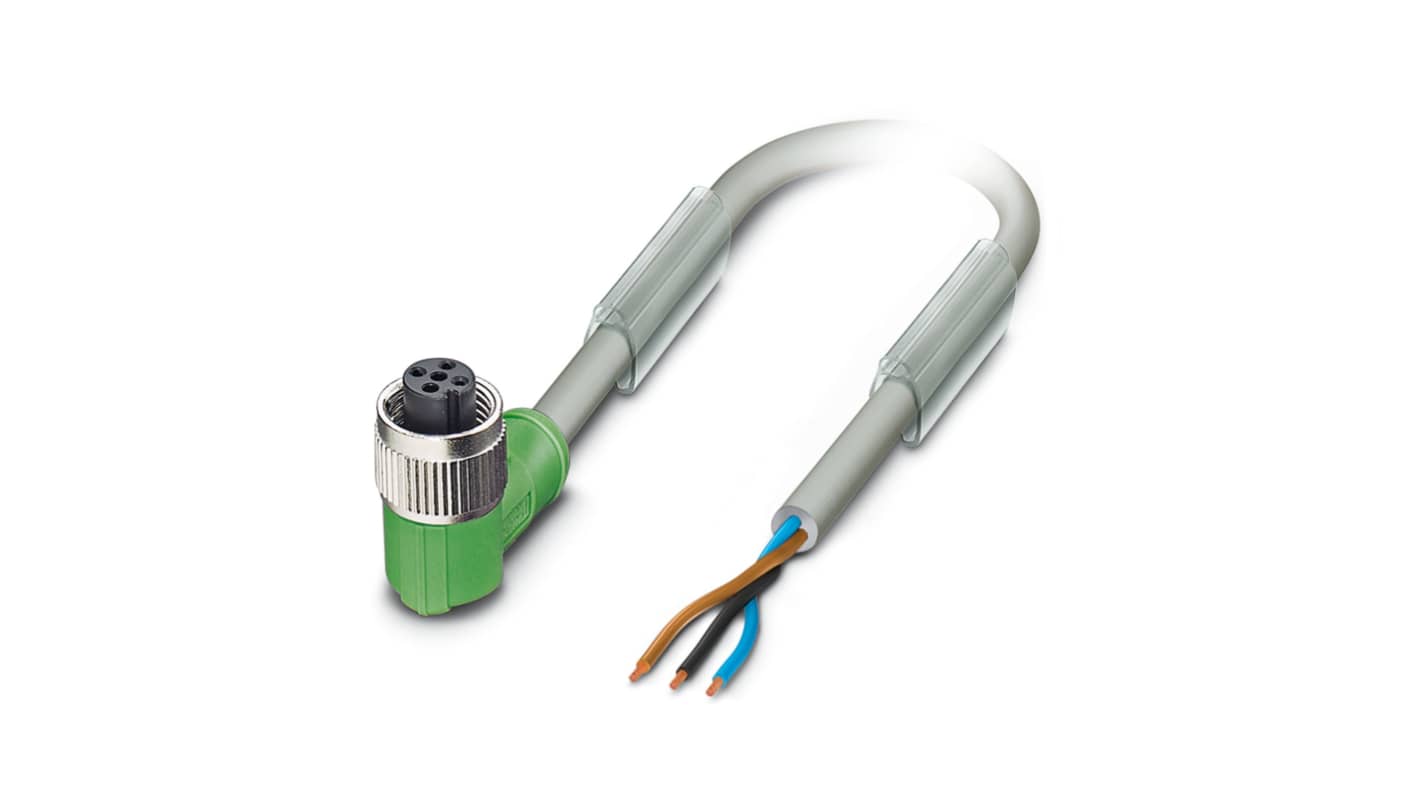

Sensor/actuator cable, 3-position, PUR halogen-free, resistant to welding sparks, highly flexible, gray RAL 7001, free cable end, on Socket angled M12, coding: A, cable length: 5 m, for robots and drag chains
Easy and safe: 100% electrically tested plug-in components
Reliable solution for the body shop as cable is resistant to welding sparks
Flexible: cable supports a high degree of torsion and bending
