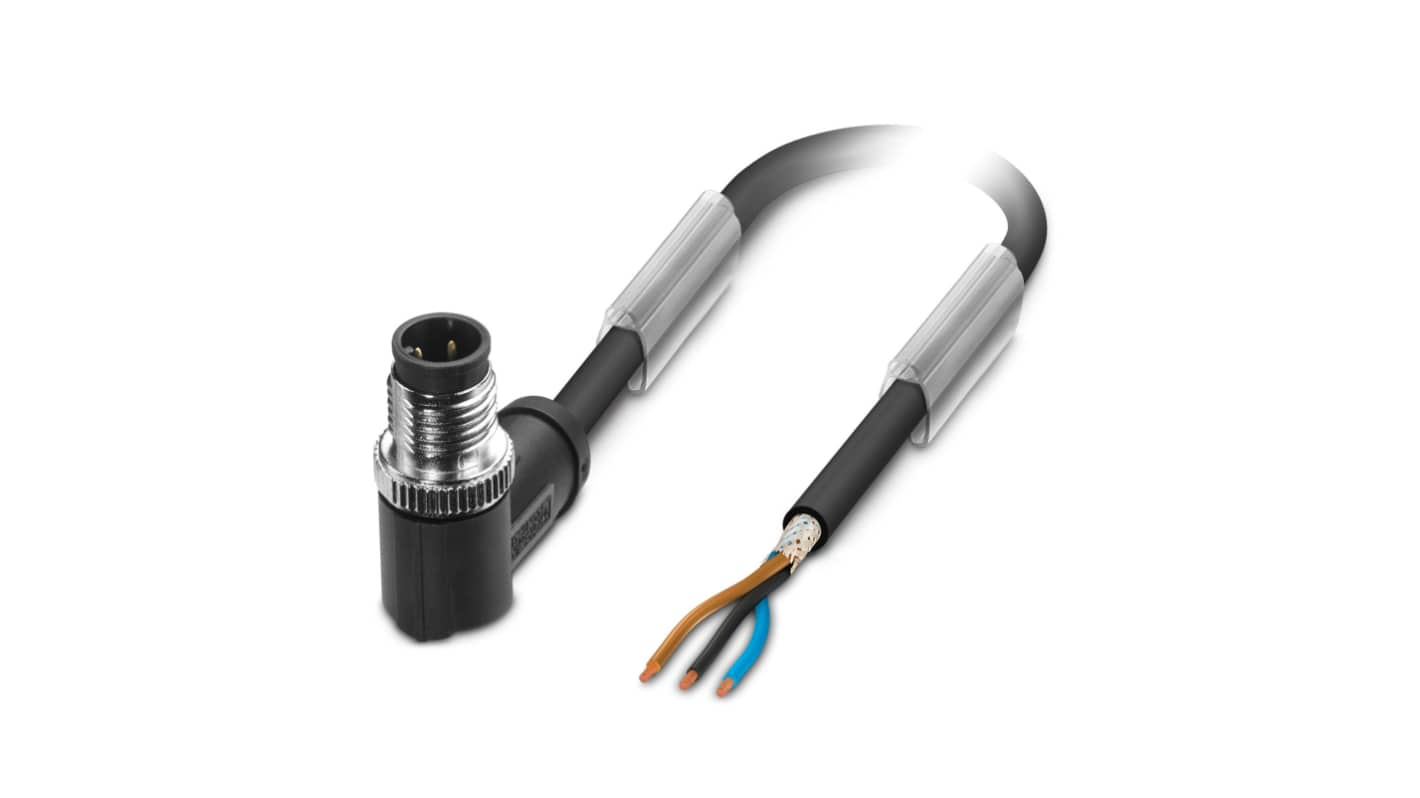

Phoenix Contact Right Angle Male 3 way M12 to Sensor Actuator Cable, 3m
- RS Stock No.:
- 856-5842
- Mfr. Part No.:
- 1682692
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£18.36
(exc. VAT)
£22.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £18.36 |
*price indicative
- RS Stock No.:
- 856-5842
- Mfr. Part No.:
- 1682692
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-3P-M12MR | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Colour | Black/Grey | |
| Length | 3m | |
| Sheath Material | PUR | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Number of Contacts | 3 | |
| Coding | A | |
| Voltage Rating | 48 V ac, 60 V dc | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67 | |
| Conductor Material | Bare Cu litz wires | |
| Insulation Material | PP | |
| Cable Shape | Twisted Pair | |
| Oil Resistant | Yes | |
| Connector 1 Housing Gender | Male | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 4.65mm | |
| Minimum Bend Radius | 23 mm (Fixed), 47 mm (Flexible) | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-3P-M12MR | ||
Number of Cores 3 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Black/Grey | ||
Length 3m | ||
Sheath Material PUR | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 3 | ||
Coding A | ||
Voltage Rating 48 V ac, 60 V dc | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
Conductor Material Bare Cu litz wires | ||
Insulation Material PP | ||
Cable Shape Twisted Pair | ||
Oil Resistant Yes | ||
Connector 1 Housing Gender Male | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.65mm | ||
Minimum Bend Radius 23 mm (Fixed), 47 mm (Flexible) | ||
- COO (Country of Origin):
- PL
Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug angled M12, coding: A, on free cable end, cable length: 3 m
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
