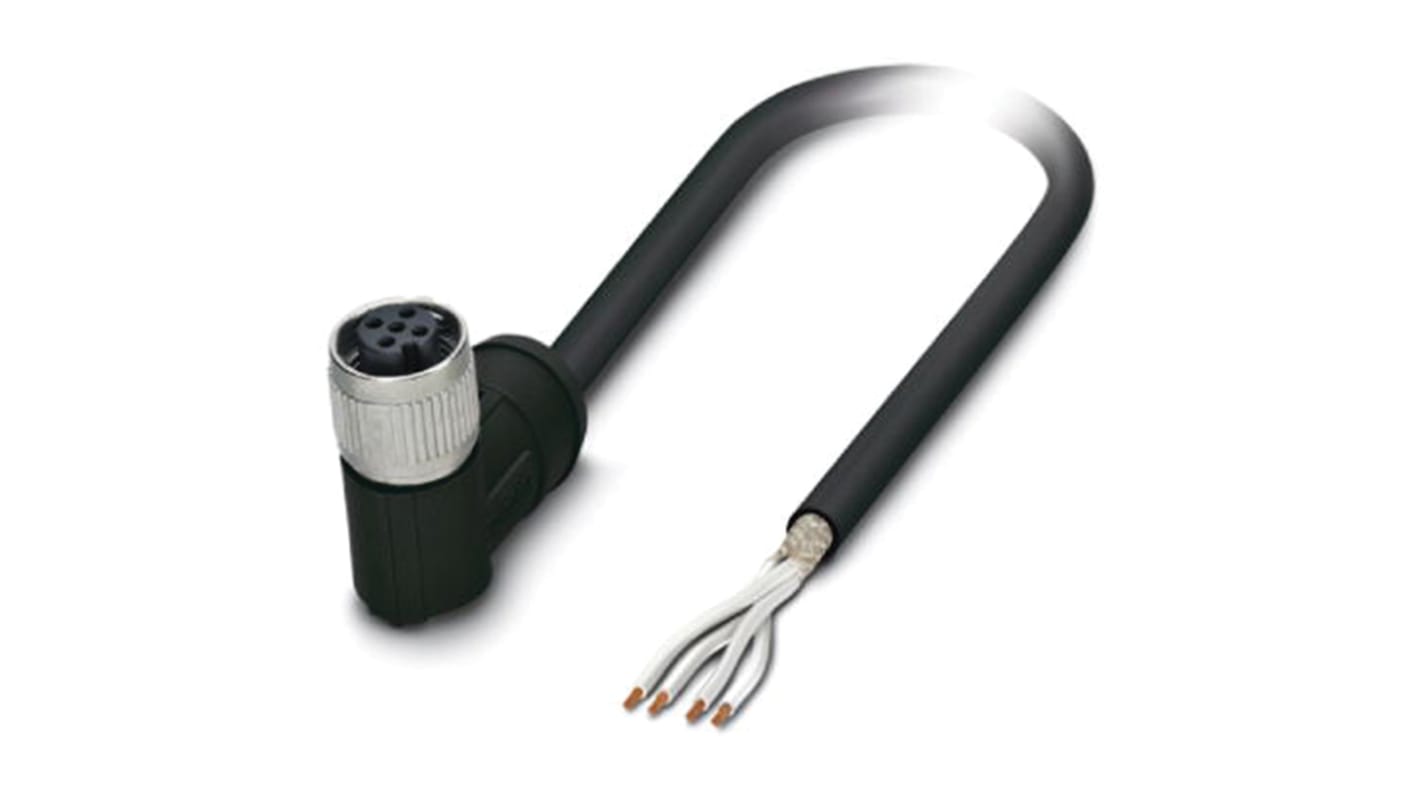

Phoenix Contact Female 4 way M12 to Sensor Actuator Cable, 2m
- RS Stock No.:
- 856-5823
- Mfr. Part No.:
- 1407320
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£24.58
(exc. VAT)
£29.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £24.58 |
*price indicative
- RS Stock No.:
- 856-5823
- Mfr. Part No.:
- 1407320
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.5 mm² | |
| Length | 2m | |
| Sheath Colour | Black | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Coding | A | |
| Shielded/Unshielded | Shielded | |
| Shielding | Tinned Copper Braid | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V | |
| IP Rating | IP65 | |
| Connector 1 Housing Gender | Female | |
| Minimum Bend Radius | 3 x D (Fixed), 4 x D (Flexible) | |
| American Wire Gauge | 20 AWG | |
| Outer Diameter | 5.4mm | |
| Fire Behaviour | Halogen Free | |
| Cable Shape | Twisted Pair | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P | ||
Number of Cores 4 | ||
Cross Sectional Area 0.5 mm² | ||
Length 2m | ||
Sheath Colour Black | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Coding A | ||
Shielded/Unshielded Shielded | ||
Shielding Tinned Copper Braid | ||
Current Rating 4 A | ||
Voltage Rating 250 V | ||
IP Rating IP65 | ||
Connector 1 Housing Gender Female | ||
Minimum Bend Radius 3 x D (Fixed), 4 x D (Flexible) | ||
American Wire Gauge 20 AWG | ||
Outer Diameter 5.4mm | ||
Fire Behaviour Halogen Free | ||
Cable Shape Twisted Pair | ||
Sensor/actuator cable, 4-position, PE-X halogen-free, black, shielded, free cable end, on Socket angled M12 SPEEDCON, coding: A, cable length: 2 m, For railway applications
Resistant to temperature influences – tested for an extended temperature range and for resistance to temperature shocks
Securely locked by special vibration brake
Safety thanks to flame retardancy: PA 6.6 grip and radiation-cross-linked cables satisfy the most stringent requirements
Easy and safe: 100% electrically tested plug-in components
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
