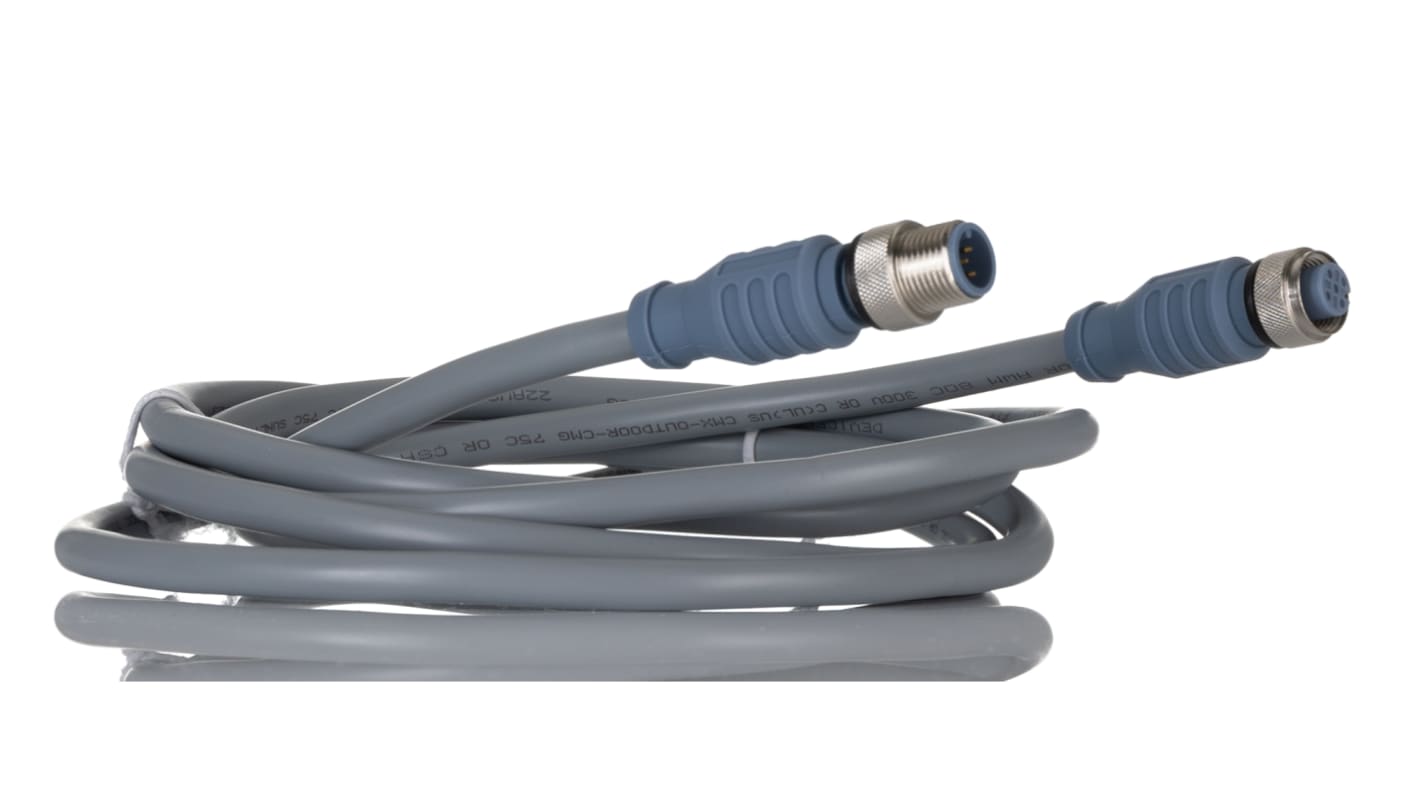

Turck Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 2m

RS Stock No.:: 833-9772
Mfr. Part No.:: RSC RKC 572-2M
Brand:: Turck

Turck Straight Male 5 way M12 to Straight Female 5 way M12 Sensor Actuator Cable, 2m

Subtotal (1 unit)*

£64.46

(exc. VAT)

£77.35

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

39 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£64.46

*price indicative

RS Stock No.:: 833-9772
Mfr. Part No.:: RSC RKC 572-2M
Brand:: Turck

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Turck
	Series	RSC RKC
	Number of Cores	5
	Cross Sectional Area	0.34 mm²
	Length	2m
	Sheath Material	PVC
	Sheath Colour	Grey
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	5
	Connector 1 Gender	Male
	Connector 1	M12
	Connector 2	M12
	Connector 2 Gender	Female
	Connector 2 Number of Contacts	5
	Connector 2 Orientation	Straight
	Coding	A
	Shielded/Unshielded	Shielded
	Shielding	Foil
	Voltage Rating	250 V
	Current Rating	4 A
	IP Rating	IP67
	Cable Shape	Twisted Pair
	Operating Temperature Range	-40 → +80 °C
	Standards Met	CSA, UL
	Insulation Material	Foam HDPE
	Minimum Operating Temperature	-40°C
	Conductor Material	Tinned Copper
	American Wire Gauge	22 AWG
	Outer Diameter	7.24mm
	Maximum Operating Temperature	+80°C
	Minimum Bend Radius	> 5 x Diameter

	Select all
	Brand Turck
	Series RSC RKC
	Number of Cores 5
	Cross Sectional Area 0.34 mm²
	Length 2m
	Sheath Material PVC
	Sheath Colour Grey
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 5
	Connector 1 Gender Male
	Connector 1 M12
	Connector 2 M12
	Connector 2 Gender Female
	Connector 2 Number of Contacts 5
	Connector 2 Orientation Straight
	Coding A
	Shielded/Unshielded Shielded
	Shielding Foil
	Voltage Rating 250 V
	Current Rating 4 A
	IP Rating IP67
	Cable Shape Twisted Pair
	Operating Temperature Range -40 → +80 °C
	Standards Met CSA, UL
	Insulation Material Foam HDPE
	Minimum Operating Temperature -40°C
	Conductor Material Tinned Copper
	American Wire Gauge 22 AWG
	Outer Diameter 7.24mm
	Maximum Operating Temperature +80°C
	Minimum Bend Radius > 5 x Diameter

COO (Country of Origin):: MX

Turck Sensor Actuator Cable, 5 Cores, 250V Voltage Rating - RSC Series - RSC RKC 572-2M

Need to connect essential bits of kit in a challenging industrial environment? Reach for this sensor actuator cable from Turck. It's rated IP68 and IP69, meaning the cable and its connectors are dust-tight, waterproof and will stand up to steam cleaning. The assembly works in a wide operating temperature range of -40°C to +80°C, so you can trust it in demanding conditions. Gold-plated bronze contacts resist corrosion to make sure they keep transmitting high-quality information. Foil shielding protects the signals from EMI, maintaining the integrity of data.

Features & Benefits

• M12 male and female connectors mean quick and easy links to standard equipment
• Length of 2m gives flexibility to build the installation you need
• 5 cores enable bidirectional data transmission to drive complex control systems
• Nickel-over-brass locknut prevents connections from vibrating loose and stands up to corrosion
• Foamed HDPE core insulation reduces signal attenuation, helping data travel long distances without degradation

Applications

• Chemical processing
• Food and beverage production
• Automotive manufacturing

What's the voltage rating of this sensor actuator cable?

This sensor actuator cable is voltage-rated at 250V, making it compatible with the UK and European mains supplies.

Cordset & Cable Connector Female to Male

New product line from Turck Banner, eurofast®, picofast®, pentafast® and microfast® cordsets.
These industrial connectivity products are available as angled or straight configuration with choices of M5, M8, M12, M16, M23 or 1/2" 20 UNF connection.
A combination of female, male, female to male and male to female gender plus various cable lengths ensure the user can select the right cordset for their application.
