- RS Stock No.:
- 803-6846
- Mfr. Part No.:
- 1510722
- Brand:
- Phoenix Contact
5 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Price Each
£46.75
(exc. VAT)
£56.10
(inc. VAT)
Units | Per unit |
1 - 4 | £46.75 |
5 + | £44.41 |
- RS Stock No.:
- 803-6846
- Mfr. Part No.:
- 1510722
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
Sensor/Actuator 4 Way Cable Assemblies, M12 to M12, PUR Cable
M12 to M12 connector cable assemblies, 4 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.
100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
Operating temperature range -25 to +90 °C
Surge voltage category II
Approvals
UL, cUL, cULus, GOST.

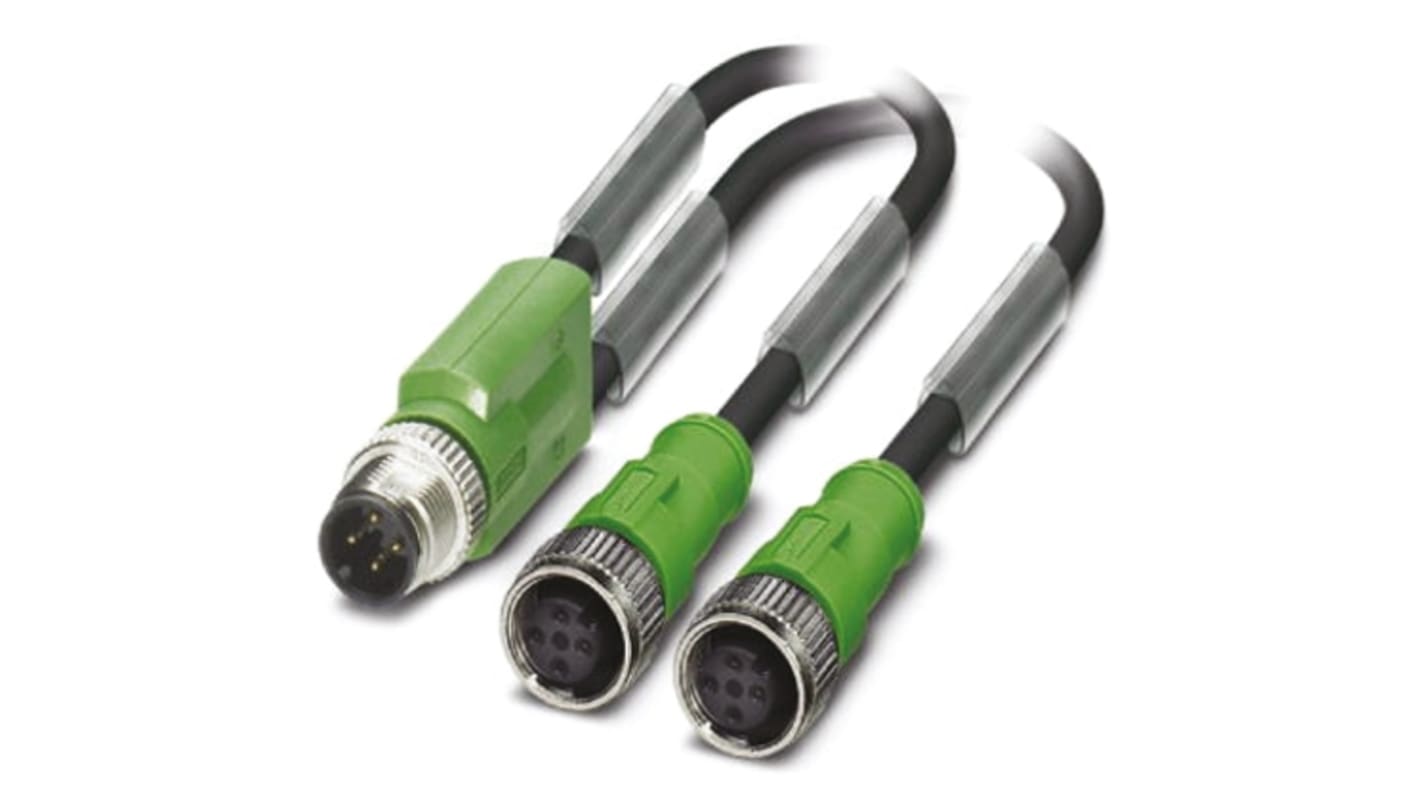

Phoenix Contact Cable Assembly, 4 Core, M12 Plug to M12 Socket - SAC-4P-M12Y/2X0.3-PUR/M12FS VP - 1510722
This M12 cable assembly from Phoenix Contact makes it easy to set up your electrical equipment efficiently. It has a handy Y distributor that lets you connect both a power supply and a signal connector to a single device, making it an ideal choice for sensor and actuator systems. A copper and tin alloy is used for the contacts in the assembly. This offers excellent conductivity for reliable performance, as well as good resistance to corrosion.
The cable's sheath is made from a sturdy polyurethane (PUR) material that offers excellent impact strength, durability and chemical resistance. This means the component offers a reliably long service life, even with heavy use in harsh industrial environments. The 300mm cable is also highly flexible, so it can fit around awkwardly-placed objects or in tight, cramped workplaces.
The cable's sheath is made from a sturdy polyurethane (PUR) material that offers excellent impact strength, durability and chemical resistance. This means the component offers a reliably long service life, even with heavy use in harsh industrial environments. The 300mm cable is also highly flexible, so it can fit around awkwardly-placed objects or in tight, cramped workplaces.
• Wire size of 22AWG (American Wire Gauge)
• Connector A is a male M12 plug
• Connector B is a female M12 socket
• Four contacts on each connector
• Cross-sectional area of 0.34mm²
• Length of 300mm
• Four cores
• Black sheath colour
• Unshielded
• Connector A is a male M12 plug
• Connector B is a female M12 socket
• Four contacts on each connector
• Cross-sectional area of 0.34mm²
• Length of 300mm
• Four cores
• Black sheath colour
• Unshielded
Specifications
Attribute | Value |
---|---|
Series | SAC-4P-M12Y/2X0.3-PUR/M12FS VP |
Number of Cores | 4 |
Cross Sectional Area | 0.34 mm² |
Length | 300mm |
Sheath Material | PUR |
Sheath Colour | Black |
Connector 1 Gender | Male |
Connector 1 | M12 |
Connector 1 Number of Contacts | 4 |
Connector 1 Orientation | Straight |
Connector 2 Number of Contacts | 4 |
Connector 2 Gender | Female |
Connector 2 Orientation | Straight |
Connector 2 | M12 |
Connector 2 Housing Gender | Female |
Coding | A |
Shielded/Unshielded | Unshielded |
Current Rating | 4 A |
Voltage Rating | 250 V |
IP Rating | IP65, IP67, IP68 |
Connector 1 Housing Gender | Male |
American Wire Gauge | 22 AWG |
Minimum Operating Temperature | +90°C |
Maximum Operating Temperature | -25°C |
