Phoenix Contact Sensor Actuator Cable, 5m
- RS Stock No.:
- 802-9273
- Mfr. Part No.:
- 1406158
- Brand:
- Phoenix Contact
Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 802-9273
- Mfr. Part No.:
- 1406158
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-5P-MS/ 5.0-542 SCO BK | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Material | PVC | |
| Length | 5m | |
| Sheath Colour | Yellow | |
| Coding | A | |
| American Wire Gauge | 22 AWG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-5P-MS/ 5.0-542 SCO BK | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Material PVC | ||
Length 5m | ||
Sheath Colour Yellow | ||
Coding A | ||
American Wire Gauge 22 AWG | ||

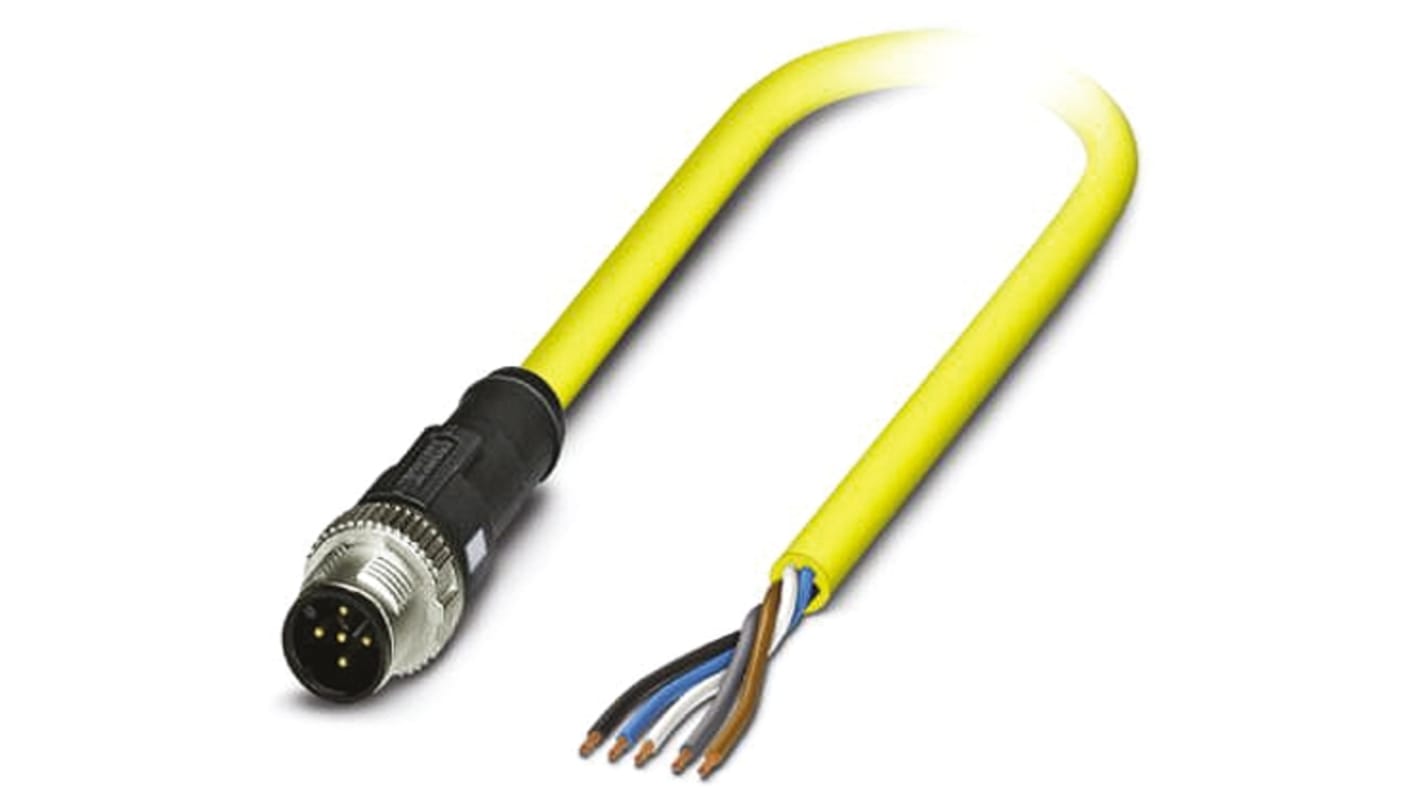

Sensor/Actuator 5 Way Cable Assemblies, M12 Speedcon to Free End
M12 to free end Speedcon connector cable assemblies, 5 way in a variety of cable lengths, with angled or straight connector versions with PVC shielded yellow cable. A-coded connectors with a rating of 4A 60V and IP67 rated once mated.
100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
Operating temperature range -25 to +90 °C
Surge voltage category II
Approvals
UL Listed, cUL Listed, cULus Listed
