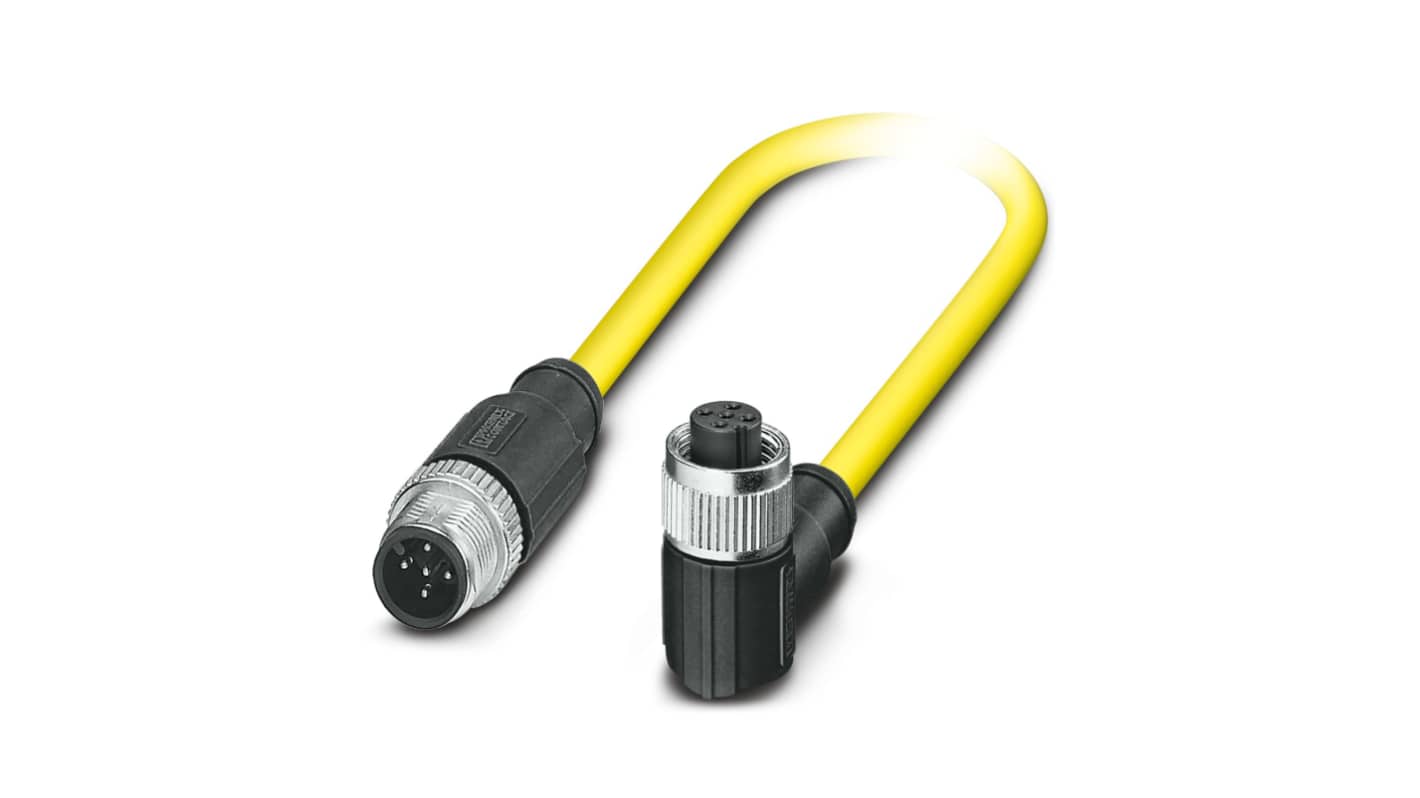

Phoenix Contact Right Angle Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 500mm
- RS Stock No.:
- 802-9191
- Mfr. Part No.:
- 1406135
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 802-9191
- Mfr. Part No.:
- 1406135
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-5P-MS/0.5-542/ FRSH SCO BK | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Yellow | |
| Length | 500mm | |
| Sheath Material | PVC | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Right Angle | |
| Connector 2 Gender | Male | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 | M12 | |
| Connector 2 Orientation | Straight | |
| Connector 2 Housing Gender | Male | |
| Coding | A | |
| Shielded/Unshielded | Shielded | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 22 AWG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-5P-MS/0.5-542/ FRSH SCO BK | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Colour Yellow | ||
Length 500mm | ||
Sheath Material PVC | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 M12 | ||
Connector 2 Orientation Straight | ||
Connector 2 Housing Gender Male | ||
Coding A | ||
Shielded/Unshielded Shielded | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 22 AWG | ||
Sensor/Actuator 5 Way Cable Assemblies, M12 to M12 Speedcon, Shielded
M12 to M12 shielded Speedcon connector cable assemblies, 5 way in a variety of cable lengths, with angled or straight connector versions with PVC shielded yellow cable. A-coded connectors with a rating of 4A 60V and IP67 rated once mated.
100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
Operating temperature range -25 to +90 °C
Surge voltage category II
Approvals
UL Listed, cUL Listed, cULus Listed
