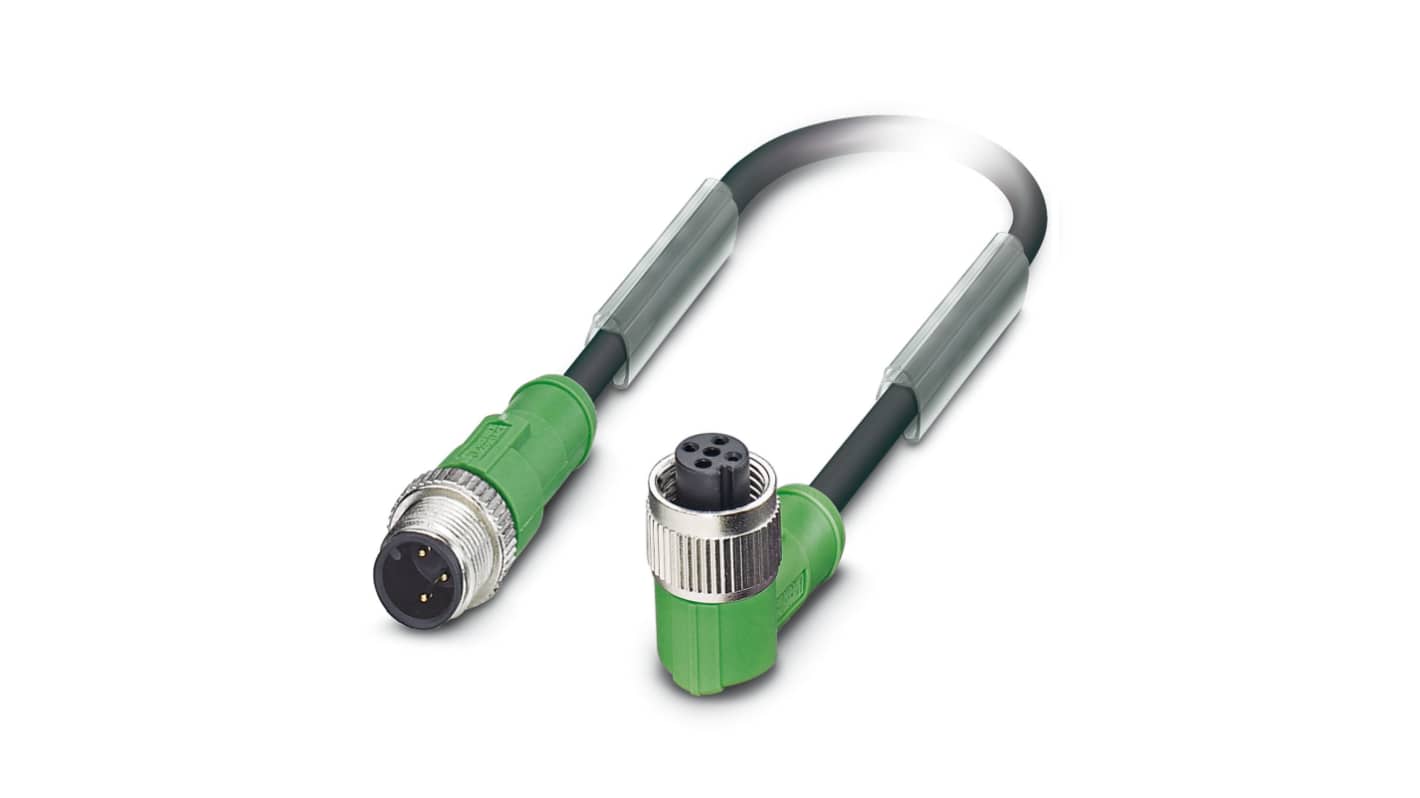

Phoenix Contact Straight Male 3 way M12 to Right Angle Female 3 way M12 Sensor Actuator Cable, 3m
- RS Stock No.:
- 802-6889
- Mfr. Part No.:
- 1681570
- Brand:
- Phoenix Contact
1 In stock - FREE next working day delivery available
Added
Price Each
£26.85
(exc. VAT)
£32.22
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £26.85 |
| 5 + | £25.51 |
- RS Stock No.:
- 802-6889
- Mfr. Part No.:
- 1681570
- Brand:
- Phoenix Contact
Legislation and Compliance
Product Details
Sensor/Actuator 3 Way Cable Assemblies, M12 to M12, PUR Cable
M12 to M12 connector cable assemblies, 3 way in a variety of halogen-free PUR cable lengths, with angled or straight connector versions. A-coded connectors with an IP67 rating once mated.
100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
Operating temperature range -25 to +90 °C
Surge voltage category II
Note
Approvals
UL, cUL, cULus, GOST.
Specifications
Attribute | Value |
|---|---|
| Series | SAC-3P-M12MS/ 3.0-PUR/M12FR |
| Number of Cores | 3 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Colour | Black |
| Length | 3m |
| Sheath Material | Polyurethane PUR |
| Connector 1 Gender | Male |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Orientation | Straight |
| Connector 1 | M12 |
| Connector 2 Orientation | Right Angle |
| Connector 2 | M12 |
| Connector 2 Gender | Female |
| Connector 2 Number of Contacts | 3 |
| Connector 2 Housing Gender | Female |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Connector 1 Housing Gender | Male |
| American Wire Gauge | 22 AWG |
- RS Stock No.:
- 802-6889
- Mfr. Part No.:
- 1681570
- Brand:
- Phoenix Contact
