Phoenix Contact Straight 4 way M8 to Unterminated Sensor Actuator Cable

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£23.94

(exc. VAT)

£28.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
  • Plus 62 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£23.94
5 - 24£22.77
25 +£21.56

*price indicative

RS Stock No.:
802-5482
Distrelec Article No.:
144-18-236
Mfr. Part No.:
1500363
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Connector 1 Orientation

Straight

Connector 1 Number of Contacts

4

Connector 1

M8

Connector 2

Unterminated

Coding

A

Current Rating

4 A

IP Rating

IP67

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+85°C

COO (Country of Origin):
DE

Flush Type Sensor/Actuator M8 Connectors, M8/10/12 Thread Types, Free End Litz Wire

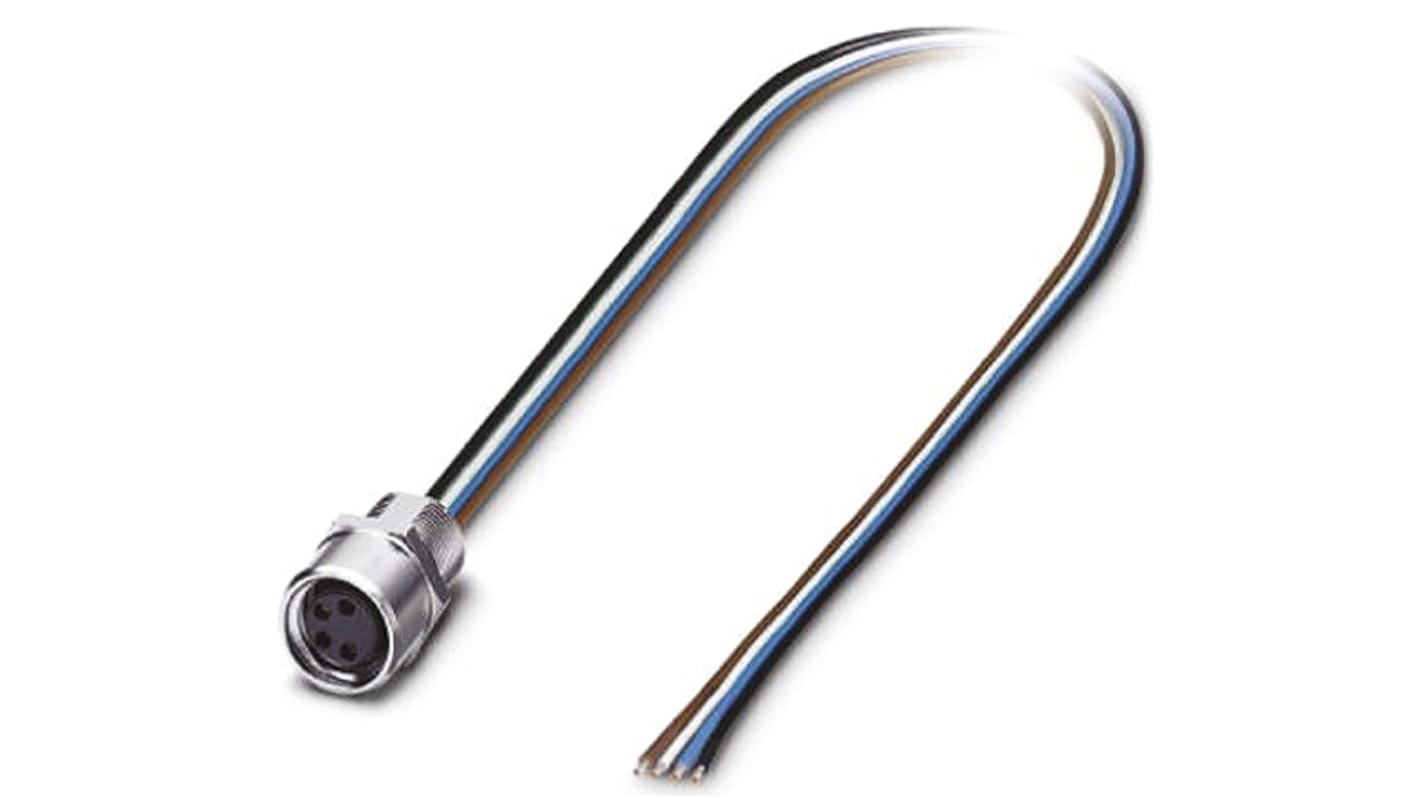

Phoenix contact M8 flush mount connectors with 0.5m of PVC litz wire. These 3 and 4 way panel mount connectors are A-coded and have 3-4 strands of 0.25mm2 free end litz wire measuring 0.5 metres in length to terminate to your particular application, IP67 rated once mated with a rating of 4A at 30V (4 pole) and 4A at 60V (3 Pole) , with a M8/M10/M12 fastening thread where applicable.

Phoenix Contact Flush-Type Connector, 4 Contacts, M8 - SACC-E-M 8FS-4CON-M8/0.5 - 1500363


Power your sensors and actuators in factory automation applications using this flush-type connector from Phoenix Contact. The unit comes pre-assembled with a Litz wire so it's ready to mount for immediate use, saving time during installation.
The connector is sealed on the Litz wire side, so you can be confident of reliable signal transmission with no loss from leakages. A uniform design makes it easy to fit into modular automation systems, so it's a versatile choice.
Nickel-plated brass knurls on the body give good grip for quick and comfortable assembly, while gold contact plating makes this unit highly resilient to rust and corrosion. TPU (thermoplastic elastomer) conductor sheathing protects the cable from damage caused by creep or general wear. This connector is rated IP67 (ingress protection), meaning it's totally dust-resistant and can withstand strong jets of water, so it's suitable for use in tough environments.

• Polymer housing material for durability and insulation against shocks
• Bulkhead mounting type for robust installation
• Wide operating temperature range of -25°C to +85°C for use in extreme environments
