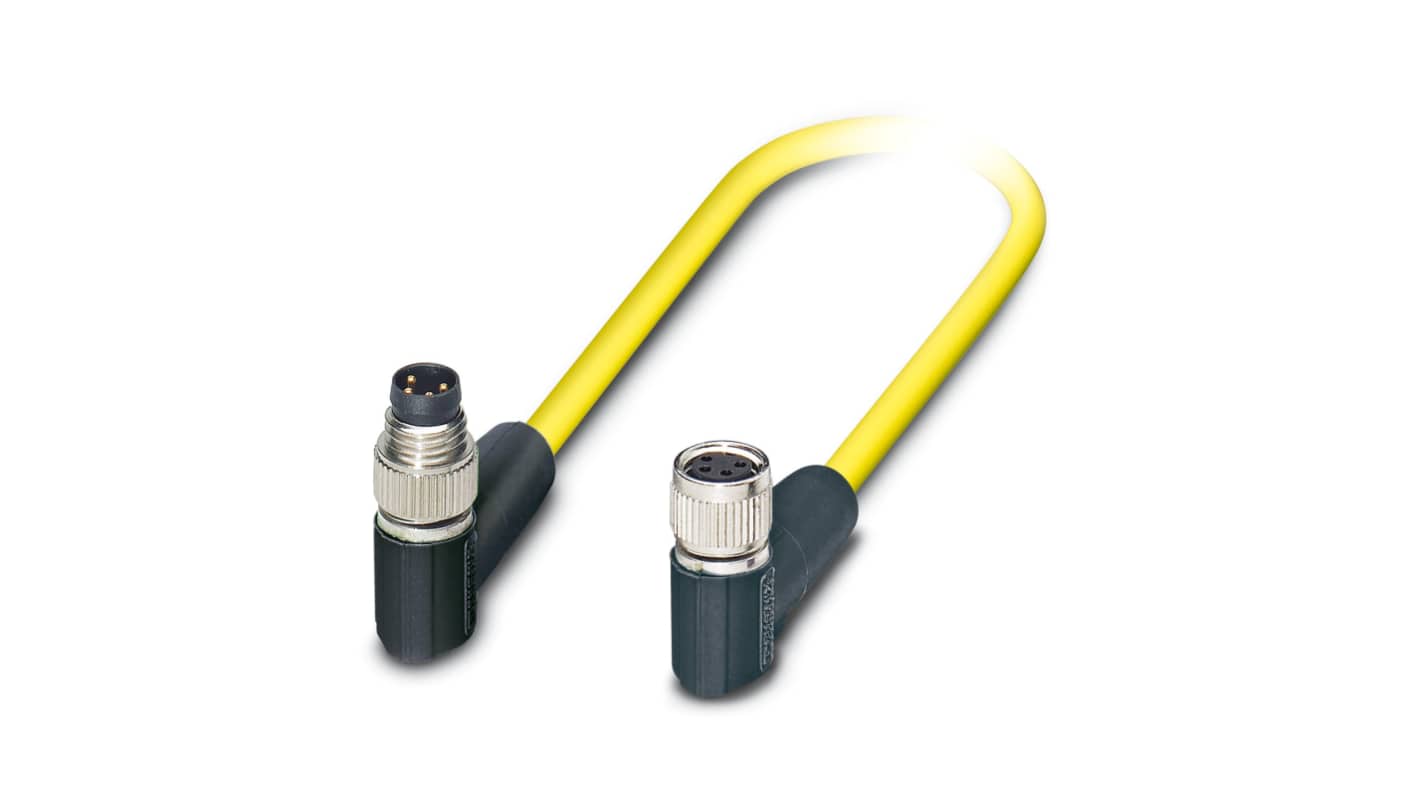

Phoenix Contact Right Angle Female 4 way M8 to Right Angle Male 4 way M8 Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 802-5186
- Mfr. Part No.:
- 1406010
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£1,225.23
(exc. VAT)
£1,470.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,225.23 | £24.505 |
*price indicative
- RS Stock No.:
- 802-5186
- Mfr. Part No.:
- 1406010
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-4P-M8MR/1.5-542/M8FR SH BK | |
| Cross Sectional Area | 0.25 mm² | |
| Sheath Material | PVC | |
| Length | 1.5m | |
| Sheath Colour | Yellow | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M8 | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Right Angle | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Number of Contacts | 4 | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Gender | Male | |
| Connector 2 | M8 | |
| Coding | A | |
| Shielded/Unshielded | Shielded | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 24 AWG | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-M8MR/1.5-542/M8FR SH BK | ||
Cross Sectional Area 0.25 mm² | ||
Sheath Material PVC | ||
Length 1.5m | ||
Sheath Colour Yellow | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M8 | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Housing Gender Male | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Gender Male | ||
Connector 2 M8 | ||
Coding A | ||
Shielded/Unshielded Shielded | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 24 AWG | ||
Sensor/Actuator 4 Way Cable Assemblies, M8 to M8, Shielded
M8 to M8 connector cable assemblies, 4 way, angled or straight connector versions available with various lengths of PVC shielded yellow cable. A-coded connectors with a rating of 4A 30V, these M8 to M8 cable assemblies are IP67 rated once mated.
100 mating cycles
Operating temperature range -25 to +90 °C
Surge voltage category II
Operating temperature range -25 to +90 °C
Surge voltage category II
Approvals
UL Listed, cUL Listed, cULus Listed
