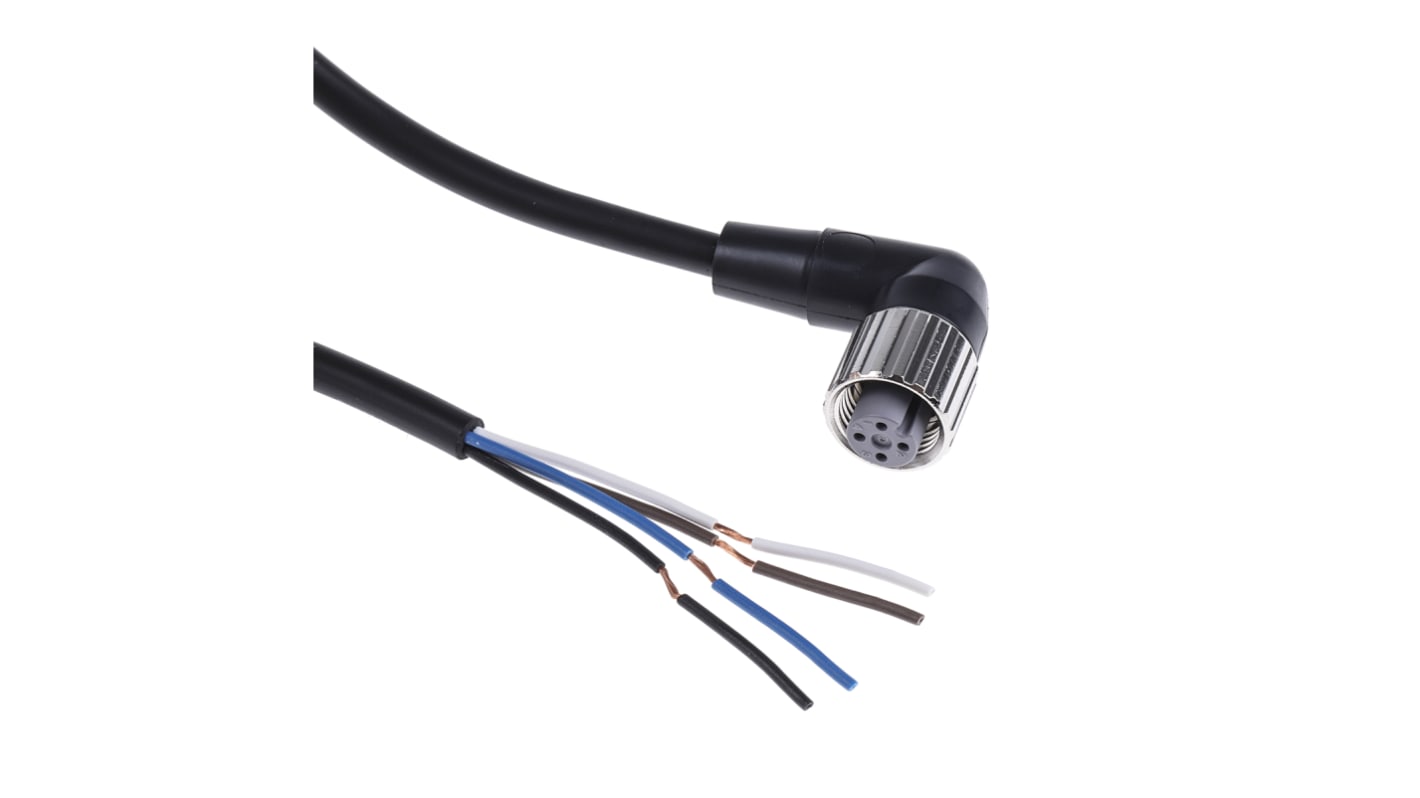

Omron Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 778-8748
- Mfr. Part No.:
- XS2F-M12PVC4A5M
- Brand:
- Omron
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£18.14
(exc. VAT)
£21.77
(inc. VAT)
- RS Stock No.:
- 778-8748
- Mfr. Part No.:
- XS2F-M12PVC4A5M
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Series | XS2F | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 4 | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Length | 5m | |
| Sheath Colour | Black | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 | Unterminated | |
| Current Rating | 4 A | |
| Voltage Rating | 125 V dc | |
| IP Rating | IP67 | |
| Conductor Resistance | 40 mO | |
| American Wire Gauge | 23 AWG | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +80°C | |
| Insulation Material | Vinyl | |
| Fire Behaviour | Flame Retardant | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -10°C | |
| Outer Diameter | 5mm | |
| Operating Temperature Range | -10 → +80 °C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Series XS2F | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 4 | ||
Sheath Material Polyvinyl Chloride PVC | ||
Length 5m | ||
Sheath Colour Black | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Unterminated | ||
Current Rating 4 A | ||
Voltage Rating 125 V dc | ||
IP Rating IP67 | ||
Conductor Resistance 40 mO | ||
American Wire Gauge 23 AWG | ||
Conductor Material Copper | ||
Maximum Operating Temperature +80°C | ||
Insulation Material Vinyl | ||
Fire Behaviour Flame Retardant | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -10°C | ||
Outer Diameter 5mm | ||
Operating Temperature Range -10 → +80 °C | ||
- COO (Country of Origin):
- CN
M8 and M12 Sensor Connectors
The XS and Y92E series of M8 and M12 sensor connectors are suitable for a wide range of applications, the high performance and features of these sensor connectors make them ideal for standard and challenging applications.
M8 and M12 brass female connectors with PVC cable
Suitable for fixed and occasionally moving installations
Suitable for fixed and occasionally moving installations
Omron XS2F Series Sensor Actuator Cable, 5m Length, IP67 - XS2F-M12PVC4A5M
This sensor actuator cable is designed for automation applications, facilitating reliable connections between sensors and actuators. Its robust construction and specialised materials ensure performance in various settings, making it an essential component for professionals in the electronics and electrical fields.
Features & Benefits
• Right angle connector for space-saving installations
• Flame retardant materials to ensure safety
• PVC sheath for enhanced durability and flexibility
• Oil resistant properties suitable for industrial use
• Flame retardant materials to ensure safety
• PVC sheath for enhanced durability and flexibility
• Oil resistant properties suitable for industrial use
Applications
• Used in industrial automation for connecting sensors and actuators
• Ideal for environments where dust and moisture resistance is essential
• Effective in requiring flexible cable routing
• Suitable for machinery maintenance in oil-exposed settings
• Ideal for environments where dust and moisture resistance is essential
• Effective in requiring flexible cable routing
• Suitable for machinery maintenance in oil-exposed settings
How does the oil resistance benefit its longevity?
The oil resistance helps prevent degradation from lubricants and chemicals, extending the cable's lifespan.
What connector orientation is available for this cable?
It features a right angle connector, making installation easier in tight spaces.
Is installation straightforward for this type of product?
The right angle connector simplifies connections, making installation user-friendly even in complex setups.
What is the maximum operating temperature for this cable?
The cable operates effectively within a temperature range of -10 to +80°C, accommodating various environments.
