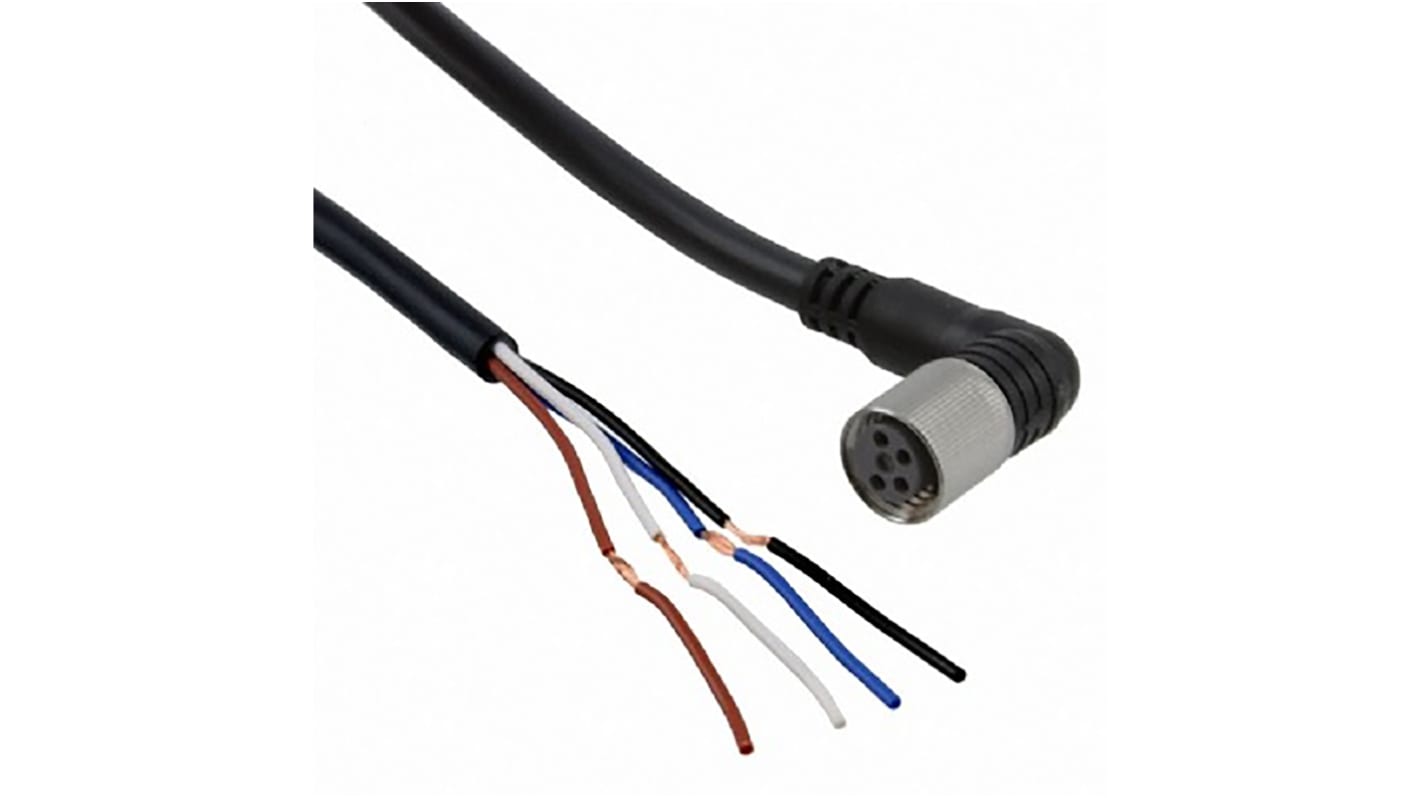

Omron Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 5m

RS Stock No.:: 778-8738
Mfr. Part No.:: XS3F-M8PVC4A5M-EU
Brand:: Omron

Omron Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 5m

Subtotal (1 unit)*

£14.74

(exc. VAT)

£17.69

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Plus 10 unit(s) shipping from 01 December 2025
Final 100 unit(s) shipping from 08 December 2025

Units	Per unit
1 +	£14.74

*price indicative

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

Shop Now

RS Stock No.:: 778-8738
Mfr. Part No.:: XS3F-M8PVC4A5M-EU
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Series	XS3F-M8
	Number of Cores	4
	Cross Sectional Area	0.25 mm²
	Sheath Colour	Black
	Sheath Material	Polyvinyl Chloride PVC
	Length	5m
	Connector 1 Gender	Female
	Connector 1 Number of Contacts	4
	Connector 1 Orientation	Right Angle
	Connector 1	M8
	Connector 2	Unterminated
	Voltage Rating	125 V dc
	Current Rating	1 A
	IP Rating	IP67
	Fire Behaviour	Flame Retardant
	Minimum Bend Radius	36 mm
	Operating Temperature Range	-10 → +80 °C
	Minimum Operating Temperature	-10°C
	Oil Resistant	Yes
	Standards Met	UL
	Outer Diameter	5mm
	Conductor Resistance	40 mO
	American Wire Gauge	23 AWG
	Maximum Operating Temperature	+80°C
	Conductor Material	Copper

	Select all
	Brand Omron
	Series XS3F-M8
	Number of Cores 4
	Cross Sectional Area 0.25 mm²
	Sheath Colour Black
	Sheath Material Polyvinyl Chloride PVC
	Length 5m
	Connector 1 Gender Female
	Connector 1 Number of Contacts 4
	Connector 1 Orientation Right Angle
	Connector 1 M8
	Connector 2 Unterminated
	Voltage Rating 125 V dc
	Current Rating 1 A
	IP Rating IP67
	Fire Behaviour Flame Retardant
	Minimum Bend Radius 36 mm
	Operating Temperature Range -10 → +80 °C
	Minimum Operating Temperature -10°C
	Oil Resistant Yes
	Standards Met UL
	Outer Diameter 5mm
	Conductor Resistance 40 mO
	American Wire Gauge 23 AWG
	Maximum Operating Temperature +80°C
	Conductor Material Copper

Datasheet

COO (Country of Origin):: CN

Omron XS3F-M8 Series Sensor Actuator Cable, 5m Length, 125V DC Voltage Rating - XS3F-M8PVC4A5M-EU

This sensor actuator cable provides reliable communication and connectivity between sensors and actuators in automation systems. It is designed to meet the requirements of various industries, offering robust performance, durability, and flexibility, making it an essential component in electrical setups.

Features & Benefits

• Flame retardant design enhances safety in demanding environments
• Right angle connector optimises space and facilitates installation
• IP67 rating ensures protection against dust and water ingress
• Oil resistant properties extend cable life in challenging conditions
• Durable PVC sheath provides effective insulation

Applications

• Used with industrial machinery for sensor communication
• Appropriate for robotics requiring flexible connectivity solutions
• Employed in control panels for secure actuator connections
• Utilised in automotive for dependable signal transmission

How does the cable perform in extreme temperatures?

The product operates effectively within a temperature range of -10 to +80°C.

Can it be used in environments with exposure to oils?

Yes, it is designed to be oil resistant, making it suitable for such applications.

How many contacts does the connector support?

The connector features four contacts, allowing for efficient data transmission.

Is there a minimum bend radius for installation?

Yes, the cable requires a minimum bend radius of 36mm to avoid damage during installation.
