Brad from Molex Straight Female 3 way M8 to Straight Male 3 way M12 Sensor Actuator Cable, 3m

View all Sensor & Actuator Cables
Bulk discount available

Subtotal (1 unit)*

£24.49

(exc. VAT)

£29.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£24.49
5 - 24£23.26
25 +£22.06

*price indicative

Sensor & Actuator cables to Sensor Accessories
Complete Your Connection with the Right Accessories
Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.
Shop Now
RS Stock No.:
751-8977
Mfr. Part No.:
1200878416
Brand:
Brad from Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Brad from Molex

Series

Micro-Change

Number of Cores

3

Cross Sectional Area

0.25 mm²

Sheath Colour

Black

Sheath Material

PUR

Length

3m

Connector 1 Number of Contacts

3

Connector 1 Orientation

Straight

Connector 1

M8

Connector 1 Gender

Female

Connector 2 Number of Contacts

3

Connector 2

M12

Connector 2 Gender

Male

Connector 2 Housing Gender

Male

Connector 2 Orientation

Straight

Coding

A

Shielded/Unshielded

Unshielded

Current Rating

4 A

Voltage Rating

60 V, 75 V

IP Rating

IP68

American Wire Gauge

24 AWG

Maximum Operating Temperature

+80°C

Connector 1 Housing Gender

Female

Conductor Material

Copper Alloy

Minimum Operating Temperature

-25°C

Cable Shape

Multicore

Insulation Material

TPU

Operating Temperature Range

-25 → +80 °C

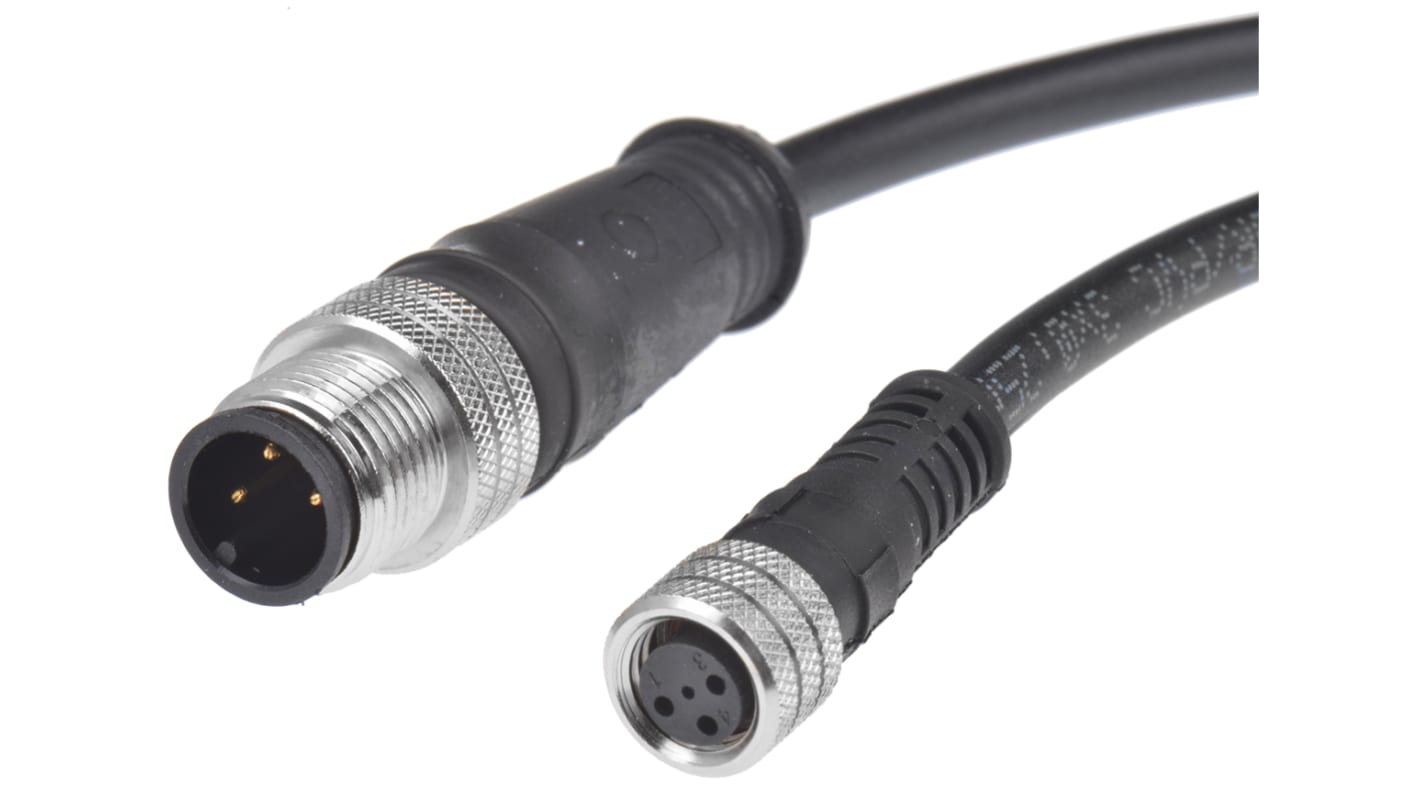

Brad® Nano-Change® M8 Female to Micro-Change® M12 Male Cordsets


Brad® Nano-Change® to Micro-Change® double ended cordsets with a M8 compact design suitable for use with miniature sensors and a larger M12 .

IEC compliant M8 to M12 cordset assembly with threaded couplers
M8 compact design for space sensitive applications
Anti vibration feature
Cable: Black PUR jacket, 0.25mm2, 65x0.07 conductors


Brad Harrison - M8


The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.
