Brad® Nano-Change® M8 single ended female cordsets with a compact design suitable for use with miniature sensors. These Brad® Nano-Change® M8 cordsets have a PUR connector body and contact carrier with gold plated copper alloy contacts and are available with straight or right angle connector configurations with different cable options. The LED versions of these Brad® Nano-Change® M8 single ended female cordsets (stock numbers 751-8930 and 751-8933) provide power and signal trigger indication for PNP sensors

IEC compliant M8 cordset assembly
Compact design for space sensitive applications
LED indication for power and signal trigger
Anti vibration feature
IP67, NEMA 6 rated

Cable Types:
40xxxxE02xxxx: Black PVC jacket, 0.25mm² PVC conductors,300V, 80°C, UL AWM 2464
40xxxxP02xxxx: Black PUR/PVC jacket, 0.25mm² PVC conductors, 300V, 80°C
40xxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors,300V, 80°C, Low Smoke/Zero Halogen (LS0H), UL AWM 21198
Configuration:
403000, 404000: Female Straight
403001, 404001: Fema;le Right Angle
4030P1: Female Right Angle with Indicating LEDs

UL File No.: E152210 (PVC versions)

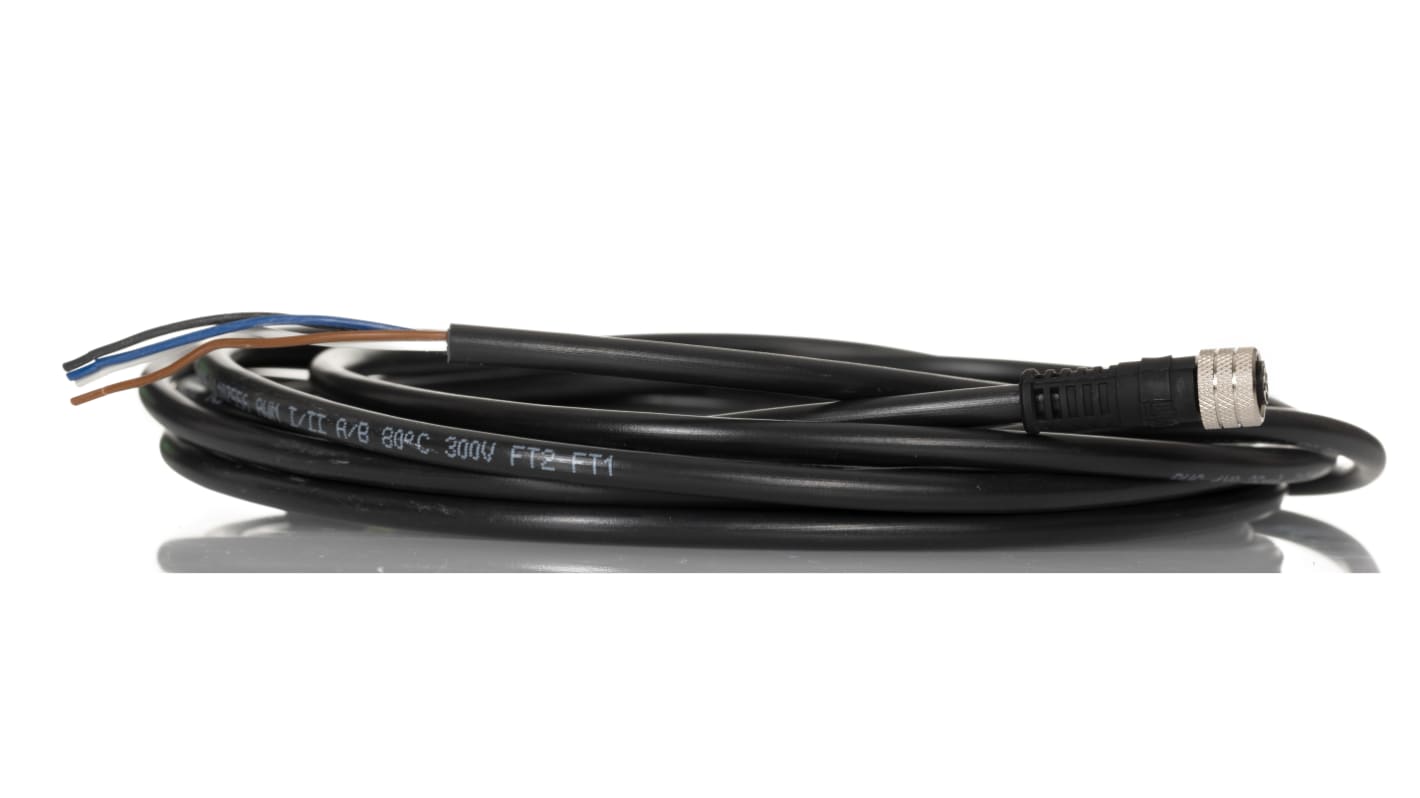

This sensor actuator cable features a robust construction with an M8 female connector, ensuring reliable connectivity in various applications. With a copper alloy conductor and PVC sheath, this cable is designed to withstand demanding environments while providing secure data transmission. The IP67 rating offers protection against dust and water ingress, making it suitable for industrial settings. The 4A current rating, 60V AC voltage rating, and unshielded design further enhance the performance of this cable.

• Copper alloy conductor for efficient signal transmission
• M8 female connector for easy installation and connectivity
• PVC sheath for durability and protection against external elements
• 5m length allows flexibility in setup and positioning
• IP67 rating ensures resistance to dust and water ingress
• 4A current rating supports high-power applications
• Unshielded design simplifies installation and reduces interference
• 60V AC voltage rating for versatile compatibility

• Ideal for sensor and actuator connections in industrial automation systems
• Suitable for use in machinery and equipment requiring reliable signal transmission
• Can be used for control systems in manufacturing and processing industries

This sensor actuator cable is designed to withstand demanding conditions, making it suitable for use in various industrial applications.

With its copper alloy conductor and IP67-rated construction, this cable ensures secure and stable data transmission.

The M8 female connector allows for easy and straightforward installation, making it convenient for use in different settings.

Brad Harrison - M8

The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.
