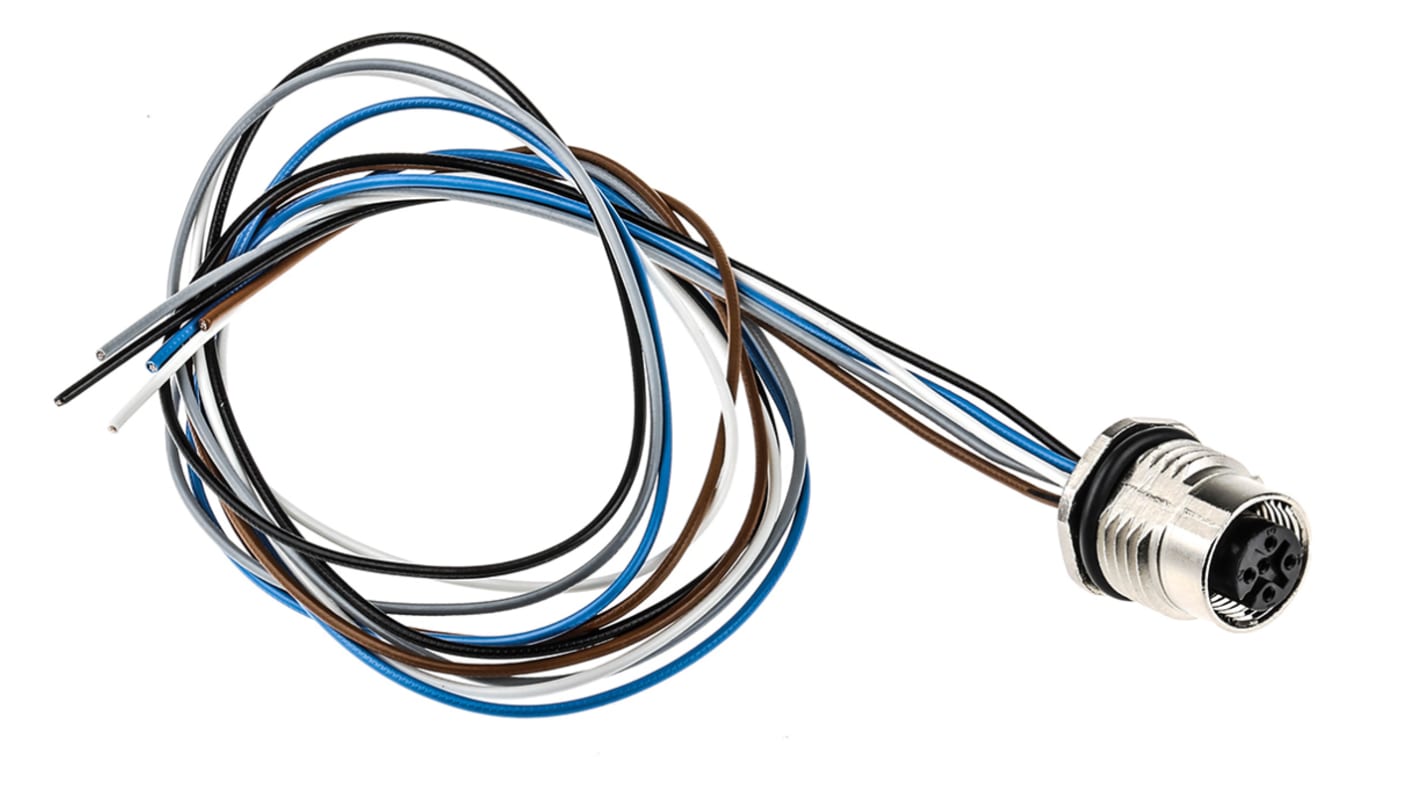

Phoenix Contact Female 5 way M12 to Sensor Actuator Cable, 500mm

RS Stock No.:: 721-1288
Mfr. Part No.:: 1419658
Brand:: Phoenix Contact

Phoenix Contact Female 5 way M12 to Sensor Actuator Cable, 500mm

Bulk discount available

Subtotal (1 unit)*

£19.92

(exc. VAT)

£23.90

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

31 unit(s) ready to ship from another location
Plus 32 unit(s) shipping from 26 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£19.92
5 - 24	£18.94
25 - 49	£17.93
50 +	£16.95

*price indicative

RS Stock No.:: 721-1288
Mfr. Part No.:: 1419658
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Series	SACC-DSI
	Number of Cores	5
	Cross Sectional Area	0.34 mm²
	Sheath Colour	Black, Blue, Brown, Grey, White
	Sheath Material	Polyurethane PUR
	Length	500mm
	Connector 1	M12
	Connector 1 Number of Contacts	5
	Connector 1 Gender	Female
	Coding	A
	Mounting Type	Panel Mount
	Shielded/Unshielded	Unshielded
	Voltage Rating	60 V
	Current Rating	4 A
	IP Rating	IP67
	American Wire Gauge	22 AWG
	Conductor Resistance	57.6 mO/m
	Insulation Material	TPE
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Conductor Material	Tinned Copper

	Select all
	Brand Phoenix Contact
	Series SACC-DSI
	Number of Cores 5
	Cross Sectional Area 0.34 mm²
	Sheath Colour Black, Blue, Brown, Grey, White
	Sheath Material Polyurethane PUR
	Length 500mm
	Connector 1 M12
	Connector 1 Number of Contacts 5
	Connector 1 Gender Female
	Coding A
	Mounting Type Panel Mount
	Shielded/Unshielded Unshielded
	Voltage Rating 60 V
	Current Rating 4 A
	IP Rating IP67
	American Wire Gauge 22 AWG
	Conductor Resistance 57.6 mO/m
	Insulation Material TPE
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Conductor Material Tinned Copper

COO (Country of Origin):: DE

Phoenix Contact SACC-DSI Series Sensor Actuator Cable, 5 Cores, IP67 - 1419658

This sensor actuator cable is a robust solution designed for reliable connectivity in demanding environments. Featuring a length of 500mm, the unshielded M12 panel mount cable is constructed with durable materials to withstand harsh conditions. The cable incorporates five cores with a cross-sectional area of 0.34mm², making it suitable for various applications in automation and control systems.

Features & Benefits

• Unshielded design ensures ease of installation in panel mounts
• Tinned copper conductor enhances signal transmission longevity
• PUR sheath promotes flexibility and chemical resistance
• Capable of operating safely in temperatures ranging from -40°C to +85°C

Applications

• Suitable for automation and control in electrical installations
• Ideal for connections in robotics and sensor-driven systems
• Utilised in machinery where a reliable actuator interface is required
• Commonly employed in situations requiring IP67 protection against moisture

What type of conductor is used in this cable, and why?

The cable uses tinned copper conductors, which improve corrosion resistance and ensure reliable signal transmission in industrial environments. This enhances longevity and performance in challenging conditions.

How does the IP67 rating benefit its application?

The IP67 rating indicates complete protection against dust and immersion in water up to . This feature is crucial for outdoor applications, ensuring the cable operates optimally even when exposed to harsh weather.

What measures are in place to ensure the cable remains leak-tight?

The cable is designed with a sealed litz wire end, which optimises leak-tightness, preventing moisture ingress and enhancing overall reliability in various environments.
