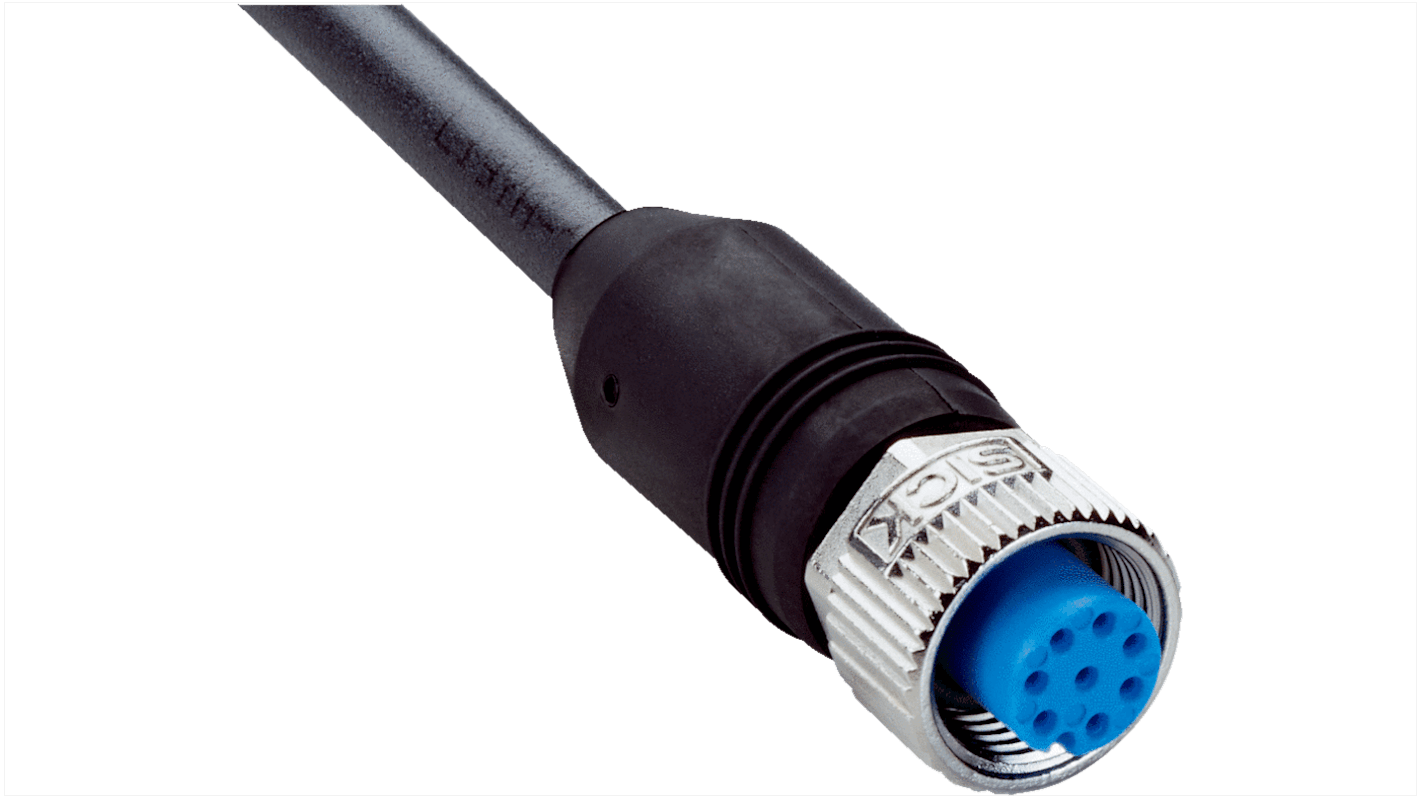

SICK Straight Female 8 way M12 to Unterminated Connector & Cable, 30m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£102.17

(exc. VAT)

£122.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£102.17

*price indicative

RS Stock No.:
285-9149
Mfr. Part No.:
YF2A18-300UA5XLEAX / 2095681
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Series

YF2A18

Number of Cores

8

Cross Sectional Area

0.25 mm²

Sheath Colour

Black

Length

30m

Sheath Material

Polyurethane PUR

Connector 1 Number of Contacts

8

Connector 1 Orientation

Straight

Connector 1 Gender

Female

Connector 1

M12

Connector 2

Unterminated

Coding

A

Shielding

Unshielded

Shielded/Unshielded

Unshielded

Voltage Rating

30 V ac/dc

Current Rating

2 A

IP Rating

IP65, IP66K, IP67

Outer Diameter

5.8mm

Minimum Bend Radius

58 mm

Connector 1 Housing Gender

Female

Maximum Operating Temperature

+80°C

American Wire Gauge

24 AWG

Minimum Operating Temperature

-25°C

Operating Temperature Range

-25 → 80 °C

COO (Country of Origin):
CZ

Overview


Connection cable with a locking plug connector screw connection. Locking nut is made of Zinc die-cast material, and is nickel-plated. It is used in zones with oils and lubricants, in rag chain operation, in robot.

-

At a glance


-

Your Benefit


Applications


Note


Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
