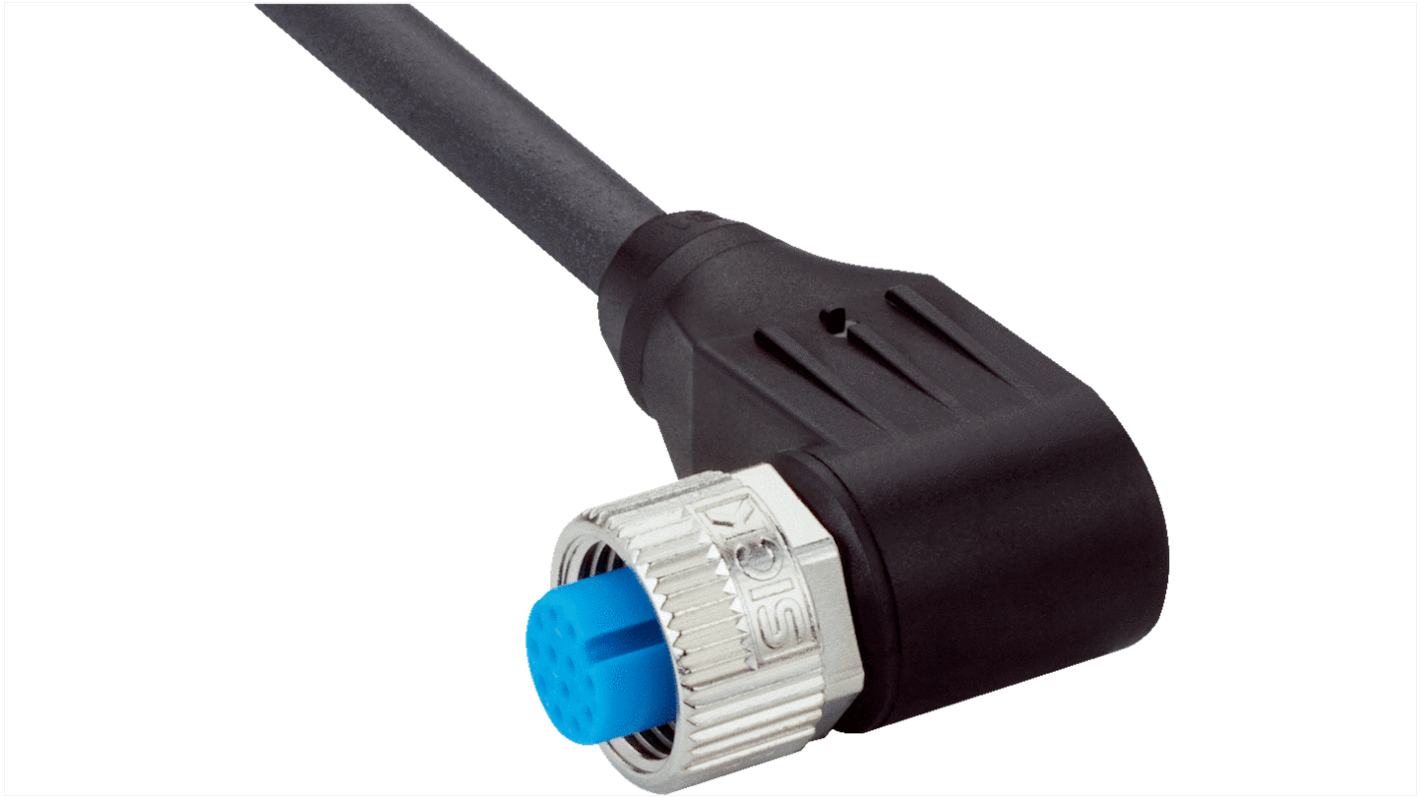

SICK Right Angle Female 12 way M12 to Connector & Cable, 5m

RS Stock No.:: 285-1520
Mfr. Part No.:: YG2A1B-050UD1XLEAX
Brand:: SICK

SICK Right Angle Female 12 way M12 to Connector & Cable, 5m

Subtotal (1 unit)*

£56.76

(exc. VAT)

£68.11

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£56.76

*price indicative

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

Shop Now

RS Stock No.:: 285-1520
Mfr. Part No.:: YG2A1B-050UD1XLEAX
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Series	YG2A1B
	Number of Cores	12
	Cross Sectional Area	0.14 mm²
	Length	5m
	Sheath Material	Polyurethane PUR
	Sheath Colour	Black
	Connector 1 Orientation	Right Angle
	Connector 1 Number of Contacts	12
	Connector 1	M12
	Connector 1 Gender	Female
	Coding	A
	Mounting Type	Plug-In
	Shielding	Unshielded
	Shielded/Unshielded	Unshielded
	Voltage Rating	1.5 kV
	Current Rating	1.5 A
	IP Rating	IP65, IP66, IP67
	Operating Temperature Range	-25 → 85 °C
	Maximum Operating Temperature	+85°C
	American Wire Gauge	26
	Outer Diameter	6mm
	Fire Behaviour	Flame Retardant
	Cable Shape	Round
	Oil Resistant	Yes
	Minimum Operating Temperature	-25°C
	Connector 1 Housing Gender	Female
	Minimum Bend Radius	60 mm
	Standards Met	UL

	Select all
	Brand SICK
	Series YG2A1B
	Number of Cores 12
	Cross Sectional Area 0.14 mm²
	Length 5m
	Sheath Material Polyurethane PUR
	Sheath Colour Black
	Connector 1 Orientation Right Angle
	Connector 1 Number of Contacts 12
	Connector 1 M12
	Connector 1 Gender Female
	Coding A
	Mounting Type Plug-In
	Shielding Unshielded
	Shielded/Unshielded Unshielded
	Voltage Rating 1.5 kV
	Current Rating 1.5 A
	IP Rating IP65, IP66, IP67
	Operating Temperature Range -25 → 85 °C
	Maximum Operating Temperature +85°C
	American Wire Gauge 26
	Outer Diameter 6mm
	Fire Behaviour Flame Retardant
	Cable Shape Round
	Oil Resistant Yes
	Minimum Operating Temperature -25°C
	Connector 1 Housing Gender Female
	Minimum Bend Radius 60 mm
	Standards Met UL

Datasheet - YG2A1B-050UD1XLEAX

COO (Country of Origin):: DE

Overview

The connecting cables are designed for versatile and secure connectivity, featuring a female connector (M12, 12 pin, angled, A coded) on one end at Head A and Flying leads on the other end at Head B, providing flexibility for various connection configurations. The locking plug connector utilizes a reliable screw connection mechanism, and the connectors are constructed with durable TPU material in a sleek black color.

The zinc die cast, nickel plated locking nut and FKM seal material ensure effective protection. With a tightening torque of 0.6 Nm and a width across flats of 13, these cables are easy to install and maintain. The 5 meter cable offers a 12 wire configuration, employing PUR (halogen free) material for enhanced durability. The black PUR jacket, with a diameter of 6 mm and a conductor cross section of 0.14 mm².

At a glance

Your Benefit

Applications

Zones with oils and lubricants
Drag chain operation
Robot
