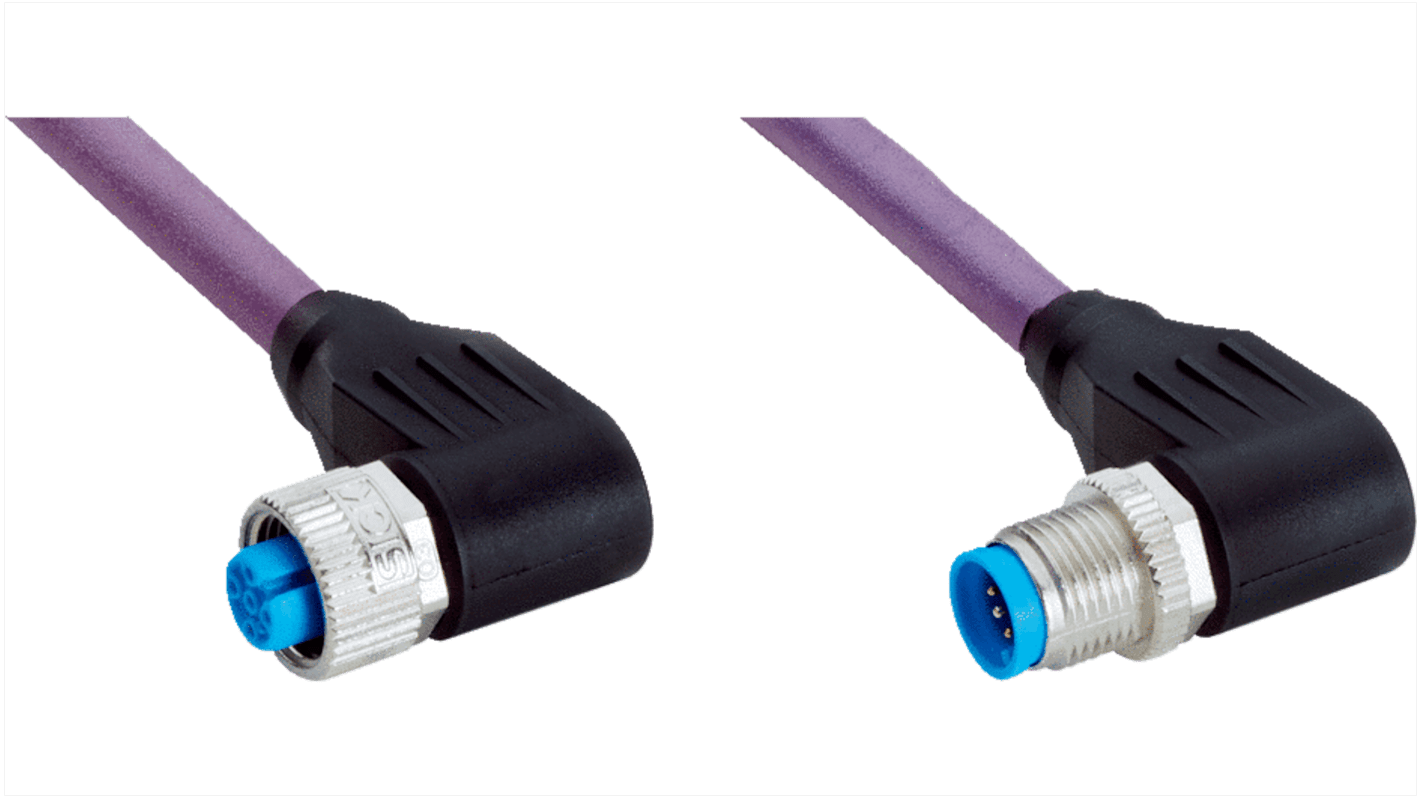

SICK Right Angle Female 5 way M12 to Right Angle Male 5 way M12 Connector & Cable, 5m
- RS Stock No.:
- 285-1509
- Mfr. Part No.:
- YG2A15-050C1BN2A15
- Brand:
- SICK
Subtotal (1 unit)*
£47.11
(exc. VAT)
£56.53
(inc. VAT)
FREE delivery for orders over £50.00
- 999,999,999 unit(s) shipping from 08 December 2025
Units | Per unit |
|---|---|
| 1 + | £47.11 |
*price indicative
- RS Stock No.:
- 285-1509
- Mfr. Part No.:
- YG2A15-050C1BN2A15
- Brand:
- SICK
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Series | YG2A15 | |
| Cross Sectional Area | 2 x 0.34 mm² +2 x 0.25 mm² +1 x 0.34 mm² | |
| Number of Cores | 5 | |
| Length | 5m | |
| Sheath Colour | Purple | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Right Angle | |
| Connector 2 Housing Gender | Male | |
| Connector 2 | M12 | |
| Connector 2 Gender | Male | |
| Connector 2 Orientation | Right Angle | |
| Connector 2 Number of Contacts | 5 | |
| Coding | A | |
| Mounting Type | Plug-In | |
| Shielding | Unshielded | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 1.5 kV | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP66K, IP67 | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Flame Retardant | |
| Cable Shape | Round | |
| Minimum Operating Temperature | -30°C | |
| Operating Temperature Range | -30 → 70 °C | |
| Outer Diameter | 6.9mm | |
| Connector 1 Housing Gender | Female | |
| Standards Met | IEC 60332-1, UL 1581 FT2 | |
Select all | ||
|---|---|---|
Brand SICK | ||
Series YG2A15 | ||
Cross Sectional Area 2 x 0.34 mm² +2 x 0.25 mm² +1 x 0.34 mm² | ||
Number of Cores 5 | ||
Length 5m | ||
Sheath Colour Purple | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Housing Gender Male | ||
Connector 2 M12 | ||
Connector 2 Gender Male | ||
Connector 2 Orientation Right Angle | ||
Connector 2 Number of Contacts 5 | ||
Coding A | ||
Mounting Type Plug-In | ||
Shielding Unshielded | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 1.5 kV | ||
Current Rating 4 A | ||
IP Rating IP65, IP66K, IP67 | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Cable Shape Round | ||
Minimum Operating Temperature -30°C | ||
Operating Temperature Range -30 → 70 °C | ||
Outer Diameter 6.9mm | ||
Connector 1 Housing Gender Female | ||
Standards Met IEC 60332-1, UL 1581 FT2 | ||
- COO (Country of Origin):
- CZ
