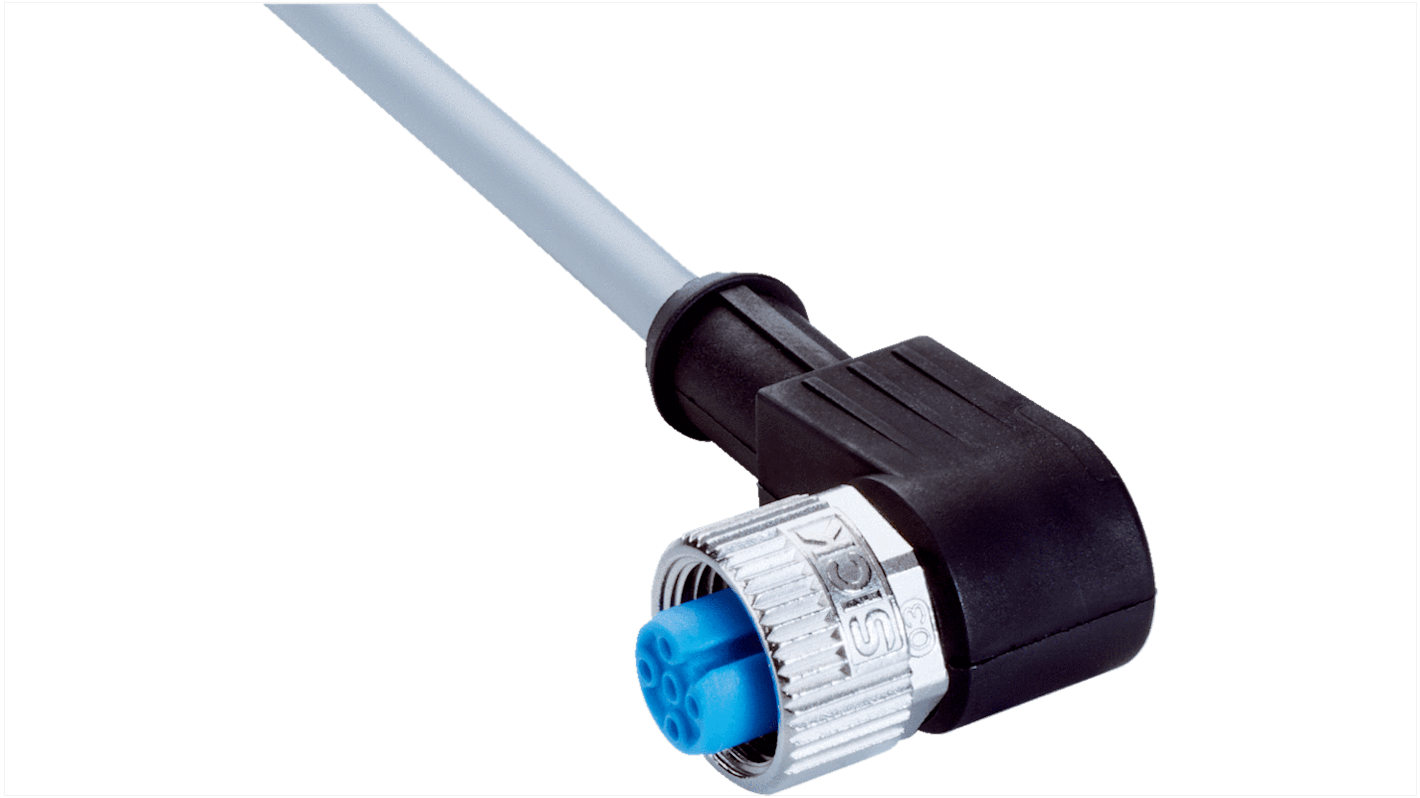

SICK Right Angle Female 4 way M12 to Connector & Cable, 25m
- RS Stock No.:
- 285-1505
- Mfr. Part No.:
- YG2A14-250VB3XLEAX
- Brand:
- SICK
Subtotal (1 unit)*
£32.16
(exc. VAT)
£38.59
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 29 October 2025
- Plus 999,999,995 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.16 |
*price indicative
- RS Stock No.:
- 285-1505
- Mfr. Part No.:
- YG2A14-250VB3XLEAX
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Series | YG2A14 | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Grey | |
| Length | 25m | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Coding | A | |
| Mounting Type | Plug-In | |
| Shielded/Unshielded | Unshielded | |
| Shielding | Unshielded | |
| Voltage Rating | 2.5 kV | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP66K, IP67 | |
| Outer Diameter | 5mm | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | UL | |
| Cable Shape | Round | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -5°C | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -5 → 80 °C | |
| American Wire Gauge | 22 | |
| Minimum Bend Radius | 50 mm | |
Select all | ||
|---|---|---|
Brand SICK | ||
Series YG2A14 | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Grey | ||
Length 25m | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Coding A | ||
Mounting Type Plug-In | ||
Shielded/Unshielded Unshielded | ||
Shielding Unshielded | ||
Voltage Rating 2.5 kV | ||
Current Rating 4 A | ||
IP Rating IP65, IP66K, IP67 | ||
Outer Diameter 5mm | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Standards Met UL | ||
Cable Shape Round | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -5°C | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -5 → 80 °C | ||
American Wire Gauge 22 | ||
Minimum Bend Radius 50 mm | ||
- COO (Country of Origin):
- CZ
Overview
The connecting cables exhibit a versatile design, featuring a female connector (M12, 4 pin, angled, A coded) on one end at Head A and Flying leads on the other end at Head B, providing flexibility for various connection configurations. The locking plug connector utilizes a secure screw connection and is constructed with durable TPU material in a sleek black color.
The locking nut is made of zinc die cast, nickel plated material, and the seal material is FKM, ensuring reliable protection. With a tightening torque of 0.6 Nm and a width across flats of 13, these cables are easy to install and maintain. The cables extend up to 25 meters, employing a 4 wire configuration with PVC construction, offering durability for diverse applications. The PVC jacket, in a distinctive grey color, encompasses a cable diameter of 5 mm and a conductor cross section of 0.34 mm².
At a glance
-
Your Benefit
Applications
Zones with chemicals
