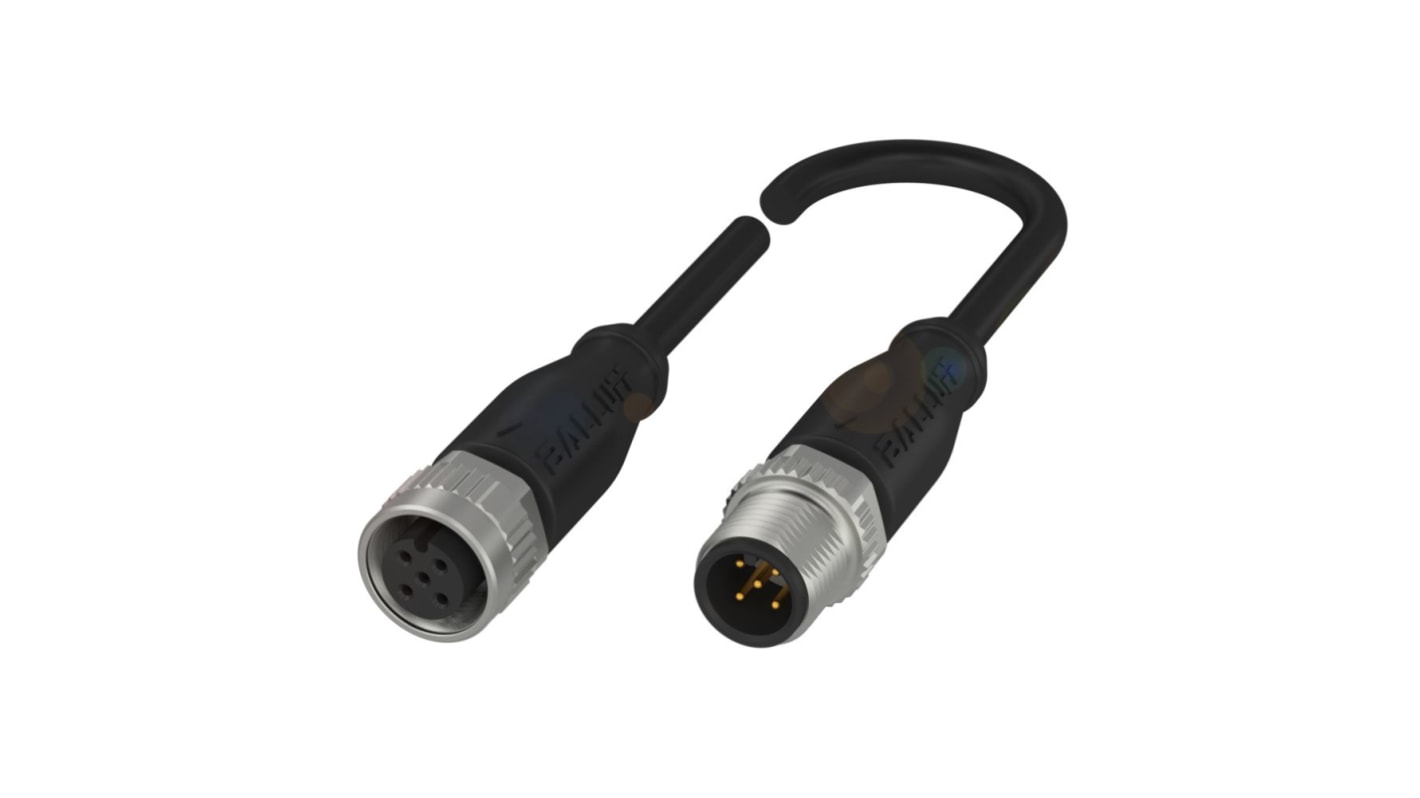

BALLUFF Straight Female M12 to Straight Male M12 Sensor Actuator Cable, 1m

View all Sensor & Actuator Cables

Subtotal (1 unit)*

£18.44

(exc. VAT)

£22.13

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£18.44

*price indicative

RS Stock No.:
242-0067
Mfr. Part No.:
BCC09FN
Brand:
BALLUFF
Find similar products by selecting one or more attributes.
Select all

Brand

BALLUFF

Series

BCC09

Number of Cores

5

Sheath Material

PUR

Sheath Colour

Black

Length

1m

Connector 1 Gender

Female

Connector 1

M12

Connector 1 Orientation

Straight

Connector 2

M12

Connector 2 Gender

Male

Connector 2 Orientation

Straight

Coding

A

IP Rating

IP67, IP68, IP69K

COO (Country of Origin):
HU
The Balluff robust double-ended cordset is used for signals, data and power transmission continuously and securely. It is a PUR black, 1 m, drag chain compatible cable having M12x1-female, straight, 5-pin A-coded connection and M12x1-male, straight, 5-pin

-50 °C to 90 °C cable temperature at fixed routing
-25 °C to 90 °C cable temperature at flexible routing
60 VDC / 60 VAC Operating voltage Ub
IP67, IP68, IP69K/IP67, IP68, IP69K protection rating for both connections
CE, cULus, EAC, WEEE Approval/Conformi
