RS PRO Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 208-0534
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£12.02
(exc. VAT)
£14.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 88 unit(s) shipping from 29 January 2026
- Plus 999,999,892 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £12.02 |
5 - 9 | £11.78 |
10 - 49 | £11.55 |
50 - 99 | £10.82 |
100 + | £9.61 |
*price indicative
- RS Stock No.:
- 208-0534
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 4 | |
Length | 2m | |
Sheath Material | PVC | |
Sheath Colour | Black | |
Connector 1 Gender | Female | |
Connector 1 | M12 | |
Connector 1 Orientation | Right Angle | |
Connector 1 Number of Contacts | 4 | |
Connector 2 | Unterminated | |
Current Rating | 4 A | |
Voltage Rating | 30 V | |
IP Rating | IP67 | |
Cable Shape | Multicore | |
Maximum Operating Temperature | +75°C | |
Minimum Operating Temperature | -25°C | |
Connector 1 Housing Gender | Female | |
Outer Diameter | 4.8mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Length 2m | ||
Sheath Material PVC | ||
Sheath Colour Black | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Unterminated | ||
Current Rating 4 A | ||
Voltage Rating 30 V | ||
IP Rating IP67 | ||
Cable Shape Multicore | ||
Maximum Operating Temperature +75°C | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Female | ||
Outer Diameter 4.8mm | ||
- COO (Country of Origin):
- IN

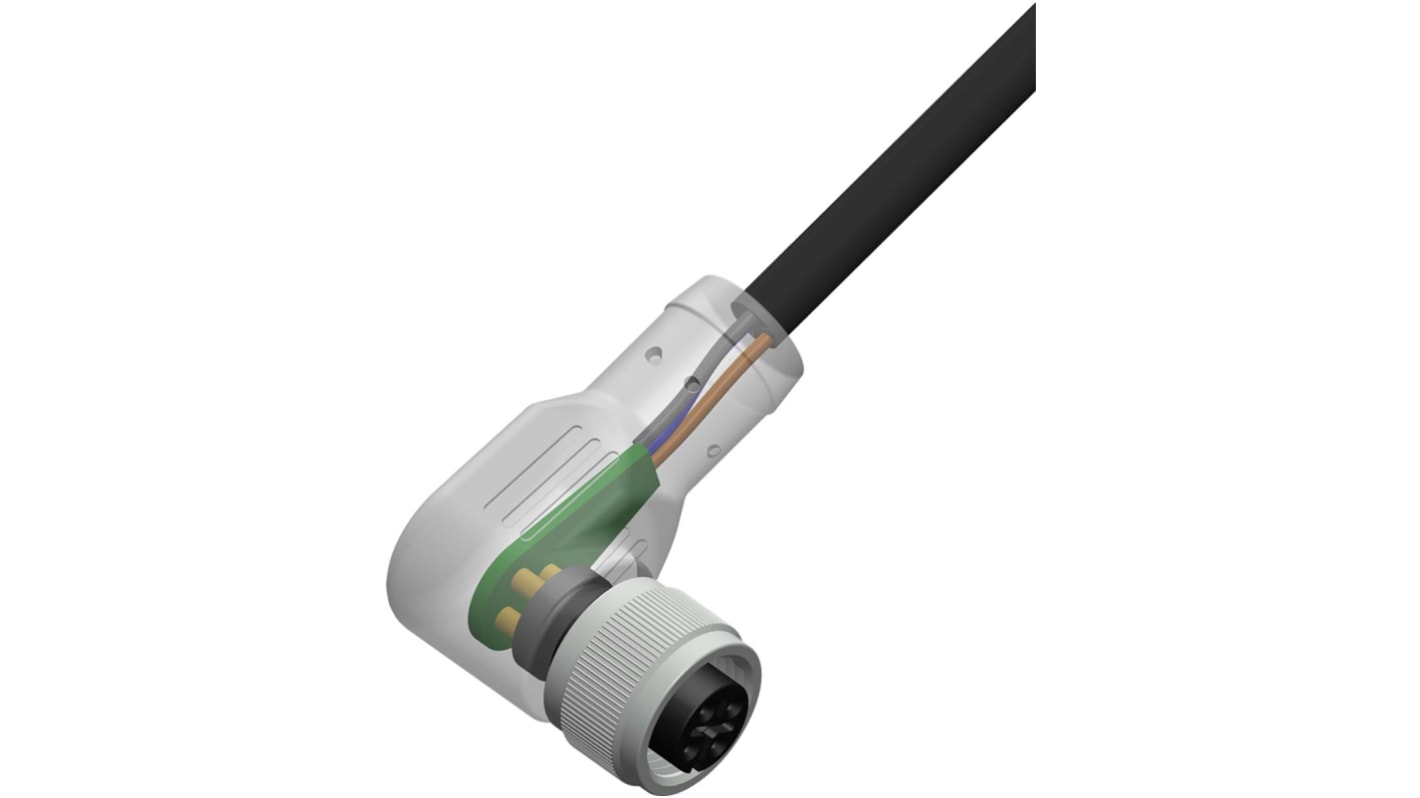

RS PRO M12 Single Ended Cable Assembly, 2 m
Introducing the range of RS PRO Cables, ideal for use with industrial sensor and automation equipment. This cable has been designed with a secure coupling nut and a partially stripped free end connection on the other side, allowing complete flexibility for connection. The 2 m PVC multi-strand cable is ultra-durable, protecting the internal wires, and easy to install, making it an ideal solution where secure and reliable data transference is required.
Features and Benefits:
- This high-performance RS PRO cable comes with an M12 connector, designed with a brass nickel-plated coupling nut to a partially stripped free end connection, allowing complete flexibility for connection
- The wire is un-terminated and has an insulation resistance of is more than/equal to 100 Mega Ohms
- The 2 m PVC cable is ultra-durable, making it ideal for use in difficult environments with extreme temperatures, UV exposure or where contact with chemicals or oils could occur
- It is quick and easy to install, making it user-friendly and saving on valuable installation time
- This type of industrial cable is most suited to sensing and instrumentation applications in industrial environments
Applications:
Industrial automation cable assemblies are versatile products that transmit electrical power to machinery or peripheral components, like sensors. They are generally designed to withstand extreme temperature changes and moisture, exposure to chemicals, oils and UV, as well as any abrasions or wear that can be caused by machinery vibration to ensure the protection of the internal wires. These types of cable assemblies are most commonly found in:
- Aerospace and aviation
- Construction machinery and industrial engineering
- Industrial automation and manufacturing
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
