MPN

RS PRO Straight Female 8 way M12 to Right Angle Male 8 way M12 Sensor Actuator Cable, 5m

RS Stock No.:: 206-7656
Brand:: RS PRO

RS PRO Straight Female 8 way M12 to Right Angle Male 8 way M12 Sensor Actuator Cable, 5m

Save 20% when you buy 50 units

Subtotal (1 unit)*

£45.35

(exc. VAT)

£54.42

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location
Plus 15 unit(s) shipping from 07 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£45.35
5 - 9	£44.45
10 - 24	£43.08
25 - 49	£39.92
50 +	£36.28

*price indicative

RS Stock No.:: 206-7656
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	0.25 mm²
	Number of Cores	8
	Sheath Material	PUR
	Sheath Colour	Black
	Length	5m
	Connector 1	M12
	Connector 1 Gender	Female
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	M12
	Connector 2 Housing Gender	Male
	Connector 2 Orientation	Right Angle
	Voltage Rating	30 V
	Current Rating	2 A
	IP Rating	IP67
	Conductor Material	Copper
	Operating Temperature Range	-25 °C→+75 °C
	Insulation Material	PUR
	Outer Diameter	6.8mm
	Connector 1 Housing Gender	Female
	Maximum Operating Temperature	+75°C
	Minimum Operating Temperature	-25°C
	Cable Shape	Multicore

	Select all
	Brand RS PRO
	Cross Sectional Area 0.25 mm²
	Number of Cores 8
	Sheath Material PUR
	Sheath Colour Black
	Length 5m
	Connector 1 M12
	Connector 1 Gender Female
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 M12
	Connector 2 Housing Gender Male
	Connector 2 Orientation Right Angle
	Voltage Rating 30 V
	Current Rating 2 A
	IP Rating IP67
	Conductor Material Copper
	Operating Temperature Range -25 °C→+75 °C
	Insulation Material PUR
	Outer Diameter 6.8mm
	Connector 1 Housing Gender Female
	Maximum Operating Temperature +75°C
	Minimum Operating Temperature -25°C
	Cable Shape Multicore

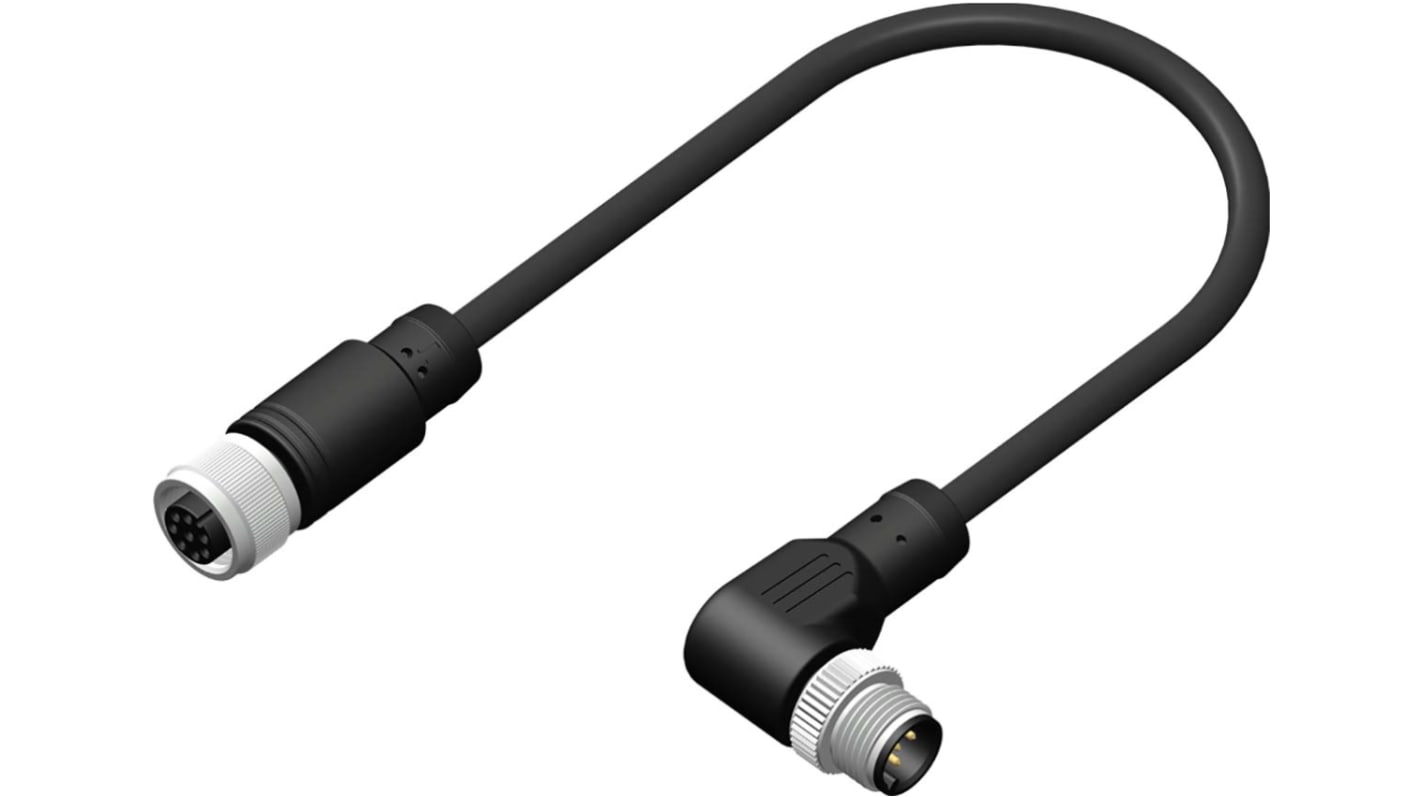

RS PRO M12 Connector Cable Assembly, 5 m

Introducing the range of RS PRO Cables, ideal for use with industrial sensor and automation equipment. This cable has been designed with a secure coupling nut and a male to female connection, allowing complete flexibility for connection. The 5 m PUR multi-strand cable is ultra-durable, protecting the internal wires, and easy to install, making it an ideal solution where secure and reliable data transference is required.

Features and Benefits:

This high-performance RS PRO cable comes with an M12 connector, designed with a brass nickel-plated coupling nut male to female connection, allowing complete flexibility for connection

The wire is un-terminated and has an insulation resistance of less than 100 MΩ

The 5 m PUR cable is ultra-durable, making it ideal for use in difficult environments with extreme temperatures, UV exposure or where contact with chemicals or oils could occur

It is quick and easy to install, making it user-friendly and saving on valuable installation time

This type of industrial cable is most suited to sensing and instrumentation applications in industrial environments

Applications:

Industrial automation cable assemblies are versatile products that transmit electrical power to machinery or peripheral components, like sensors. They are generally designed to withstand extreme temperature changes and moisture, exposure to chemicals, oils and UV, as well as any abrasions or wear that can be caused by machinery vibration to ensure the protection of the internal wires. These types of cable assemblies are most commonly found in:

Aerospace and aviation

Construction machinery and industrial engineering

Industrial automation and manufacturing
