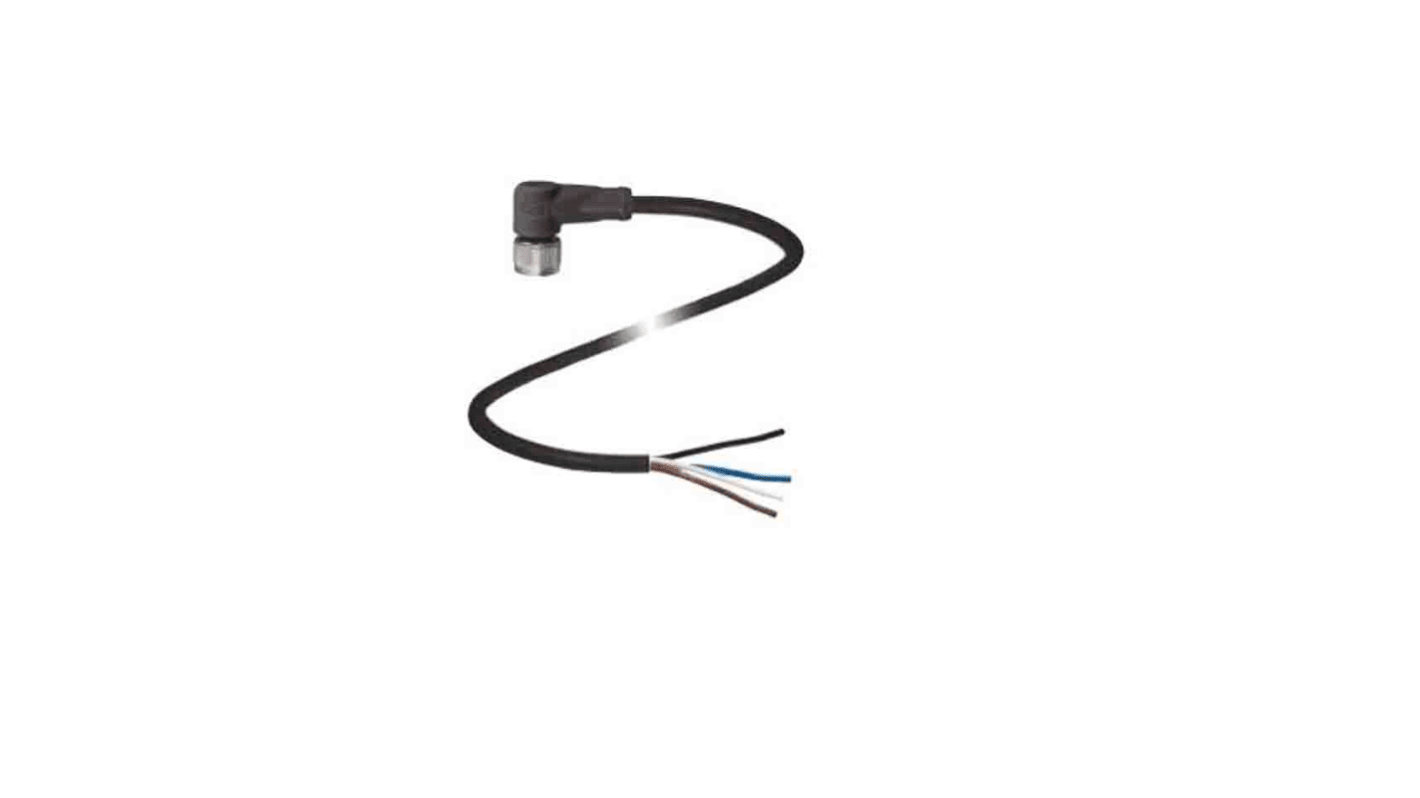

Pepperl + Fuchs Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 203-0999
- Mfr. Part No.:
- V1-W-BK5M-PUR-U
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£16.10
(exc. VAT)
£19.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 15 December 2025
- Plus 24 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.10 |
*price indicative
- RS Stock No.:
- 203-0999
- Mfr. Part No.:
- V1-W-BK5M-PUR-U
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Series | V1-W-BK5M-PUR-U | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Colour | Black | |
| Length | 5m | |
| Sheath Material | PVC | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 | Unterminated | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP67, IP68, IP69 | |
| Insulation Material | PVC | |
| Cable Shape | Multicore | |
| Outer Diameter | 4.8mm | |
| Connector 1 Housing Gender | Female | |
| Minimum Bend Radius | 15 mm | |
| Conductor Material | Copper | |
Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Series V1-W-BK5M-PUR-U | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Black | ||
Length 5m | ||
Sheath Material PVC | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Unterminated | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP67, IP68, IP69 | ||
Insulation Material PVC | ||
Cable Shape Multicore | ||
Outer Diameter 4.8mm | ||
Connector 1 Housing Gender Female | ||
Minimum Bend Radius 15 mm | ||
Conductor Material Copper | ||
- COO (Country of Origin):
- HU
The Pepperl + Fuchs circular connector 4 female pin. It has M12 right angle connector. The product has 250VAC/DC operating supply.
UL Recognized Component
Improved UV resistance
?Knurled nut suitable for tool assembly
?Immunity to vibration, with mechanical latching
?Degree of protection IP67 / IP68 / IP69K
?Gold plated contacts
Improved UV resistance
?Knurled nut suitable for tool assembly
?Immunity to vibration, with mechanical latching
?Degree of protection IP67 / IP68 / IP69K
?Gold plated contacts
