Lumberg Automation Straight Male 4 way M12 to Straight Female 4 way M12 Sensor Actuator Cable, 3m
- RS Stock No.:
- 197-2708
- Mfr. Part No.:
- 41810 RST 4-RKT 4-225/3 M
- Brand:
- Lumberg Automation
1 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£19.94
(exc. VAT)
£23.93
(inc. VAT)
Units | Per unit |
---|---|
1 + | £19.94 |
- RS Stock No.:
- 197-2708
- Mfr. Part No.:
- 41810 RST 4-RKT 4-225/3 M
- Brand:
- Lumberg Automation
Technical Reference
Legislation and Compliance
Product Details

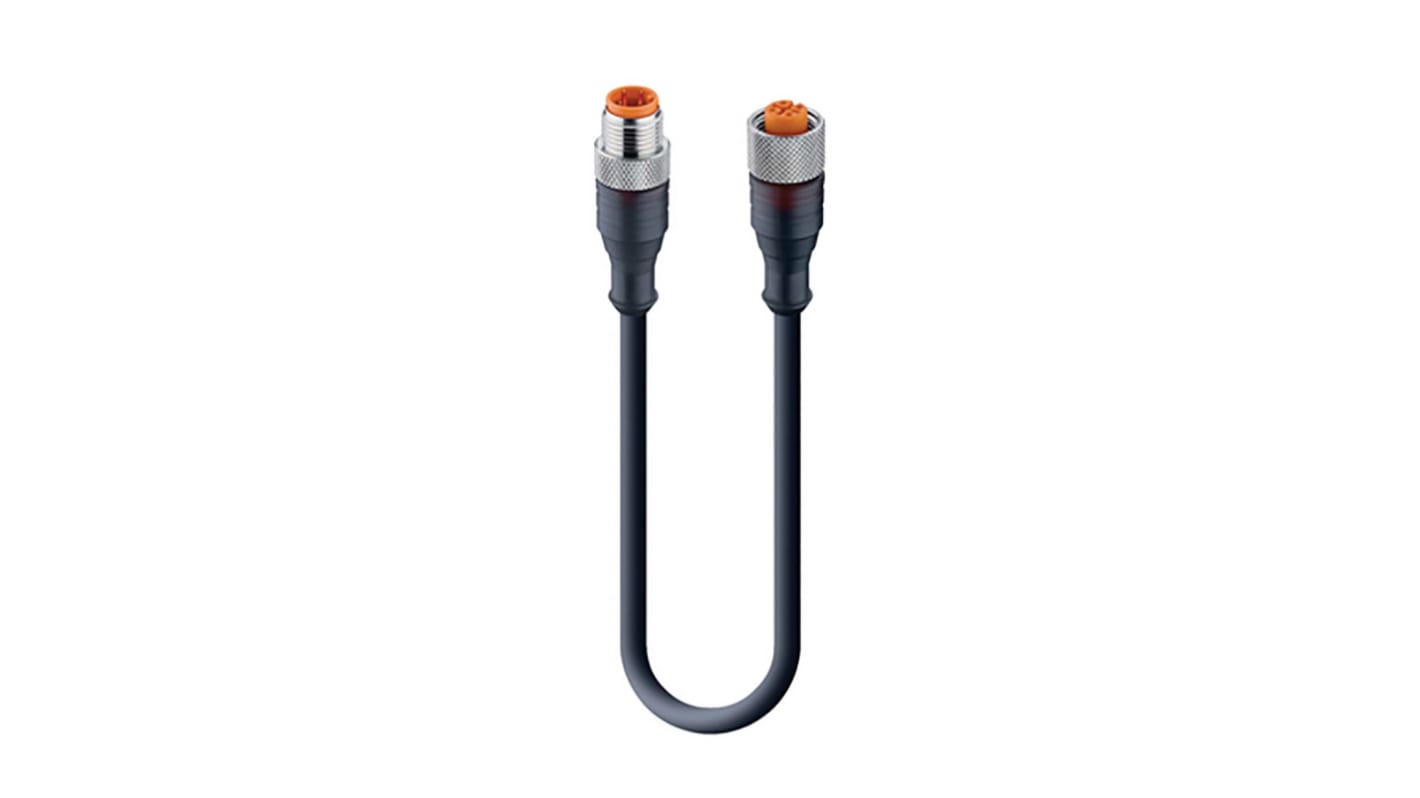

The Belden sensor/actuator double-ended cordset has 4-pin M12 straight male connector to 4-pin M12 straight female. The cable length is 3m. The electrical voltage rating is 230V AC/DC and a current rating is 4A.
A-coded
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C
Body colour is translucent
Contact base material is CuSn
Operating temperature is -40°C to +90°C
Specifications
Attribute | Value |
---|---|
Series | RST |
Cross Sectional Area | 0.34 mm² |
Number of Cores | 4 |
Length | 3m |
Sheath Colour | Black |
Sheath Material | PUR |
Connector 1 Gender | Male |
Connector 1 Number of Contacts | 4 |
Connector 1 | M12 |
Connector 1 Orientation | Straight |
Connector 2 | M12 |
Connector 2 Orientation | Straight |
Connector 2 Gender | Female |
Connector 2 Number of Contacts | 4 |
Connector 2 Housing Gender | Female |
Shielded/Unshielded | Unshielded |
Current Rating | 4 A |
Voltage Rating | 250 V |
IP Rating | IP65, IP67, IP68, IP69 |
Conductor Material | Copper |
Insulation Material | PP |
Cable Shape | Multicore |
Minimum Bend Radius | 5 mm |
Connector 1 Housing Gender | Male |
Outer Diameter | 4.70mm |
Fire Behaviour | Halogen Free |
