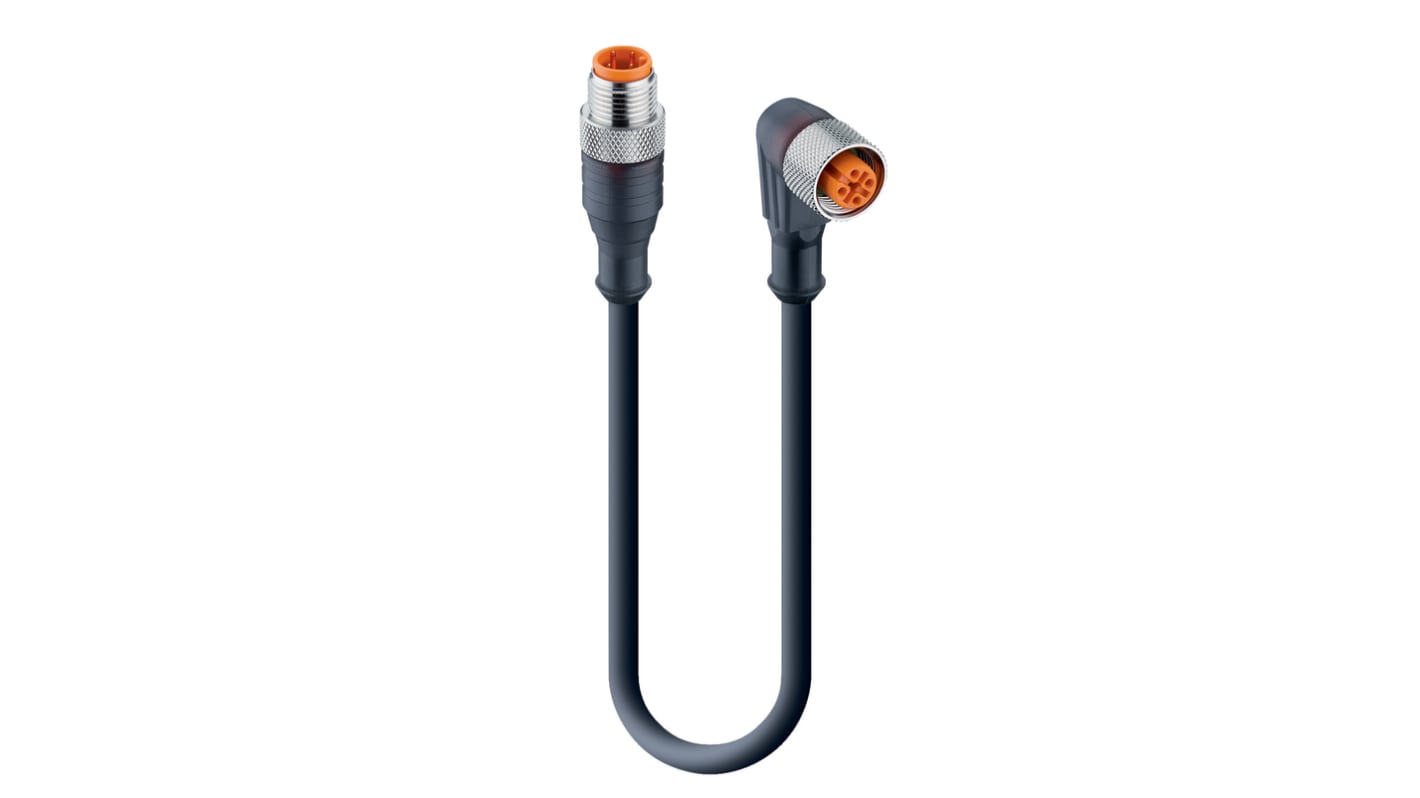

Lumberg Automation Straight Male 4 way M12 to Right Angle Female 4 way M12 Sensor Actuator Cable, 10m
- RS Stock No.:
- 197-2581
- Mfr. Part No.:
- 28050 RST 4-RKWT 4-225/10 M
- Brand:
- Lumberg Automation
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£27.71
(exc. VAT)
£33.25
(inc. VAT)
Units | Per unit |
1 + | £27.71 |
- RS Stock No.:
- 197-2581
- Mfr. Part No.:
- 28050 RST 4-RKWT 4-225/10 M
- Brand:
- Lumberg Automation
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
Lumberg Automation RST Series Sensor Actuator Cable, Bare Copper Conductor, 4A - 28050 RST 4-RKWT 4-225/10 M
This Sensor Actuator Cable by Lumberg Automation is a high-quality solution for automation, electronics, electrical, and mechanical industries. With a copper conductor, 4A current rating, and belonging to the RST series, this cable provides reliable connectivity for various applications.
Features & Benefits
• Copper conductor ensures efficient transmission of signals and power
• Supports a high current flow for demanding applications
• Supports a high current flow for demanding applications
Applications
• Designed for use in automation systems for reliable signal and power transmission.
• Ideal for electronic devices requiring a strong and durable cable connection.
• Ideal for electronic devices requiring a strong and durable cable connection.
Can it handle high current applications?
Yes, the sensor actuator cable with a 4A current rating is suited for high-power applications.
Is it suitable for use in automation systems?
Yes, the cable is designed specifically for automation applications, providing reliable connectivity.
Will it work with electronic devices?
Yes, the sensor actuator cable is ideal for use with various electronic devices requiring a secure connection.
Can it withstand harsh industrial environments?
Yes, the cable is designed to be durable and reliable, even in challenging conditions.
How does the copper conductor benefit the cable?
The copper conductor ensures efficient signal transmission and power flow within the cable.
Specifications
Attribute | Value |
---|---|
Series | RST |
Cross Sectional Area | 0.34 mm² |
Number of Cores | 4 |
Sheath Material | PUR |
Sheath Colour | Black |
Length | 10m |
Connector 1 Gender | Male |
Connector 1 Orientation | Straight |
Connector 1 | M12 |
Connector 1 Number of Contacts | 4 |
Connector 2 Orientation | Right Angle |
Connector 2 Number of Contacts | 4 |
Connector 2 | M12 |
Connector 2 Gender | Female |
Coding | A |
Shielding | Unshielded |
Shielded/Unshielded | Unshielded |
Current Rating | 4 A |
Voltage Rating | 250 V |
IP Rating | IP65, IP67, IP68, IP69K |
Outer Diameter | 4.70mm |
Minimum Operating Temperature | -50°C |
Fire Behaviour | Flame Retardant |
American Wire Gauge | 22 AWG |
Standards Met | IEC 61076-2-101 |
Conductor Resistance | 10 mΩ |
Minimum Bend Radius | 5 x cable diameter |
Conductor Material | Copper |
Insulation Material | PP |
Maximum Operating Temperature | +90°C |
Oil Resistant | No |
Operating Temperature Range | -50 → +90 °C |
- RS Stock No.:
- 197-2581
- Mfr. Part No.:
- 28050 RST 4-RKWT 4-225/10 M
- Brand:
- Lumberg Automation
