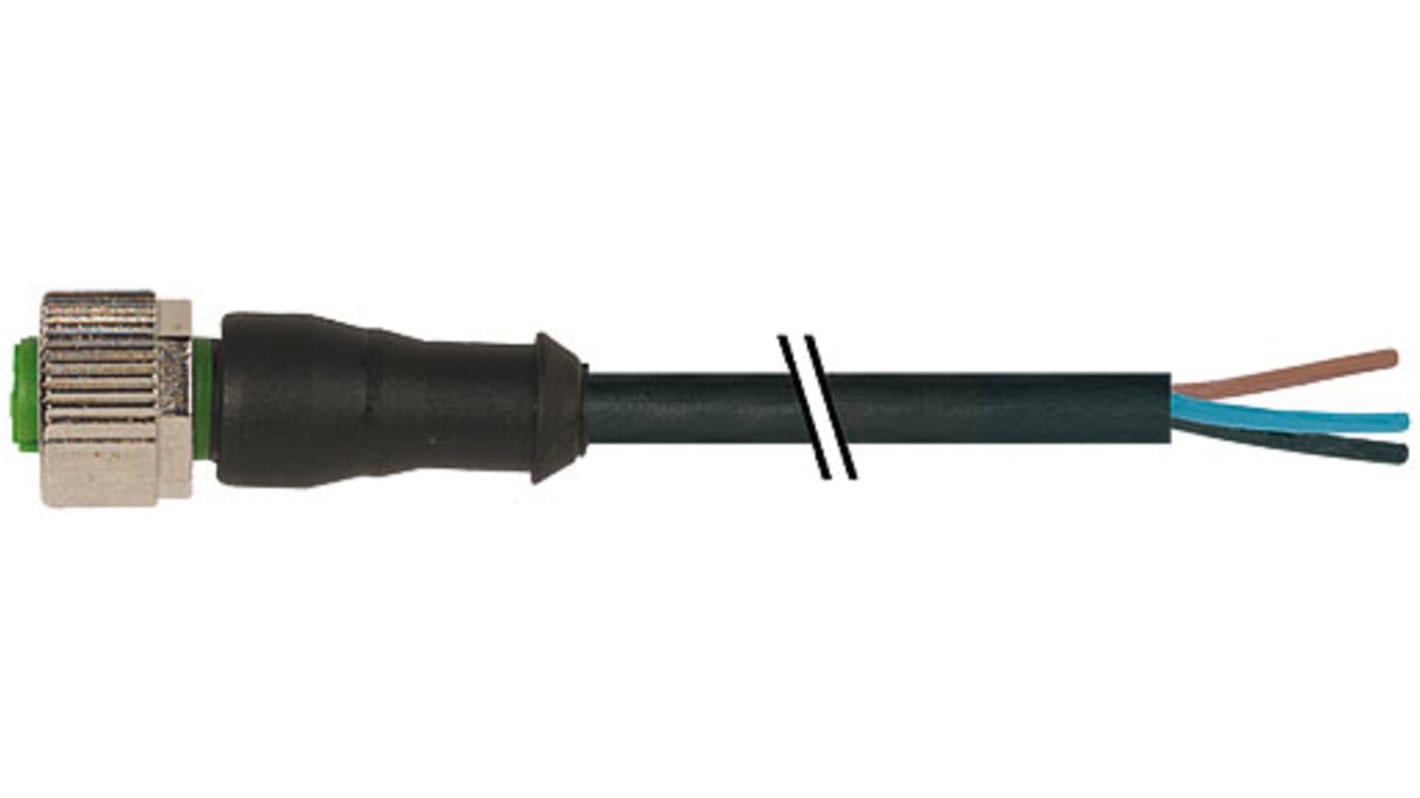

Murrelektronik Limited Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 1.5m

RS Stock No.:: 196-0704
Mfr. Part No.:: 7000-12241-6350150
Brand:: Murrelektronik Limited

Murrelektronik Limited Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 1.5m

Bulk discount available

Price Each

£16.40

(exc. VAT)

£19.68

(inc. VAT)

4 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£16.40
5 - 9	£15.92
10 - 24	£14.92
25 +	£13.10

RS Stock No.:: 196-0704
Mfr. Part No.:: 7000-12241-6350150
Brand:: Murrelektronik Limited

Datasheet - 7000-12241-6350150

Attribute	Value
Series	A-Coded
Cross Sectional Area	0.34 mm²
Number of Cores	5
Length	1.5m
Sheath Material	PUR
Sheath Colour	Black
Connector 1 Orientation	Straight
Connector 1 Gender	Female
Connector 1 Number of Contacts	5
Connector 1	M12
Connector 2	Unterminated
Voltage Rating	30 V ac/dc, 125 V ac/dc
Current Rating	4 A
IP Rating	IP65, IP66K, IP67
Minimum Operating Temperature	-25 (Mobile) °C, -40 (Fixed) °C
Oil Resistant	Yes
Cable Shape	Single Core
Maximum Operating Temperature	+80 (Fixed, +85 °C, Mobile) °C
Core Strands	42 x 0.1 mm
Outer Diameter	4.8mm
Number of Strands	42
Conductor Resistance	57 O/km
Minimum Bend Radius	24 (Fixed) mm, 48 (Moving) mm
Fire Behaviour	Flame Retardant
Size of Strands	0.1 mm
Operating Temperature Range	-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
American Wire Gauge	22 AWG
