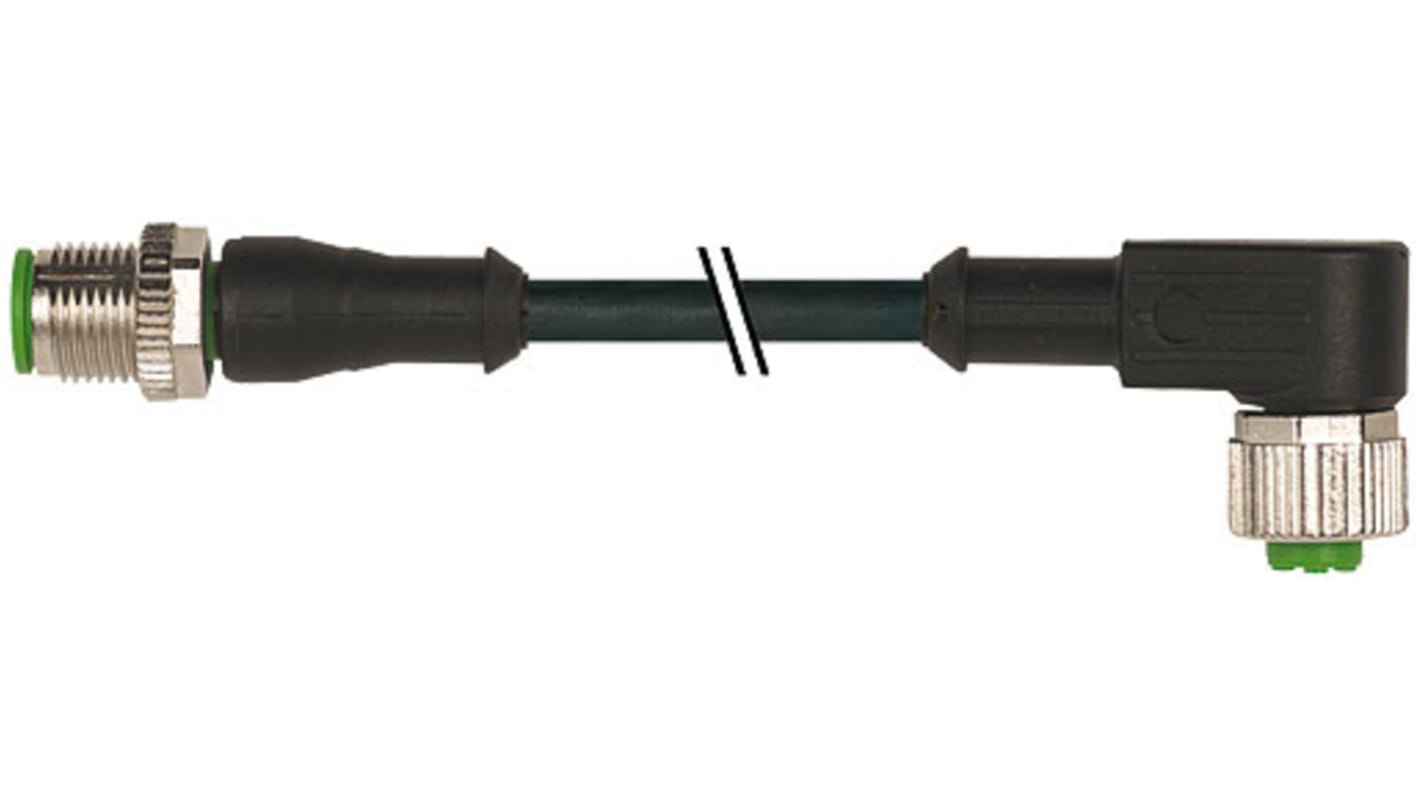

Murrelektronik Limited Straight Male 3 way M12 to Right Angle Female 3 way M12 Sensor Actuator Cable, 600mm

RS Stock No.:: 196-0678
Mfr. Part No.:: 7000-40101-6330060
Brand:: Murrelektronik Limited

Technical Reference

Murrelektronik Limited Straight Male 3 way M12 to Right Angle Female 3 way M12 Sensor Actuator Cable, 600mm

View this category

2 In stock - FREE next working day delivery available

Price Each

£19.53

(exc. VAT)

£23.44

(inc. VAT)

Units	Per unit
1 - 4	£19.53
5 - 9	£18.94
10 - 24	£17.79
25 +	£15.64

RS Stock No.:: 196-0678
Mfr. Part No.:: 7000-40101-6330060
Brand:: Murrelektronik Limited

COO (Country of Origin):: CZ

Attribute	Value
Series	A-Coded
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Material	PUR
Length	600mm
Sheath Colour	Black
Connector 1	M12
Connector 1 Number of Contacts	3
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 2 Orientation	Right Angle
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Number of Contacts	3
Connector 2 Housing Gender	Female
Current Rating	4 A
Voltage Rating	30 V ac/dc, 250 V ac/dc
IP Rating	IP65, IP66K, IP67
Maximum Operating Temperature	+80 (Fixed, +85 °C, Mobile) °C
Size of Strands	0.1 mm
Fire Behaviour	Flame Retardant
Minimum Bend Radius	20.5 (Fixed) mm, 41 (Moving) mm
Cable Shape	Single Core
American Wire Gauge	22 AWG
Conductor Resistance	57 O/km
Minimum Operating Temperature	-25 (Mobile) °C, -40 (Fixed) °C
Oil Resistant	Yes
Core Strands	42 x 0.1 mm
Connector 1 Housing Gender	Male
Number of Strands	42
Operating Temperature Range	-25 → +80 (Mobile) °C, -25 → +85 °C, -40 → +80 (Fixed) °C
Outer Diameter	4.1mm
