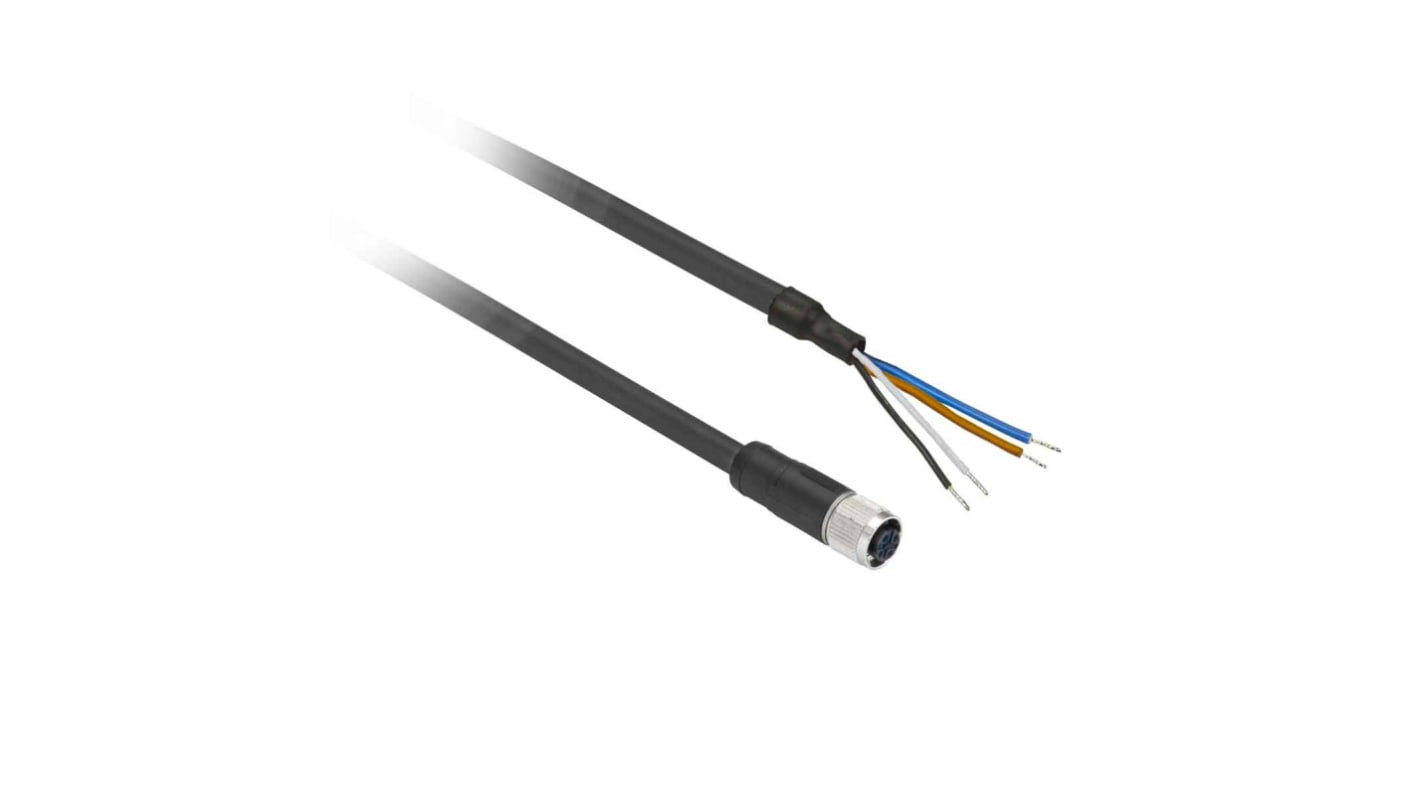

Telemecanique Sensors Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 20m
- RS Stock No.:
- 195-1796
- Mfr. Part No.:
- XZCP1141L20
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£60.90
(exc. VAT)
£73.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £60.90 |
*price indicative
- RS Stock No.:
- 195-1796
- Mfr. Part No.:
- XZCP1141L20
- Brand:
- Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Material | PUR | |
| Length | 20m | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
| Voltage Rating | 250, 300 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP69K | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -5 → +80 (Flexing) °C, -40 → +80 (Static) °C | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 5.2mm | |
| Insulation Material | PUR | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Material PUR | ||
Length 20m | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
Voltage Rating 250, 300 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP69K | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -5 → +80 (Flexing) °C, -40 → +80 (Static) °C | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 5.2mm | ||
Insulation Material PUR | ||
