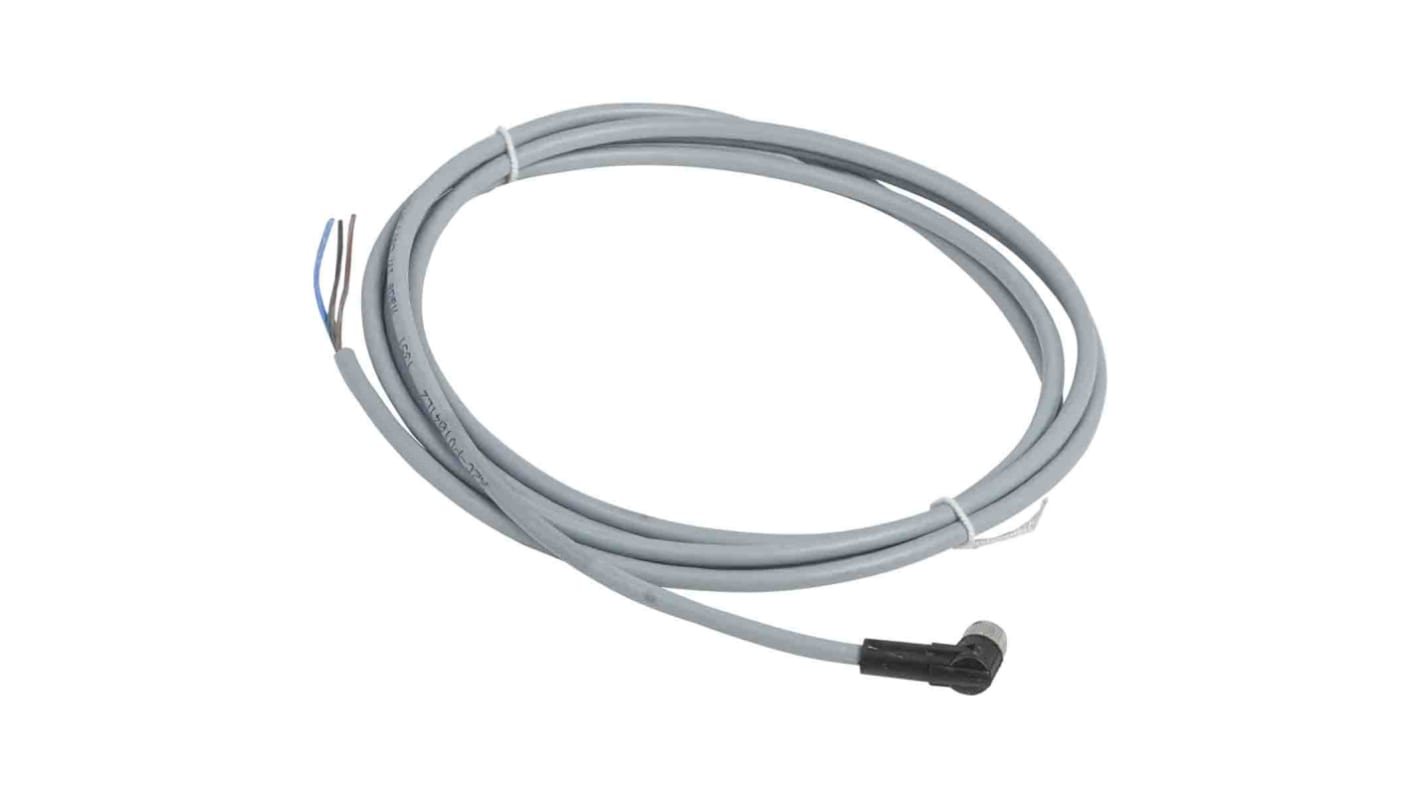

Telemecanique Sensors Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 195-1784
- Mfr. Part No.:
- XZCPV1041L2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£13.03
(exc. VAT)
£15.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.03 |
*price indicative
- RS Stock No.:
- 195-1784
- Mfr. Part No.:
- XZCPV1041L2
- Brand:
- Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 4 | |
| Sheath Material | PVC | |
| Length | 2m | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M8 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Gender | Female | |
| Connector 2 | Unterminated | |
| Voltage Rating | 60, 75 V | |
| Current Rating | 3 A | |
| IP Rating | IP65, IP67 | |
| Operating Temperature Range | -25 → +80 (Static) °C | |
| Outer Diameter | 4.6mm | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 23 AWG | |
| Insulation Material | PVC | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 4 | ||
Sheath Material PVC | ||
Length 2m | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M8 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Gender Female | ||
Connector 2 Unterminated | ||
Voltage Rating 60, 75 V | ||
Current Rating 3 A | ||
IP Rating IP65, IP67 | ||
Operating Temperature Range -25 → +80 (Static) °C | ||
Outer Diameter 4.6mm | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 23 AWG | ||
Insulation Material PVC | ||
