Telemecanique Sensors Female 4 way M12 to Unterminated Sensor Actuator Cable, 15m
- RS Stock No.:
- 181-2631
- Mfr. Part No.:
- XZCP1241L15
- Brand:
- Telemecanique Sensors
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£61.61
(exc. VAT)
£73.93
(inc. VAT)
- RS Stock No.:
- 181-2631
- Mfr. Part No.:
- XZCP1241L15
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Sheath Material | Polyurethane PUR | |
| Sheath Colour | Black | |
| Length | 15m | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
| Current Rating | 4 A | |
| Voltage Rating | 3.6 V | |
| IP Rating | IP65, IP67, IP69K | |
| American Wire Gauge | 22 AWG | |
| Conductor Resistance | 5 mΩ | |
| Insulation Material | PUR | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +80 °C | |
| Connector 1 Housing Gender | Female | |
| Outer Diameter | 5.2mm | |
| Maximum Operating Temperature | +80°C | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Sheath Material Polyurethane PUR | ||
Sheath Colour Black | ||
Length 15m | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
Current Rating 4 A | ||
Voltage Rating 3.6 V | ||
IP Rating IP65, IP67, IP69K | ||
American Wire Gauge 22 AWG | ||
Conductor Resistance 5 mΩ | ||
Insulation Material PUR | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +80 °C | ||
Connector 1 Housing Gender Female | ||
Outer Diameter 5.2mm | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- CZ

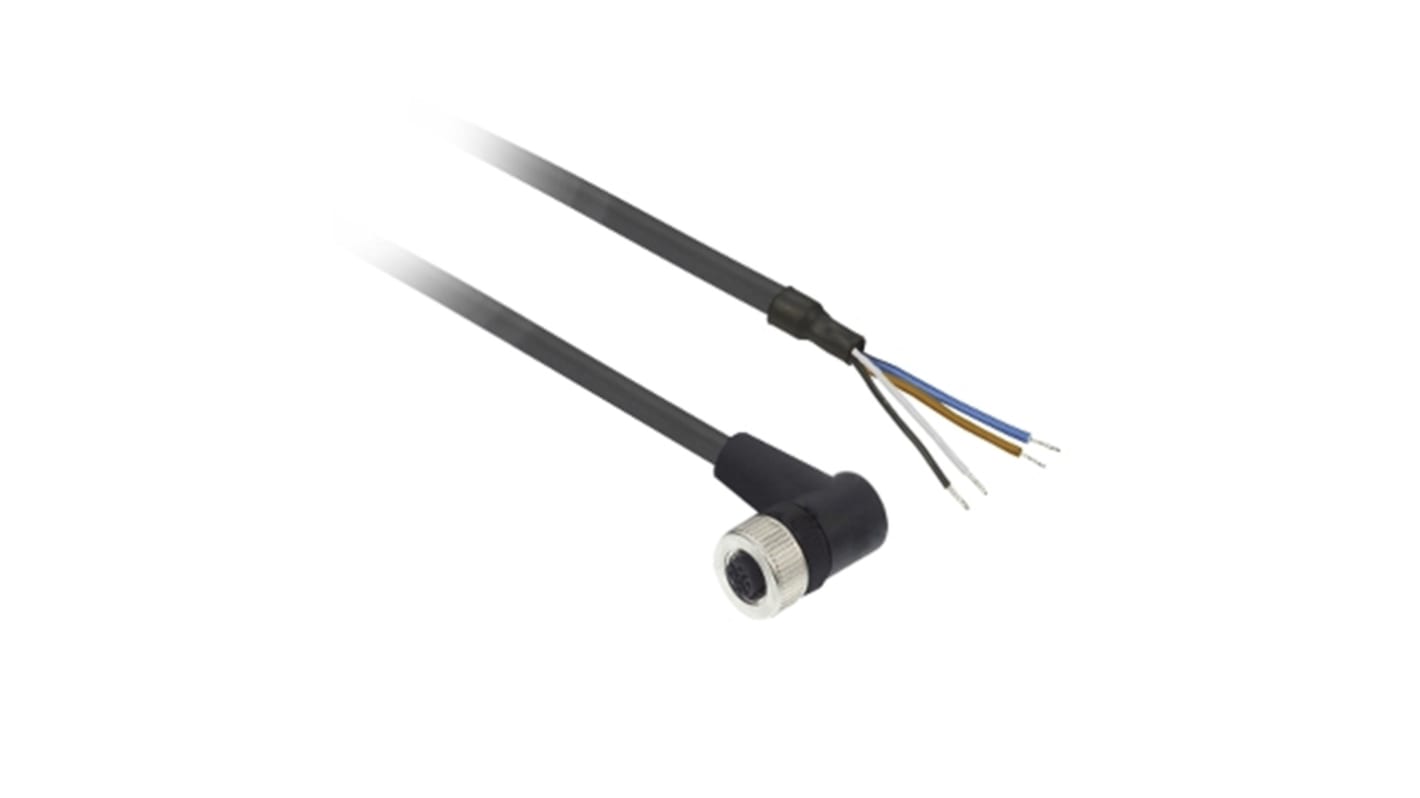

Telemecanique Sensors Sensor Actuator Cable, Right-Angled Connector, 5.2mm OD - XZ Series - XZCP1241L15
Guide your data to its destination with this sensor actuator cable from Telemecanique Sensors. On one end, there's a female M12 connector that's right-angled to prevent stress to the cable if you're running it along a wall. A built-in locking screw keeps it connected in the face of vibrations. The other end is unterminated, so you can add the connector you need to slot it into your system. Nicks and cuts are no issue for the durable PUR sheath, which also shrugs off damage caused by water, oil and mould.
Features & Benefits
• Colour-coded conductors make it easy to identify connections during wiring
• IP69K rating means it's shielded from dust and hot jets of water in demanding applications
• Screw locks in place with a simple 45° turn, so it's easy to secure your connection
• Supports AC and DC voltages to work with standard supplies
• IP69K rating means it's shielded from dust and hot jets of water in demanding applications
• Screw locks in place with a simple 45° turn, so it's easy to secure your connection
• Supports AC and DC voltages to work with standard supplies
Applications
• Manufacturing industry
• Material handling
• Cranes and lifts
• Material handling
• Cranes and lifts
How flexible is this cable?
Its jacket is made from polyurethane, which is highly flexible. The generous 15m length means this cable bends easily to fit your space.
