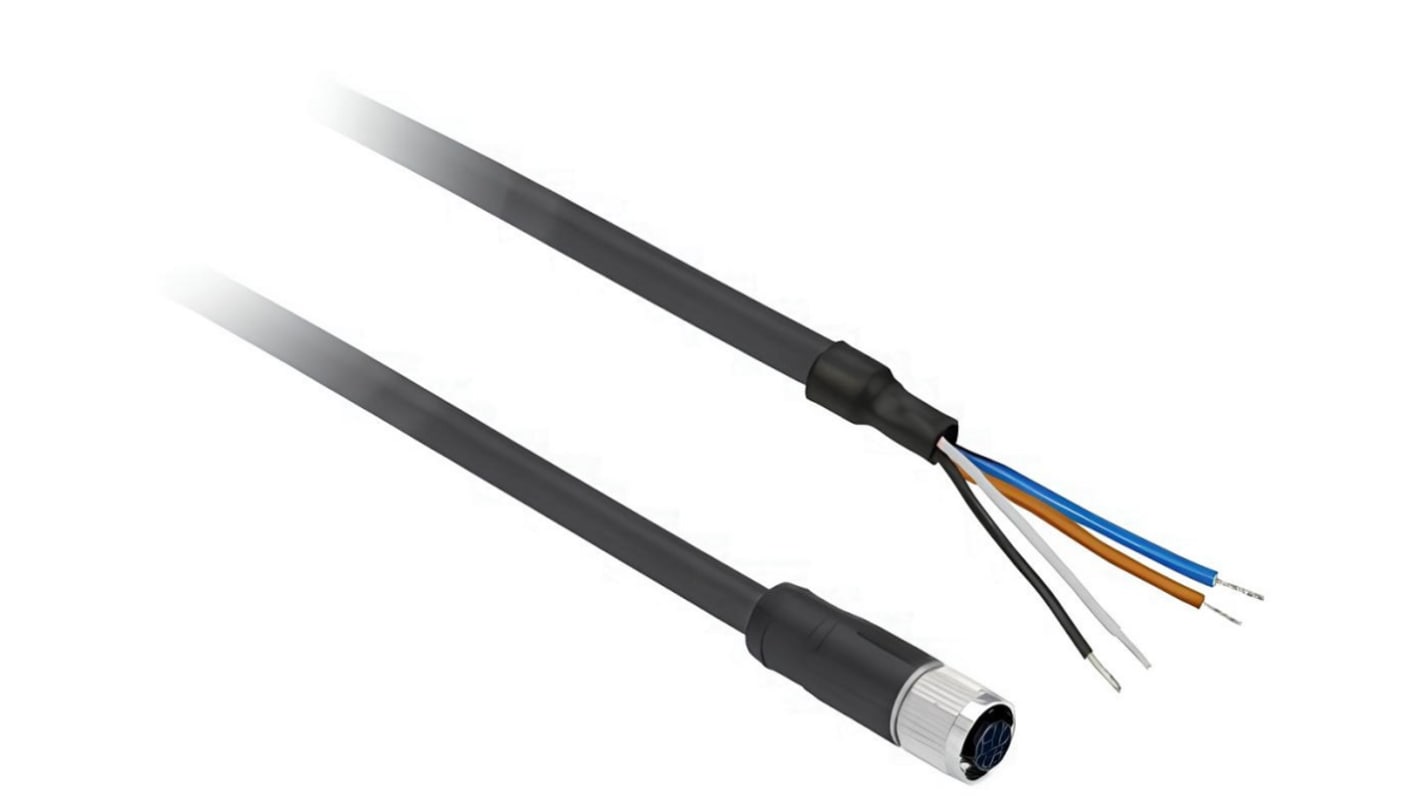

Telemecanique Sensors Straight Female 4 way M12 to M12 Sensor Actuator Cable, 10m
- RS Stock No.:
- 179-9973
- Mfr. Part No.:
- XZCPV1141L10
- Brand:
- Telemecanique Sensors
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£22.02
(exc. VAT)
£26.42
(inc. VAT)
- RS Stock No.:
- 179-9973
- Mfr. Part No.:
- XZCPV1141L10
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Series | OsiSense XM | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Black | |
| Sheath Material | PVC | |
| Length | 10m | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Connector 2 | M12 | |
| Current Rating | 3 A | |
| Voltage Rating | 250 V ac, 300 V dc | |
| IP Rating | IP65, IP67 | |
| Insulation Material | PVC | |
| Maximum Operating Temperature | +80°C | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -25°C | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -25 → +80 °C | |
| Outer Diameter | 4.6mm | |
| Conductor Resistance | 5000 μΩ | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Series OsiSense XM | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Sheath Material PVC | ||
Length 10m | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Connector 2 M12 | ||
Current Rating 3 A | ||
Voltage Rating 250 V ac, 300 V dc | ||
IP Rating IP65, IP67 | ||
Insulation Material PVC | ||
Maximum Operating Temperature +80°C | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -25 → +80 °C | ||
Outer Diameter 4.6mm | ||
Conductor Resistance 5000 μΩ | ||
- COO (Country of Origin):
- CZ
Pre-wired connectors XZ - straight female - M12 - 4 pins - cable PVC 10m
