Bulgin Sensor Actuator Cable, 2m
- RS Stock No.:
- 176-6422
- Mfr. Part No.:
- PXPTPU12FBF08XRJ020PU
- Brand:
- Bulgin
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 176-6422
- Mfr. Part No.:
- PXPTPU12FBF08XRJ020PU
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | PXP | |
| Cross Sectional Area | 0.14 mm² | |
| Number of Cores | 8 | |
| Length | 2m | |
| Sheath Colour | Blue | |
| Sheath Material | PUR | |
| Coding | X | |
| Current Rating | 0.5 A | |
| Voltage Rating | 48 V ac/dc | |
| IP Rating | IP67 | |
| Conductor Material | Brass, Phosphor Bronze | |
| American Wire Gauge | 26 AWG | |
| Conductor Resistance | 5 mΩ | |
| Maximum Operating Temperature | +85°C | |
| Standards Met | EN 61076-2-109 | |
| Cable Shape | Round | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +85 °C | |
| Outer Diameter | 6.2mm | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Series PXP | ||
Cross Sectional Area 0.14 mm² | ||
Number of Cores 8 | ||
Length 2m | ||
Sheath Colour Blue | ||
Sheath Material PUR | ||
Coding X | ||
Current Rating 0.5 A | ||
Voltage Rating 48 V ac/dc | ||
IP Rating IP67 | ||
Conductor Material Brass, Phosphor Bronze | ||
American Wire Gauge 26 AWG | ||
Conductor Resistance 5 mΩ | ||
Maximum Operating Temperature +85°C | ||
Standards Met EN 61076-2-109 | ||
Cable Shape Round | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +85 °C | ||
Outer Diameter 6.2mm | ||
- COO (Country of Origin):
- CN

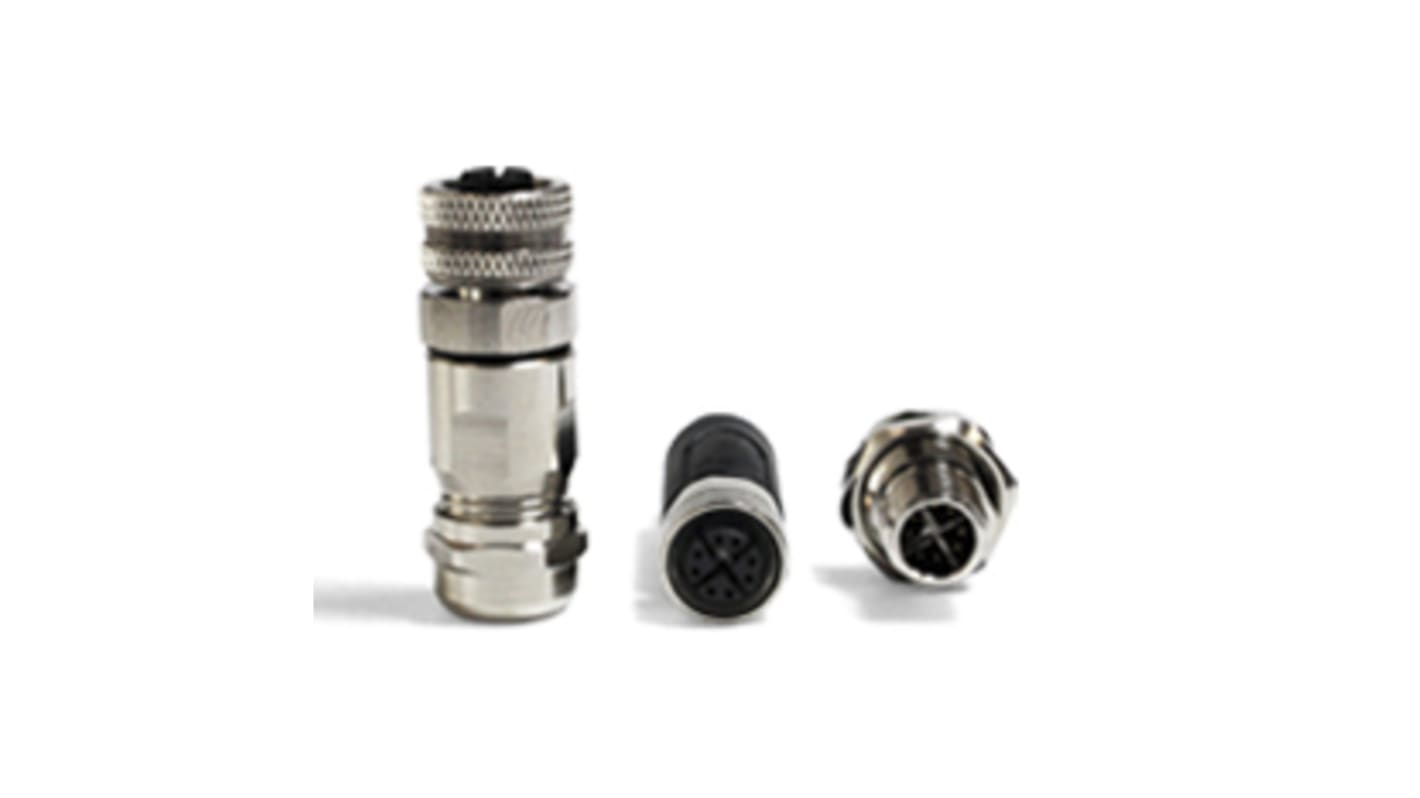

With a high degree of mechanical and electrical stability, Bulgin’s M12 X Coding connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications.
M12 Series X Code TPU Flex Body to RJ45 Overmould Cable Connector 8 Pole Plug Pre-Wired With 2M PU Jacket Cable
M12 Series Overmould FlexBody Connectors
Water and dustproof when mated with compatible connector
Pin or Socket
3, 4, 5, 8, 12 Pole (3,12 Pole are A Code, 4 Pole are choice of A Code or D Code, 5 Pole are choice of A Code or B Code, 8 Pole are choice of A Code or X Code)
PCB Terminals
Choice of mounting nut sizes, depending on part code
Choice of Sealing Caps available separately to maintain IP rating of unmated connectors
Mate with M12 Series In-Line Flex Body and Flex Body Connectors, depending on part code
Water and dustproof when mated with compatible connector
Pin or Socket
3, 4, 5, 8, 12 Pole (3,12 Pole are A Code, 4 Pole are choice of A Code or D Code, 5 Pole are choice of A Code or B Code, 8 Pole are choice of A Code or X Code)
PCB Terminals
Choice of mounting nut sizes, depending on part code
Choice of Sealing Caps available separately to maintain IP rating of unmated connectors
Mate with M12 Series In-Line Flex Body and Flex Body Connectors, depending on part code
