Bulgin Cable assembly, 2m
- RS Stock No.:
- 176-6410
- Mfr. Part No.:
- PXPTPU12FBF08XCL020PU
- Brand:
- Bulgin
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 176-6410
- Mfr. Part No.:
- PXPTPU12FBF08XCL020PU
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | PXP | |
| Cross Sectional Area | 0.14 mm² | |
| Sheath Material | Polyurethane PUR | |
| Length | 2m | |
| Sheath Colour | Blue | |
| Current Rating | 500 mA | |
| Voltage Rating | 48 V ac/dc | |
| IP Rating | IP67 | |
| Operating Temperature Range | -25 → +85 °C | |
| Outer Diameter | 6.2mm | |
| Cable Shape | Round | |
| Standards Met | EN 61076-2-109 | |
| Maximum Operating Temperature | +85°C | |
| Conductor Material | Phosphor Bronze | |
| Minimum Operating Temperature | -25°C | |
| American Wire Gauge | 26 AWG | |
| Conductor Resistance | 5 mΩ | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Series PXP | ||
Cross Sectional Area 0.14 mm² | ||
Sheath Material Polyurethane PUR | ||
Length 2m | ||
Sheath Colour Blue | ||
Current Rating 500 mA | ||
Voltage Rating 48 V ac/dc | ||
IP Rating IP67 | ||
Operating Temperature Range -25 → +85 °C | ||
Outer Diameter 6.2mm | ||
Cable Shape Round | ||
Standards Met EN 61076-2-109 | ||
Maximum Operating Temperature +85°C | ||
Conductor Material Phosphor Bronze | ||
Minimum Operating Temperature -25°C | ||
American Wire Gauge 26 AWG | ||
Conductor Resistance 5 mΩ | ||
- COO (Country of Origin):
- CN
With a high degree of mechanical and electrical stability, Bulgin’s M12 X Coding connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications.
M12 Series X Code TPU Flex Body Overmould Cable Connector 8 Pole Socket Pre-Wired With 2M PU Jacket Cable

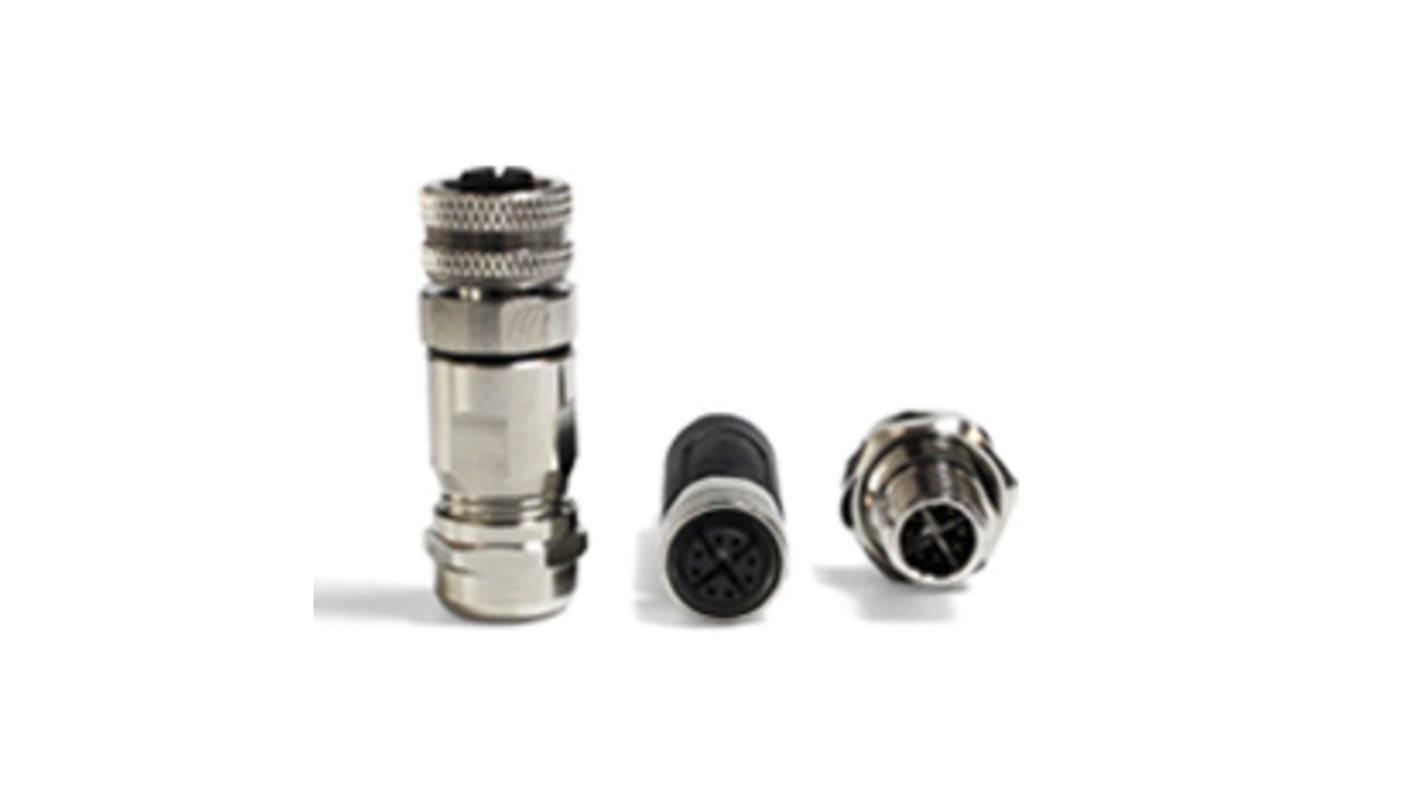

M12 Series Overmould Flex Body Connectors
Water and dustproof when mated with compatible connector
Pin or Socket
3, 4, 5, 8, 12 Pole (3,12 Pole are A Code, 4 Pole are choice of A Code or D Code, 5 Pole are choice of A Code or B Code, 8 Pole are choice of A Code or X Code)
PCB Terminals
Choice of mounting nut sizes, depending on part code
Choice of Sealing Caps available separately to maintain IP rating of unmated connectors
Mate with M12 Series In-Line Flex Body and Flex Body Connectors, depending on part code
Water and dustproof when mated with compatible connector
Pin or Socket
3, 4, 5, 8, 12 Pole (3,12 Pole are A Code, 4 Pole are choice of A Code or D Code, 5 Pole are choice of A Code or B Code, 8 Pole are choice of A Code or X Code)
PCB Terminals
Choice of mounting nut sizes, depending on part code
Choice of Sealing Caps available separately to maintain IP rating of unmated connectors
Mate with M12 Series In-Line Flex Body and Flex Body Connectors, depending on part code
