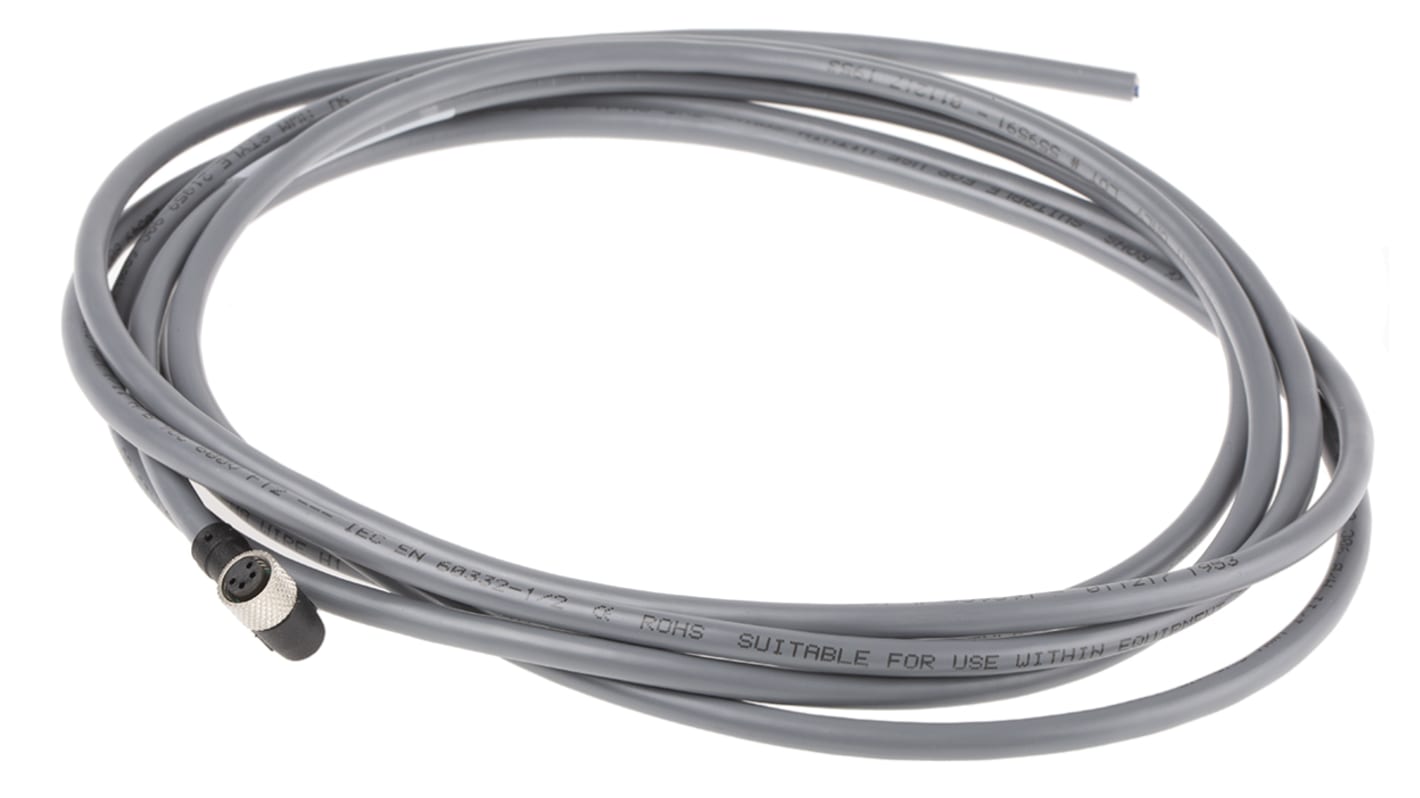

Alpha Wire Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 3m

RS Stock No.:: 174-7568
Mfr. Part No.:: GW0300100 SL357
Brand:: Alpha Wire

Alpha Wire Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 3m

Discontinued product

RS Stock No.:: 174-7568
Mfr. Part No.:: GW0300100 SL357
Brand:: Alpha Wire

Datasheet

Attribute	Value
Series	Alpha Connect
Cross Sectional Area	0.34 mm²
Number of Cores	3
Sheath Colour	Grey
Sheath Material	PUR
Length	3m
Connector 1	M8
Connector 1 Orientation	Right Angle
Connector 1 Gender	Female
Connector 1 Number of Contacts	3
Connector 2	Unterminated
Armoured	No
Shielded/Unshielded	Unshielded
Voltage Rating	600 V ac
Current Rating	2.2 A
IP Rating	IP67, IP68
Size of Strands	36
Fire Behaviour	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper
Insulation Material	MPPE
Minimum Bend Radius	4 x D (Static), 6 x D (Dynamic)
Maximum Operating Temperature	+90°C
Minimum Operating Temperature	-50°C
Cable Shape	Multicore
Oil Resistant	Yes
Standards Met	ANSI/UL 2238, CSA-C22.2 No. 182.3
American Wire Gauge	22 AWG
Outer Diameter	5.08mm
Core Strands	26/36
Connector 1 Housing Gender	Female
Number of Strands	26
Operating Temperature Range	-50 → +90 °C

Alpha Wire Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 3m

Alpha Wire Flexible Cordset with M8 Connector
