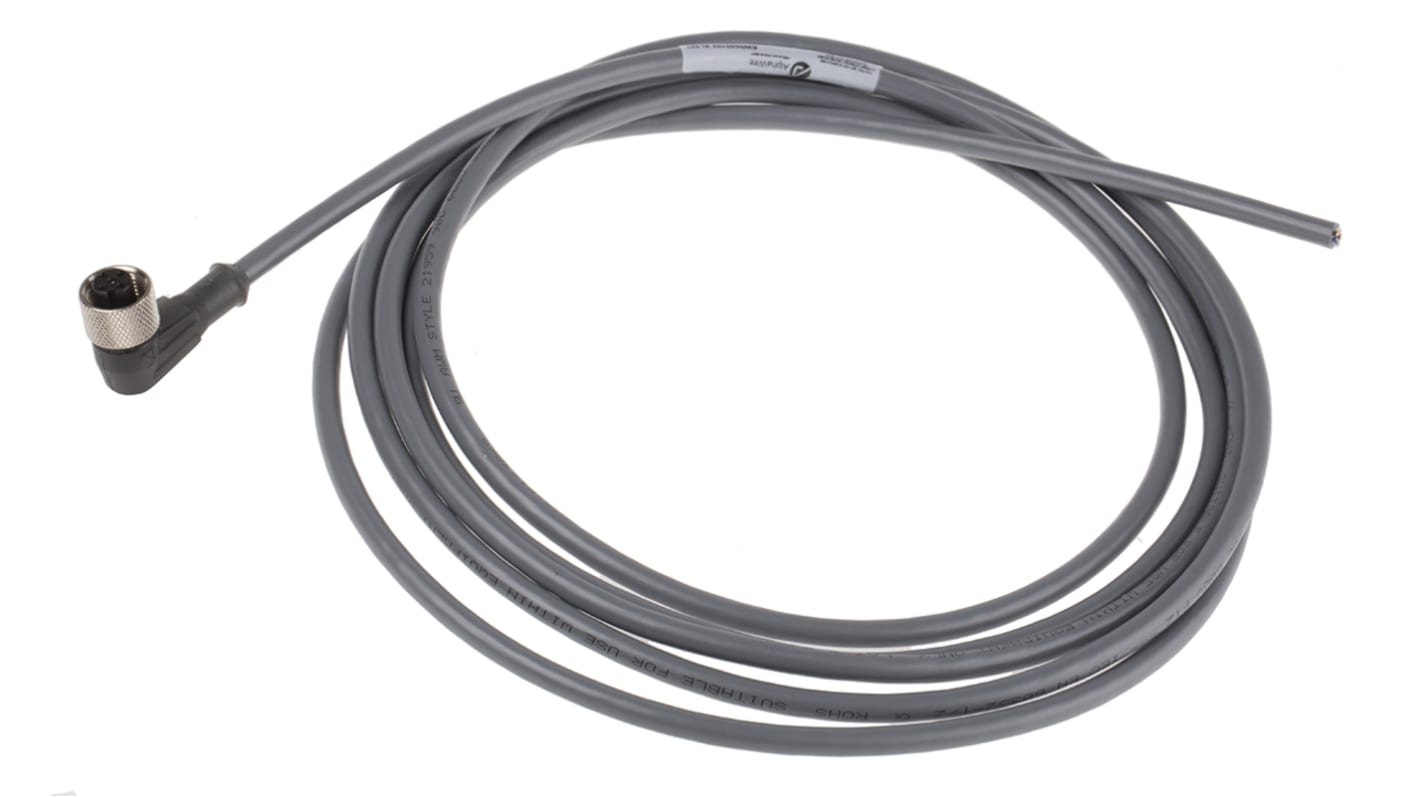

Alpha Wire Sensor Actuator Cable, 3m
- RS Stock No.:
- 174-7552
- Mfr. Part No.:
- AW0800123 SL357
- Brand:
- Alpha Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£25.10
(exc. VAT)
£30.12
(inc. VAT)
- RS Stock No.:
- 174-7552
- Mfr. Part No.:
- AW0800123 SL357
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Alpha Connect | |
| Number of Cores | 8 | |
| Cross Sectional Area | 0.34 mm² | |
| Length | 3m | |
| Sheath Colour | Grey | |
| Sheath Material | PUR | |
| Voltage Rating | 600 V ac | |
| Current Rating | 1.9 A | |
| IP Rating | IP67, IP68 | |
| Number of Strands | 26 | |
| Operating Temperature Range | -40 → +105 °C | |
| Core Strands | 26/36 | |
| Minimum Operating Temperature | -40°C | |
| American Wire Gauge | 22 AWG | |
| Size of Strands | 36 | |
| Insulation Material | MPPE | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +105°C | |
| Standards Met | ANSI/UL 2238, CSA-C22.2 No. 182.3 | |
| Cable Shape | Multicore | |
| Oil Resistant | Yes | |
| Outer Diameter | 6.35mm | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Alpha Connect | ||
Number of Cores 8 | ||
Cross Sectional Area 0.34 mm² | ||
Length 3m | ||
Sheath Colour Grey | ||
Sheath Material PUR | ||
Voltage Rating 600 V ac | ||
Current Rating 1.9 A | ||
IP Rating IP67, IP68 | ||
Number of Strands 26 | ||
Operating Temperature Range -40 → +105 °C | ||
Core Strands 26/36 | ||
Minimum Operating Temperature -40°C | ||
American Wire Gauge 22 AWG | ||
Size of Strands 36 | ||
Insulation Material MPPE | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Conductor Material Copper | ||
Maximum Operating Temperature +105°C | ||
Standards Met ANSI/UL 2238, CSA-C22.2 No. 182.3 | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Outer Diameter 6.35mm | ||
Alpha Wire Flexible Cordsets with M12 Connectors
Flexible cordsets are widely used in industrial automation and factory floor applications. The M12 connector provides a compact size that enables cleaner cable management. These M12 cordsets from Alpha Wire can handle flexible applications up to 5 million flex life cycles. Alpha Wire M12 connector cordsets are available in 300 V to 600 V versions with a range of sheath and insulation materials.
Features and Benefits
Slate zero-halogen Polyurethane jacket
mPPE insulation
22 AWG (26/36) bare copper conductors
Temperature Range: -40 °C to +105 °C
5 million flex life cycles
Bend Radius: 4x static, 5x dynamic
600 V
Approvals
AWM 21959 • UL • IP67 • IP68/NEMA 6P Protection
