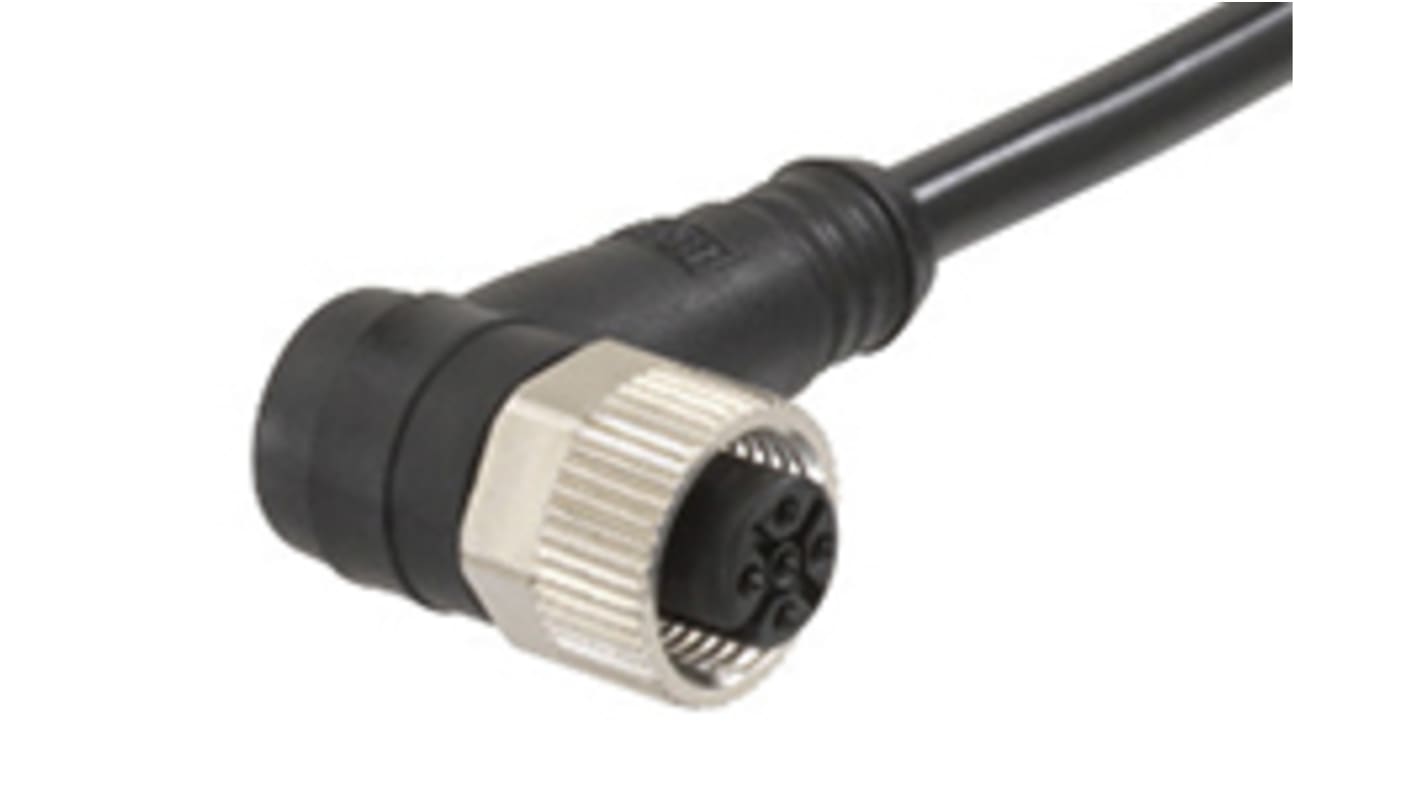

Molex Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m
- RS Stock No.:
- 174-6485
- Mfr. Part No.:
- 120065-2266
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 24 units)*
£589.20
(exc. VAT)
£707.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 24 unit(s) shipping from 27 October 2025
- Plus 999,999,960 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 24 - 96 | £24.55 | £589.20 |
| 120 - 216 | £23.691 | £568.58 |
| 240 + | £23.053 | £553.27 |
*price indicative
- RS Stock No.:
- 174-6485
- Mfr. Part No.:
- 120065-2266
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 120065 | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Length | 10m | |
| Sheath Material | TPU | |
| Sheath Colour | Black | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Cable Shape | Multicore | |
| Standards Met | CSA Certified, UL 21215 | |
| Operating Temperature Range | -25 → +85 °C | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 5.1mm | |
| Connector 1 Housing Gender | Female | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series 120065 | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Length 10m | ||
Sheath Material TPU | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 250 V | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Cable Shape Multicore | ||
Standards Met CSA Certified, UL 21215 | ||
Operating Temperature Range -25 → +85 °C | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 5.1mm | ||
Connector 1 Housing Gender Female | ||
Maximum Operating Temperature +85°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- PL
Micro-Change (M12) Single-Ended Cordset with Knurled Hexnut, 4 Poles, Female (90°) to Pigtail, 22 AWG, Unshielded WSOR Cable, 10.0m (32.81') Length
