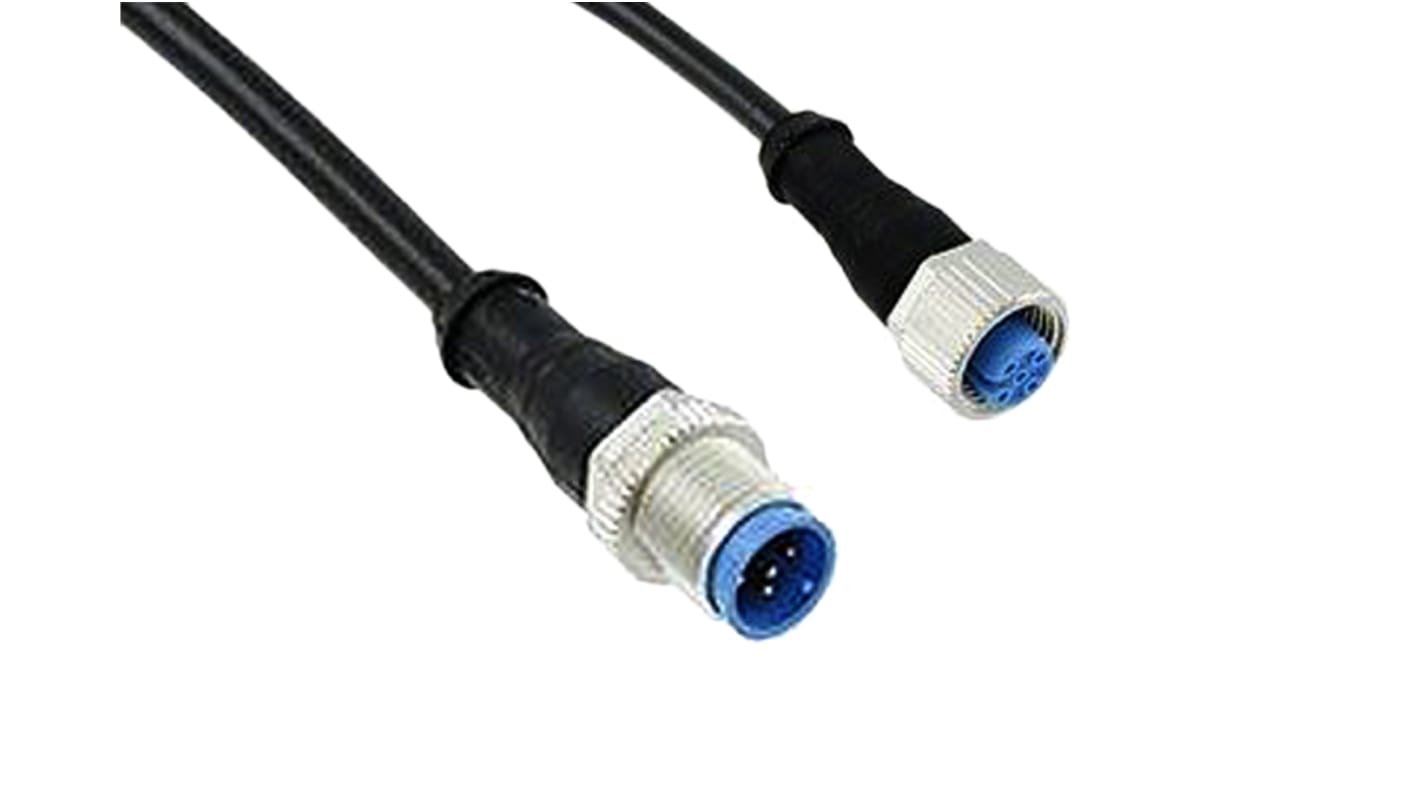

TE Connectivity Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 1.5m

RS Stock No.:: 164-8895
Mfr. Part No.:: 2273114-4
Brand:: TE Connectivity

TE Connectivity Straight Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 1.5m

Discontinued

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

RS Stock No.:: 164-8895
Mfr. Part No.:: 2273114-4
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Cross Sectional Area	0.34 mm²
	Number of Cores	5
	Sheath Colour	Black
	Sheath Material	PUR
	Length	1.5m
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 1 Number of Contacts	5
	Connector 1 Gender	Female
	Connector 2 Gender	Male
	Connector 2 Housing Gender	Male
	Connector 2	M12
	Connector 2 Number of Contacts	5
	Connector 2 Orientation	Straight
	Coding	A
	Shielded/Unshielded	Unshielded
	Current Rating	4 A
	Voltage Rating	125 V ac/dc
	IP Rating	IP65, IP67
	Operating Temperature Range	-50 → +80 °C
	Minimum Operating Temperature	-50°C
	American Wire Gauge	22 AWG
	Outer Diameter	5mm
	Minimum Bend Radius	50 mm
	Maximum Operating Temperature	+80°C
	Connector 1 Housing Gender	Female
	Insulation Material	PP
	Cable Shape	Multicore
	Standards Met	CSA, ELV Compliant, EN 60529, RoHS Compliant, UL

	Select all
	Brand TE Connectivity
	Cross Sectional Area 0.34 mm²
	Number of Cores 5
	Sheath Colour Black
	Sheath Material PUR
	Length 1.5m
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 1 Number of Contacts 5
	Connector 1 Gender Female
	Connector 2 Gender Male
	Connector 2 Housing Gender Male
	Connector 2 M12
	Connector 2 Number of Contacts 5
	Connector 2 Orientation Straight
	Coding A
	Shielded/Unshielded Unshielded
	Current Rating 4 A
	Voltage Rating 125 V ac/dc
	IP Rating IP65, IP67
	Operating Temperature Range -50 → +80 °C
	Minimum Operating Temperature -50°C
	American Wire Gauge 22 AWG
	Outer Diameter 5mm
	Minimum Bend Radius 50 mm
	Maximum Operating Temperature +80°C
	Connector 1 Housing Gender Female
	Insulation Material PP
	Cable Shape Multicore
	Standards Met CSA, ELV Compliant, EN 60529, RoHS Compliant, UL

Datasheet 2273114-4

COO (Country of Origin):: DE

M12 to M12 Connector Cable

From TE Connectivity, the M12 to M12 Connector cable assembly is ideal secure connections in sensor and automation applications. With screw terminal connections that offer a high degree of environmental protection, this patch cord cable assembly is well suited to industrial purposes, and for gender to gender requirements.

The TE Connectivity range of M12 to M12 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.

Features and Benefits:
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth

Applications:
• Sensor and Actuator
• Factory Automation
• I/O Boxes

TE Connectivity Cable Assembly

The TE Connectivity straight M12 to straight M12 connector cable assembly comes with a 5 core 1.5m long cable. This range of connector cable assemblies is an ideal choice for users looking for reliable, high bandwidth data transmission and can be used for secure connections in sensor and automation applications. It has a screw terminal connection that offers a high degree of environmental protection. The "pigtail" wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.

Features and Benefits

• Compact
• Environmental protection
• High bandwidth
• Reliable connection

Applications

• Actuator systems
• Factory automation
• I/O boxes
• Industrial purposes
• Sensor based systems
• Suited for gender to gender requirements

Certifications

• CSA certified
• UL approved
• ELV compliant
• EN 60529
• IP 65 rated
• IP 67 rated when plugged and screwed
