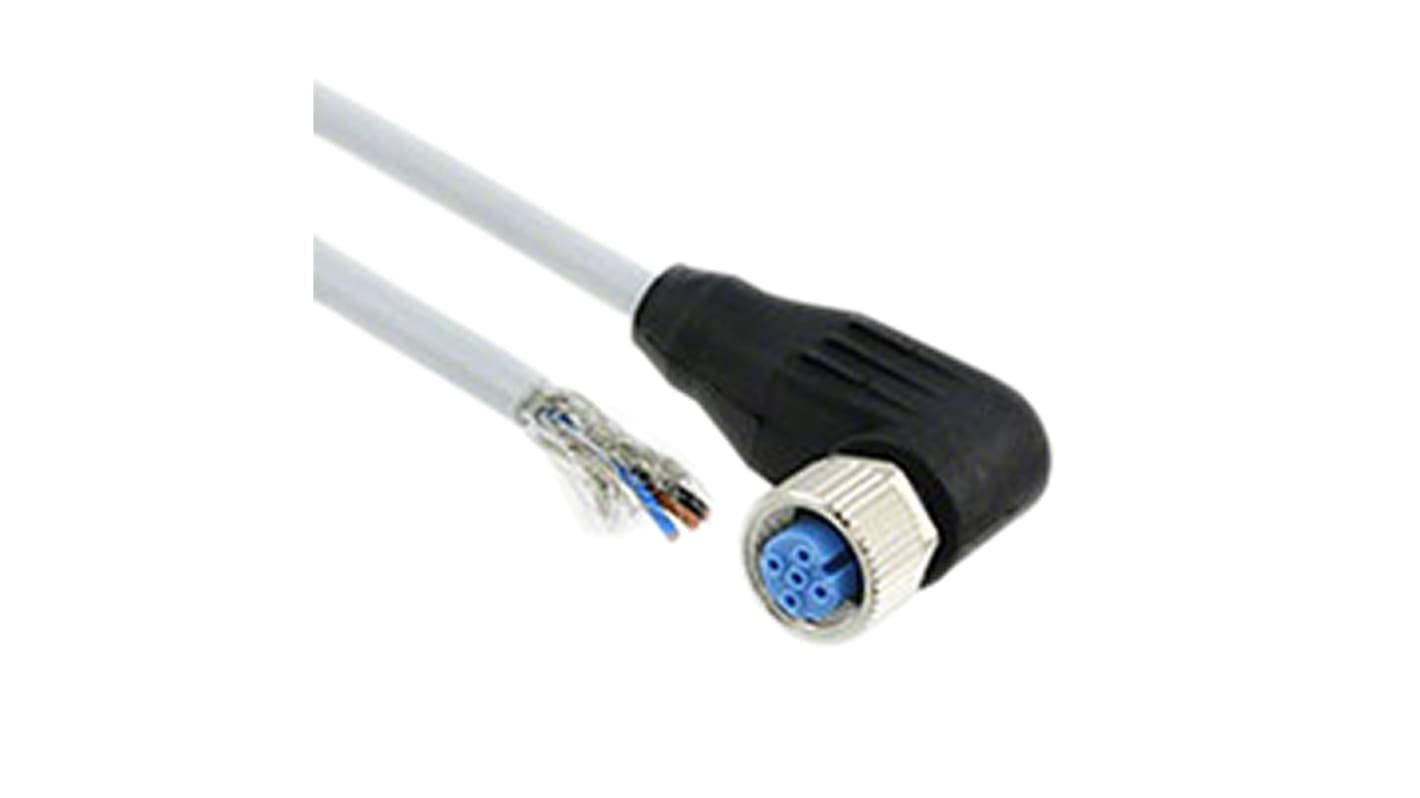

TE Connectivity Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 164-6522
- Mfr. Part No.:
- 1-2273097-1
- Brand:
- TE Connectivity
- RS Stock No.:
- 164-6522
- Mfr. Part No.:
- 1-2273097-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.34 mm² | |
| Length | 1.5m | |
| Sheath Colour | Grey | |
| Sheath Material | PUR | |
| Coding | A | |
| Shielding | Shielded | |
| Current Rating | 4 A | |
| Voltage Rating | 60 V ac/dc | |
| IP Rating | IP65, IP67 | |
| American Wire Gauge | 22 AWG | |
| Maximum Operating Temperature | +80°C | |
| Minimum Bend Radius | 59 mm | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CSA, ELV Compliant, EN 60540, RoHS Compliant, UL | |
| Insulation Material | PVC | |
| Operating Temperature Range | -40 → +80 °C | |
| Outer Diameter | 5.9mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Cores 3 | ||
Cross Sectional Area 0.34 mm² | ||
Length 1.5m | ||
Sheath Colour Grey | ||
Sheath Material PUR | ||
Coding A | ||
Shielding Shielded | ||
Current Rating 4 A | ||
Voltage Rating 60 V ac/dc | ||
IP Rating IP65, IP67 | ||
American Wire Gauge 22 AWG | ||
Maximum Operating Temperature +80°C | ||
Minimum Bend Radius 59 mm | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -40°C | ||
Standards Met CSA, ELV Compliant, EN 60540, RoHS Compliant, UL | ||
Insulation Material PVC | ||
Operating Temperature Range -40 → +80 °C | ||
Outer Diameter 5.9mm | ||
- COO (Country of Origin):
- DE
M12 Pigtail Connectors
From TE Connectivity, the M12 Pigtail Connector cable assembly is ideal for neat and secure connections in sensor and automation applications. With a screw terminal connection that offers a high degree of environmental protection, this cable assembly is well suited to industrial purposes. The “pigtail” wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.
The TE Connectivity range of M12 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.
The TE Connectivity range of M12 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.
Features and Benefits:
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
Applications:
• Sensor and Actuator
• Factory Automation
• I/O Boxes
• Sensor and Actuator
• Factory Automation
• I/O Boxes
