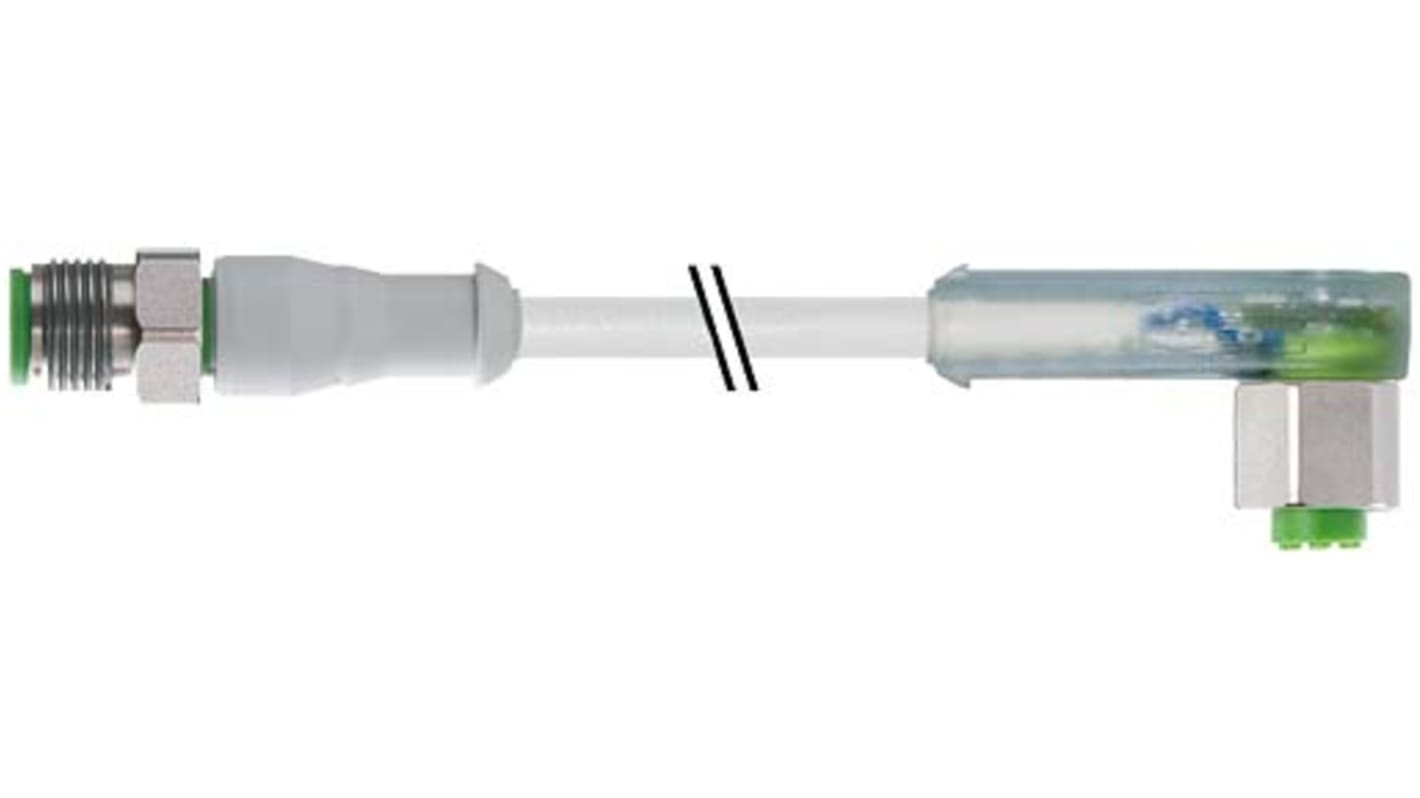

RS PRO Right Angle Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 2m

RS Stock No.:: 154-8099
Brand:: RS PRO

RS PRO Right Angle Female 4 way M12 to Straight Male 4 way M12 Sensor Actuator Cable, 2m

Bulk discount available

Price Each

£32.13

(exc. VAT)

£38.56

(inc. VAT)

9 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£32.13
5 - 9	£31.22
10 +	£30.39

RS Stock No.:: 154-8099
Brand:: RS PRO

M12 food and beverage cable assembly datasheet

Cables and Wiring Management from RS PRO

Shop from our extensive range of over 9,400 cable and wiring products.

Shop now

Attribute	Value
Number of Cores	4
Cross Sectional Area	0.25 mm²
Sheath Colour	Grey
Length	2m
Sheath Material	PUR
Connector 1	M12
Connector 1 Orientation	Right Angle
Connector 1 Gender	Female
Connector 1 Number of Contacts	4
Connector 2	M12
Connector 2 Number of Contacts	4
Connector 2 Housing Gender	Male
Connector 2 Orientation	Straight
Connector 2 Gender	Male
Shielded/Unshielded	Unshielded
Voltage Rating	24 V dc
Current Rating	4 A
IP Rating	IP65, IP66K, IP67, IP68
Standards Met	CSA, EN 60529, UL
Maximum Operating Temperature	+85°C
Operating Temperature Range	-25 → +85 °C
American Wire Gauge	24 AWG
Conductor Resistance	60 Ω/km
Insulation Material	PVC
Core Strands	19/0.15 mm
Number of Strands	19
Fire Behaviour	Flame Retardant
Connector 1 Housing Gender	Female
Cable Shape	Multicore
Oil Resistant	Yes
Minimum Operating Temperature	-25°C
Size of Strands	0.15 mm
Conductor Material	Copper
Minimum Bend Radius	10 x 5 mm, 5 x 5 mm
Outer Diameter	5mm
