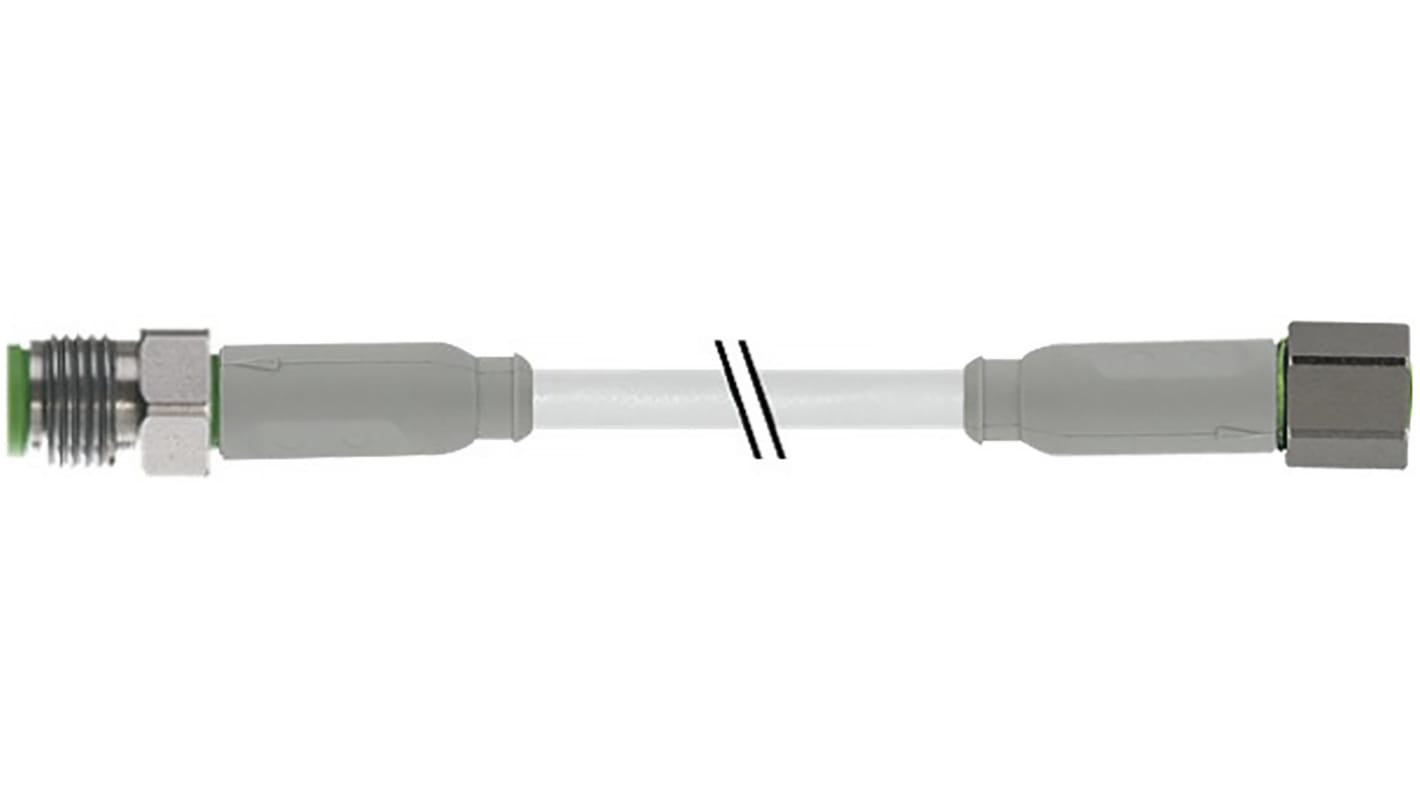

RS PRO Straight Female 3 way M8 to Straight Male 3 way M8 Sensor Actuator Cable, 2m
- RS Stock No.:
- 154-7771
- Distrelec Article No.:
- 304-02-700
- Brand:
- RS PRO
Subtotal (1 unit)*
£50.23
(exc. VAT)
£60.28
(inc. VAT)
FREE delivery for orders over £50.00
- 53 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £50.23 |
| 5 - 9 | £45.21 |
| 10 + | £42.70 |
*price indicative
- RS Stock No.:
- 154-7771
- Distrelec Article No.:
- 304-02-700
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 3 | |
| Length | 2m | |
| Sheath Material | PUR | |
| Sheath Colour | Grey | |
| Connector 1 | M8 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 Gender | Female | |
| Connector 2 Orientation | Straight | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Number of Contacts | 3 | |
| Connector 2 Gender | Male | |
| Connector 2 | M8 | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 60 V ac/dc | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67 | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +85 °C | |
| Connector 1 Housing Gender | Female | |
| Maximum Operating Temperature | +85°C | |
| Minimum Bend Radius | 10 x 4.5 mm | |
| Insulation Material | PVC | |
| American Wire Gauge | 24 AWG | |
| Outer Diameter | 4.5mm | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | CSA, UL | |
| Cable Shape | Multicore | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 3 | ||
Length 2m | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Connector 1 M8 | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 Housing Gender Male | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 Gender Male | ||
Connector 2 M8 | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 60 V ac/dc | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +85 °C | ||
Connector 1 Housing Gender Female | ||
Maximum Operating Temperature +85°C | ||
Minimum Bend Radius 10 x 4.5 mm | ||
Insulation Material PVC | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 4.5mm | ||
Fire Behaviour Flame Retardant | ||
Standards Met CSA, UL | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- DE
RS Pro Food and Beverage Cable Assembly
The plastic housings have a stainless steel locking thread that ensures minimal vibration, the mated connectors also ensure a high degree of environmental protection against liquids and dust ingress.
The PVC cable jacket has excellent resistance to oil, gasoline and chemicals, meaning the cable assembly can be used in more challenging environments.
All of these factors combine to make a dependable and versatile cable assembly that is ideal for use in machinery in food safe environments, or in conditions where hygiene is a high priority.
• CSA and Eurolab approved
• Self-Securing Screw Thread
• Flame Retardant UL 1581 VW1 / CSA FT1FT1
